21
Quick Setup Connections
By connecting a Digital TV Receiver, high definition pictures can be displayed on your TV in
their digital form.
DIGITAL-IN
ATS C
/ DIGITAL CABLE IN
CABLE CARD
TV Rear Panel
INPUT 3 INPUT 2
INPUT 1 COMPONENT
DIGITAL IN AUDIO
AUDIO OUT
R -
A
UDIO -
L
Y
Pr Pb
VIDEO
R -
AUD
IO -
L
R - AUDIO -
L
R L
DTV Decoder
LR
AUDIO OUTDIGITAL OUT
HDMI to DVI Cable
After the connections have been made,
tighten the screw to secure the cables.
TV Rear Panel

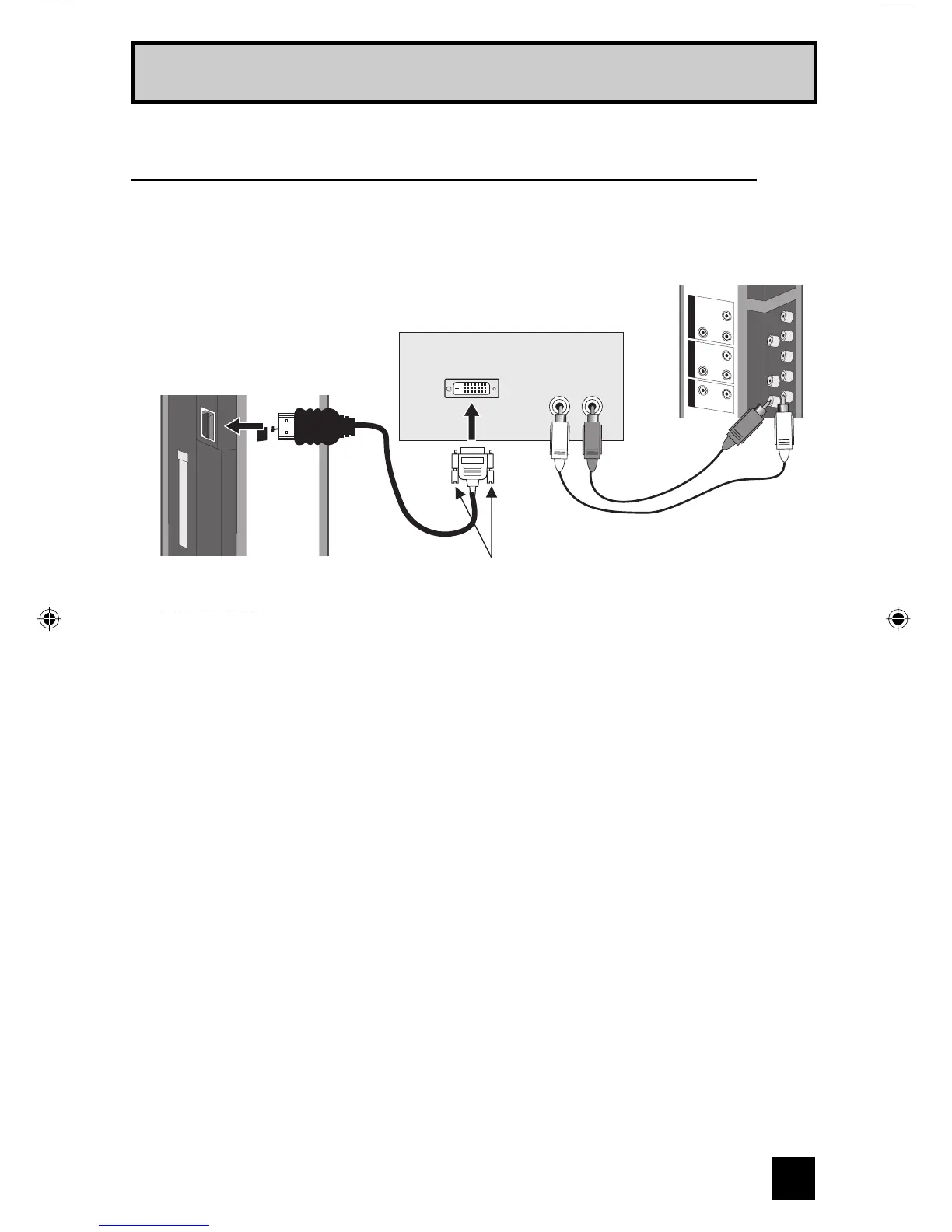

Connecting to a Digital TV Receiver
1) Connect the HDMI to DVI Cable from the DIGITAL OUT on the back of your DTV decoder, to
the DIGITAL-IN on the back of your television.
2) Connect a red cable from the DTV decoder RIGHT AUDIO OUT, to the RIGHT AUDIO
DIGITAL-IN on the back of your television.
3) Connect a white cable from the DTV decoder LEFT AUDIO OUT, to the LEFT AUDIO
DIGITAL-IN on the back of your television.
• The digital-in terminal is not compatible with the picture signal of a personal computer.
• Use a HDMI to DVI cable (commercially available) in order to digitally connect the television
with a DTV decoder.
Notes:
• If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance
may be slightly shifted. Access the “DIGITAL-IN” in the initial setup menu to adjust it. (Refer
to page 52.)
• When you do the above connection, set DIGITAL-IN AUDIO in the Initial Setup menu to
ANALOG. See "DIGITAL-IN AUDIO", page 52.
LCT1881-001B-A ENG e 21 5/20/05, 4:29:13 PM
