Quick Setup Connections
Connecting an i.LINK compatible device to the back of
your television
i.LINK is a digital serial interface that allows devices equipped with an i.LINK connector to
exchange digital video signals, digital audio signals and device control signals bi-directionally
over a single cable. (For example, a JVC D-VHS VCR).
i.LINK refers to the IEEE1394-1995 industry specification and extensions thereof. The logo
is used for products compliant with the i.LINK standard.
This projection television uses a four-pin i.LINK connector to input and output MPEG2 video
signals, audio signals and control signals.
i.LINK
IN/OUT
S400(TS)
i.LINK Compatible Device
TV Rear Panel
OPTICAL OUT
Digital Audio

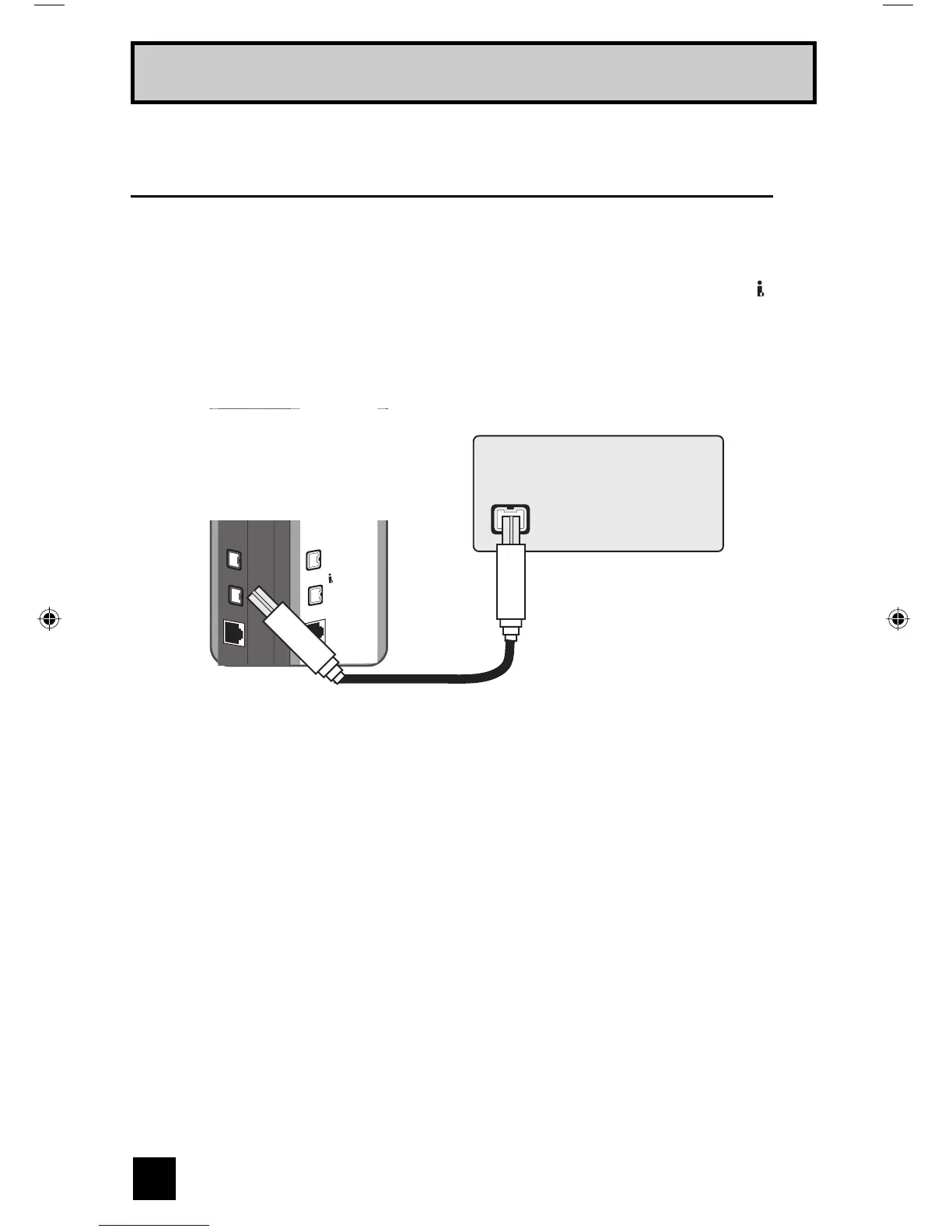

1) Connect the i.LINK cable from underneath the TV to the back of the i.LINK compatible
device.
Notes:
• Use only the S400 i.LINK cable when connection your devices.
• See page 74 on how to select the i.LINK device.
• Refer to your owners manual on using your i.LINK device.
• When recording or playing back video with an i.LINK device, if you perform the Auto Tuner
Setup, the video signal you are recording or playing back may stop or you may not be able
to perform the Digital Auto Tuner Setup.
• Your television can connect with i.LINK D-VHS decks and HD-Camcorders (JVC brand only).
If you connect other brand devices, with i.LINK cable, they will not work.
• It can play only the recorded contents in Digital Mode.
• Use only tapes bearing the DVHS (SVHS) mark for recording.
