19

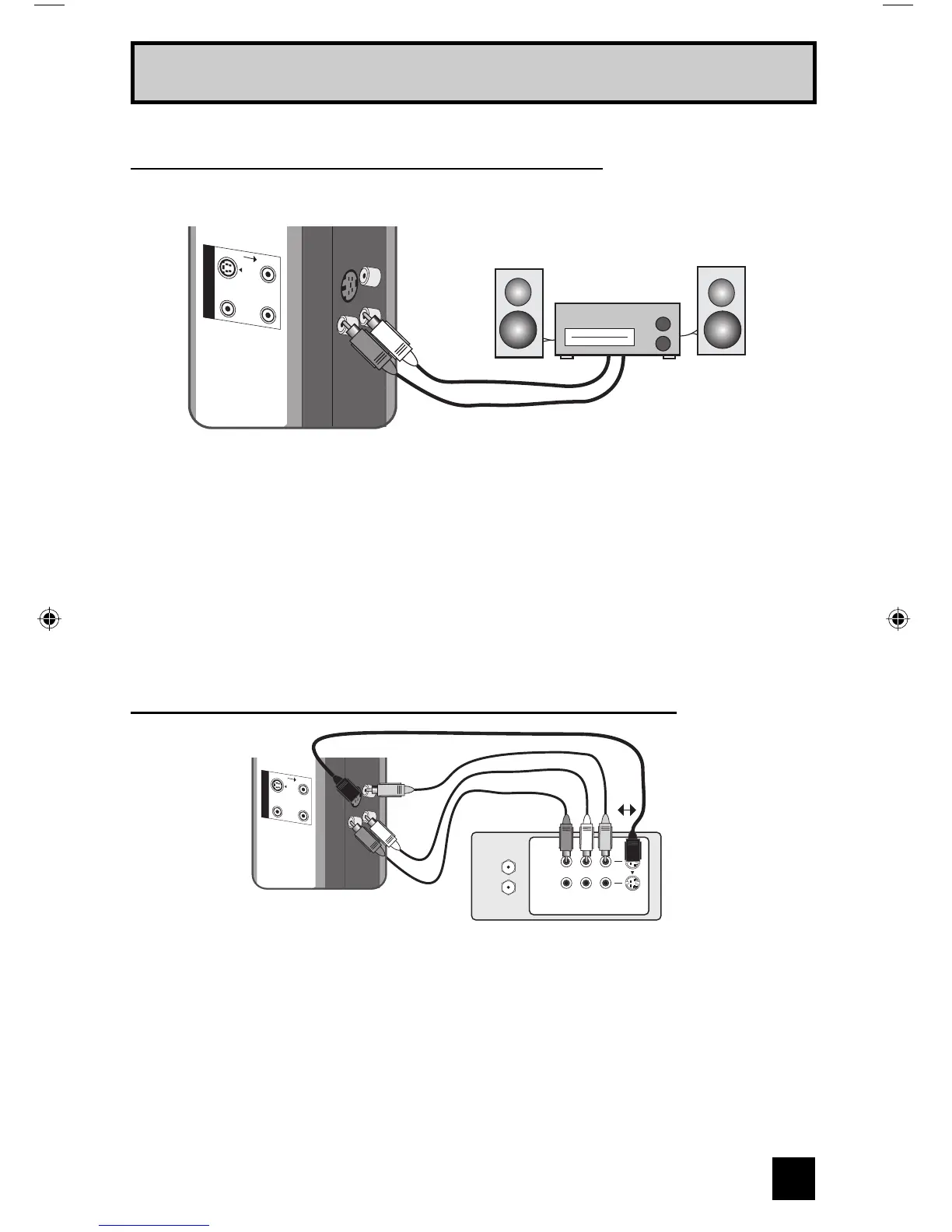

Quick Setup Connections
AUDIO OUT
R L
MONITOR / REC OUT
S-VIDEO
VIDEO
R -
AUDIO -
L
OVER
TV Rear Panel
Speake
Speaker
Amplifier
1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the
LEFT AUDIO INPUT on the amplifier.
2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the
RIGHT AUDIO INPUT on the amplifier.
Notes:
• Refer to your amplifier’s manual for more information.
• You can use AUDIO OUTPUT for your home theater system.
• DVI analog sound can not be outputted.
Connecting to an External Amplifier
Connecting to Monitor/Recording Output Terminal
Notes:
• When you make this connection, set the Video-1 Monitor Out menu to ON. See page 51.
• If you are receiving ATSC/Digital Cable signal, it can be outputted to the S-Video output
terminal or Video (composite video) terminal.
• If you are receiving Analog TV signal, it can not be outputted to the S-Video output terminal.
• No signal will be outputted through the S-Video output terminal when you are not viewing
images coming from the composite video input terminal.
• No signal will be outputted through the Monitor/Recording output terminal when you are
viewing images from the component video input.
VCR
TV Rear Panel
OR
IN
OUT
R L V
IN
OUT
AUDIO OUT
R L
MONITOR / REC OUT
S-VIDEO
VIDEO
R - AUDIO - L
OVER
LCT1881-001B-A ENG e 19 5/20/05, 4:29:12 PM
