6

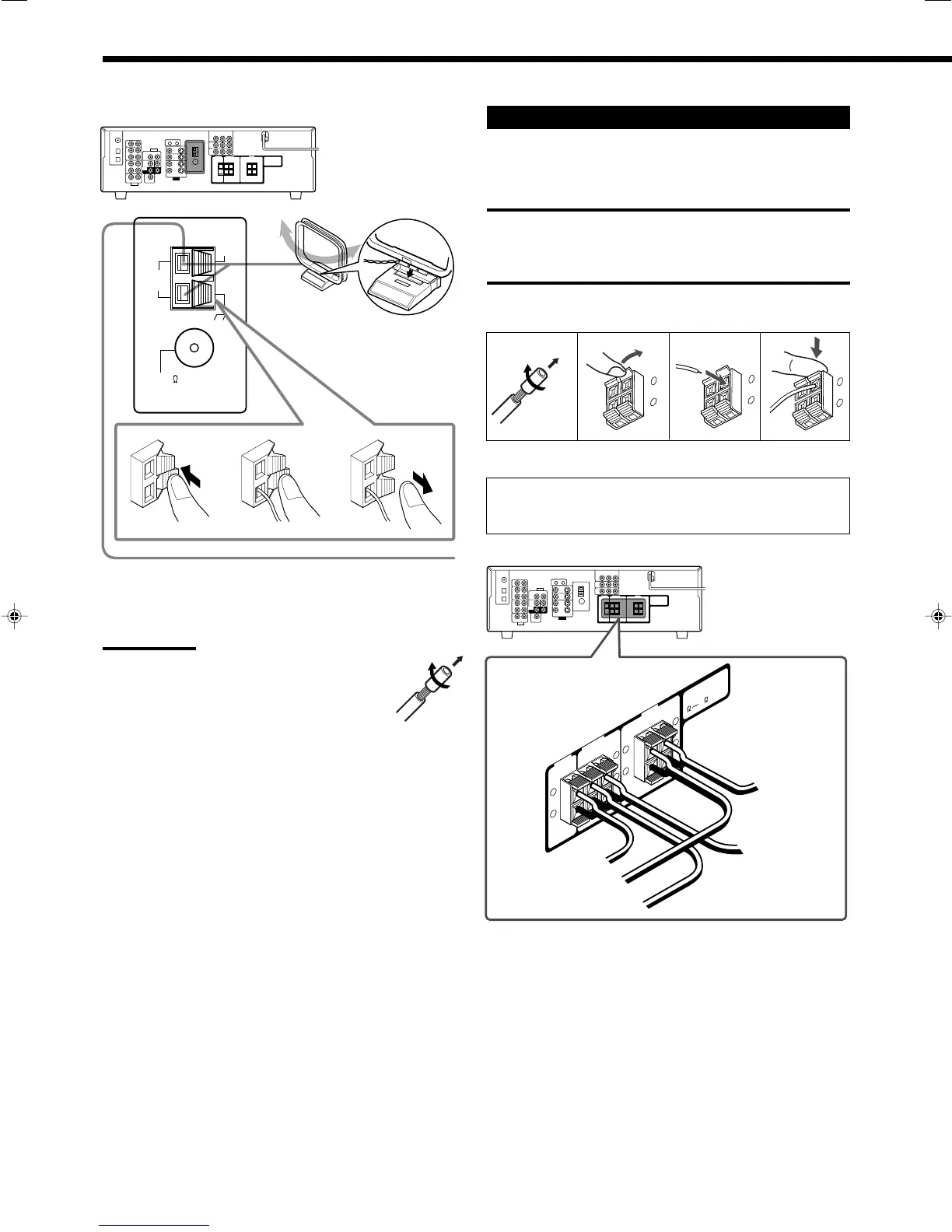

AM (MW) antenna connections
Turn the loop until you have the best reception.
Notes:
• If the AM (MW) loop antenna wire is covered with
vinyl, remove the vinyl by twisting it as illustrated.
• Make sure the antenna conductors do not touch any
other terminals, connecting cords and power cord.
This could cause poor reception.
• If reception is poor, connect an outdoor single vinyl-covered wire
(not supplied) to the AM EXT terminal. Keep the AM (MW) loop
antenna connected.
RIGHT
LEFT
+
–
RIGHT
LEFT
+
–
1
2
3
4
AM (MW) Loop
Antenna (supplied)
Outdoor single vinyl-covered wire (not supplied)
Getting Started
AM
LOOP
AM
EXT
ANTENNA
COAXIAL
FM 75
1
23
Connecting the Speakers and Subwoofer
You can connect five speakers (a pair of front speakers, a center
speaker, and a pair of surround speakers) and a subwoofer.
CAUTIONS:
• Use only the speakers of the SPEAKER IMPEDANCE
indicated by the speaker terminals.
• Do not connect more than one speaker to each speaker
terminal.
Connecting the speakers
For each speaker (except for a subwoofer), connect the (+) and
(–) terminals on the rear panel to the (+) and (–) terminals
marked on the speakers.
Snap the tabs on the loop
into the slots of the base
to assemble the AM
(MW) loop antenna.
CENTER
SPEAKER
SURROUND
SPEAKERS
RIGHT
LEFT
FRONT
SPEAKERS
RIGHT
LEFT
CAUTION :
SPEAKER IMPEDANCE
8
16
+
–
+
–
+
–
+
–
To center speaker
To right front speaker
To left surround
speaker
To left
front speaker
To right surround speaker
