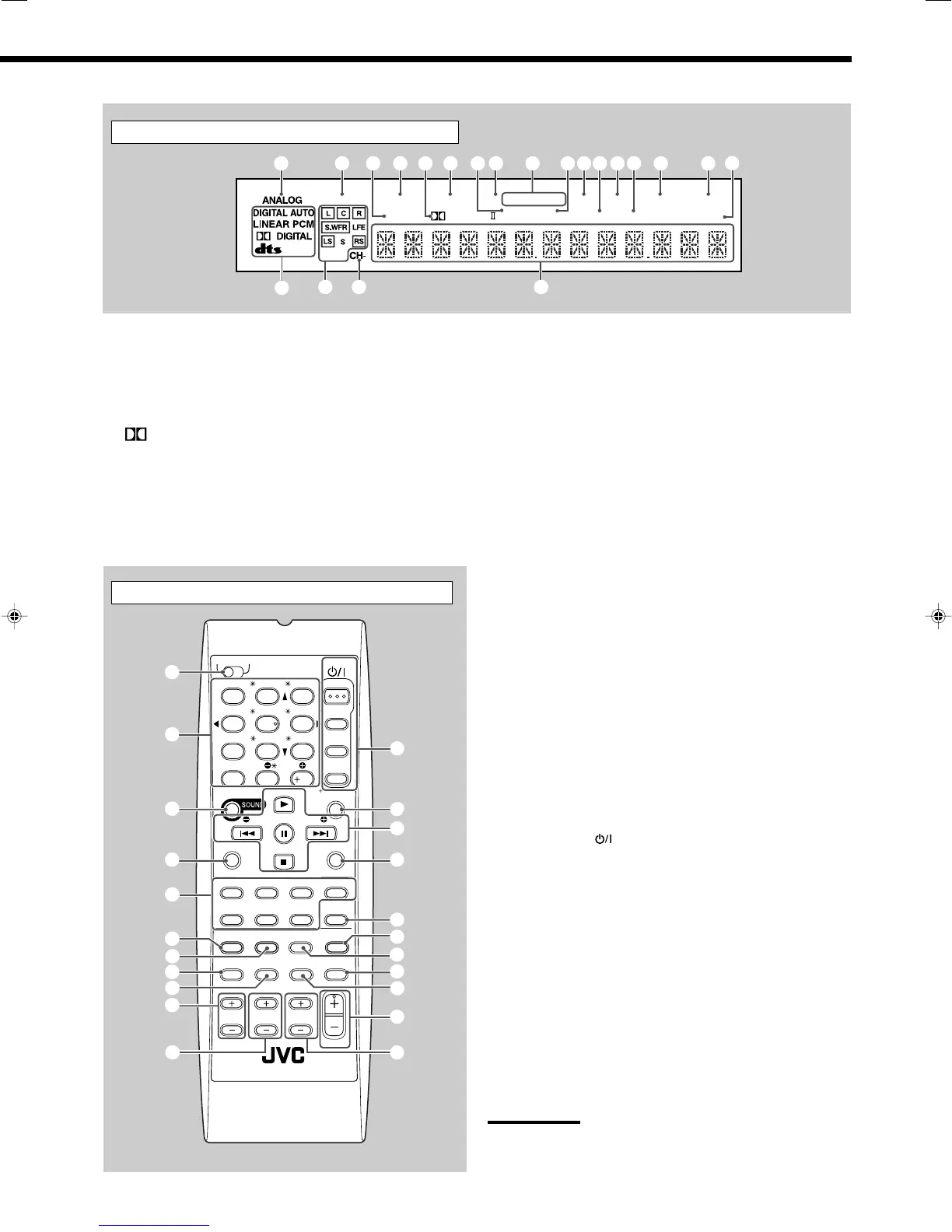

Remote Control
See pages in parentheses for details.
1 TV/STB selector (36)
2 10 keys for selecting preset channels (17, 34)
10 keys for sound adjustment (27, 34)
10 keys for operating audio/video components (34 – 36)
3 SOUND button (27, 34)
4 REC PAUSE button (35, 37)
5 Source selection buttons (11, 12)
TAPE/CDR, CD, DVD, DVD MULTI, FM/AM, TV SOUND,
VCR
6 FM MODE button (17, 34)
7 SURROUND button (30, 34)
8 DIMMER button (14, 34)
9 TV/VIDEO button (35, 36)
0 VCR CH +/– buttons (35, 37)
- TV/STB CH +/– buttons (35, 36)
= STANDBY/ON
buttons (11, 34 – 37)
AUDIO, TV/STB, VCR, DVD
~ SLEEP button (15, 34)
! • Operating buttons for audio/video components
3, 8, 7, ¢/4, FF/REW (34, 35, 37)
• RDS operating buttons (18 – 20)
TA/NEWS/INFO, PTY SEARCH, PTY9, (PTY,
DISPLAY MODE
@ CD-DISC button (34)
# ANALOG/DIGITAL button (13, 14, 34)
$ SURROUND/DSP OFF button (30, 32, 34)
% DSP button (31, 32, 34)
^ MUTING button (15, 34)
& BASSBOOST button (15, 34)
* VOLUME +/– button (12, 34)
( TV VOLUME +/– buttons (35, 36)
Note:
When you press the one of the audio source selection buttons—
TAPE/CDR, CD, and FM/AM—on the remote control, the receiver
automatically turns on.
See pages in parentheses for details.
1 ANALOG indicator (14)
2 DUAL MONO indicator (29, 30)
3 H.PHONE indicator (13, 29, 31)
4 3D-PHONIC indicator (29, 31)
5
PRO LOGIC II indicator (28, 30, 31)
6 VIRTUAL SB indicator (25)
7 DSP indicator (31, 32)
8 RDS indicator (18)
9 Program type (TA/NEWS/INFO) indicators (20)
0 DIGITAL EQ indicator (27)
- TUNED indicator (16)
= BASS BOOST indicator (15)
~ STEREO indicator (16)
! INPUT ATT indicator (14)
@ AUTO MUTING indicator (17)
# SLEEP indicator (15)
$ VOLUME indicator (11)
% Digital signal format indicators (13)
^ Speaker indicators and signal indicators (12)
& CH– indicator (16)
* Main display
Display
3D - PHONIC
DUAL
MONO
H.PHONE
SB
DSP DIGITAL EQ BASS BOOST INPUT ATT
VOLUME
PROLOGIC
VIRTUAL SB RDS TA NEWS INFO TUNED
STEREO
AUTO MUTING SLEEP
96/24
!
& *
$
%
132456790-=~@#
^
8
AUDIO
TV/STB
VCR
DVD
TEST
EFFECT
MENU
ENTER LEVEL
RETURN
SURROUND
/DSP
CD
-
DISC
SLEEP
REC PAUSE
FM MODE SURROUND DSP
DIMMER TV/VIDEO BASSBOOST MUTING
OFF
VCR CH
TV/STB CH
VOLUME
SURR R SURR L
SUBWFR CENTER
FRONT R FRONT L
100
1
4
7/P
10
2
5
8
0
3
6
9
10
REW
FF
TV VOLUME
STANDBY/ON
TV STB
A/V CONTROL
RECEIVER
TAPE/CDR CD DVD DVD MULTI
FM/AM TV SOUND VCR
ANALOG
/DIGITAL
TA/NEWS/INFO
DISPLAY MODE
PTY-PTY SEARCH-PTY
2
5
=
~
$
%
#
&
@
^
4
3
1
8
7
0
(
*
6
9
!
-
