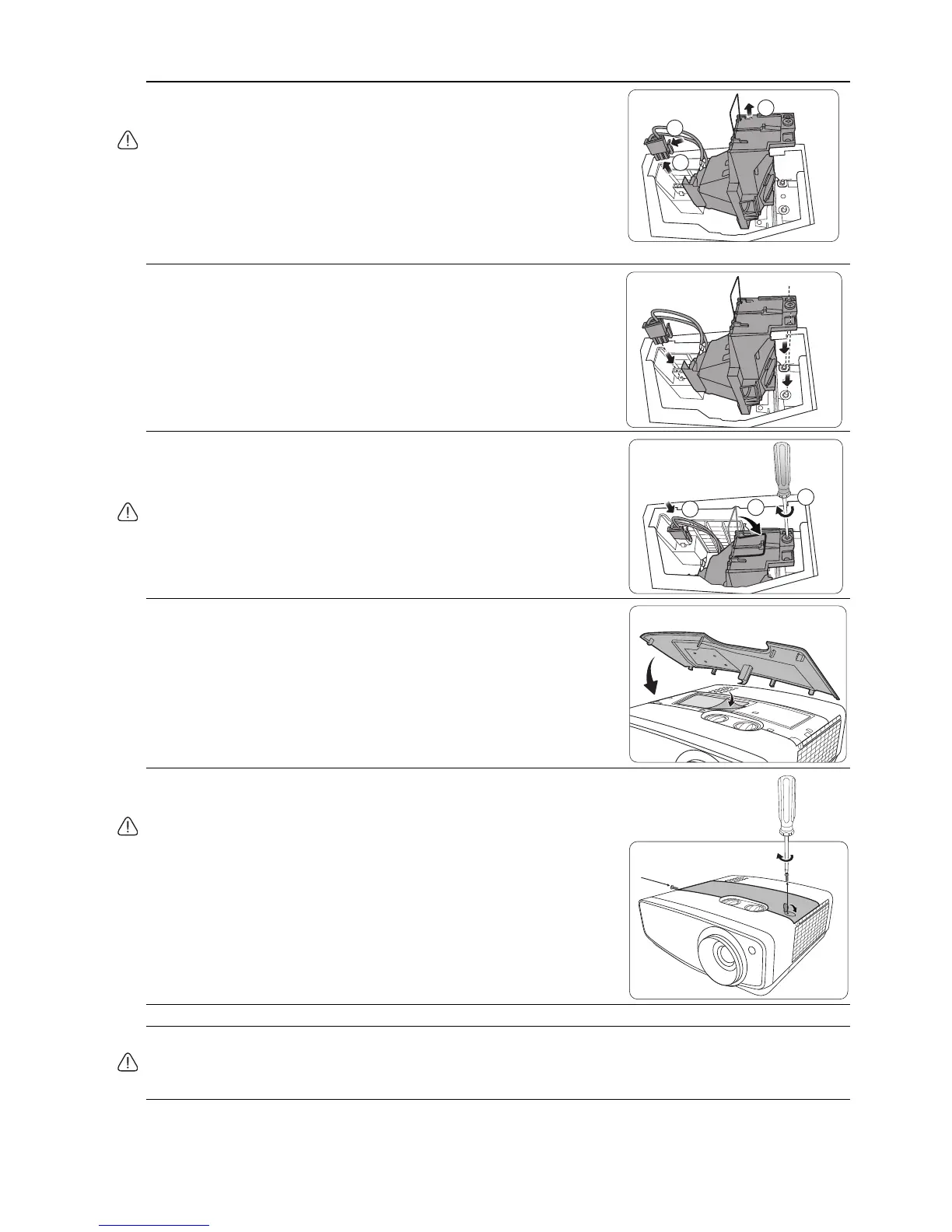

7. Disconnect the lamp connector from the projector.
8. Use the handle to slowly pull the lamp out of the projector.
• Pulling it too quickly may cause the lamp to break and scatter
broken glass in the projector.
• Do not place the lamp in locations where water might splash on it,
children can reach it, or near flammable materials.
• Do not insert your hands into the projector after the lamp is
removed. If you touch the optical components inside, it could
cause color unevenness and distortion of the projected images.
9. As shown in the illustration, lower the new lamp
(replacement lamp: PK-L2417U).
Insert the bulge at the bottom of the lamp securely into the
hole inside the projector. If it is not properly inserted, it may
cause decrease of brightness or damage the equipment.
10.Insert the lamp connector.
11. Tighten the screw that secures the lamp.
12.Ensure the handle is fully laid flat and locked in place.
• Loose screws may cause a bad connection, which could result in
malfunction.
• Do not over tighten the screw.
13.Replace the lamp protection film.
14.Replace the lamp cover on the projector.
15.Tighten the screws that secure the lamp cover.
16.Replace the screw cap.
• Loose screws may cause a bad connection, which could result in
malfunction.
• Do not over tighten the screw.
17.Connect the power and restart the projector.
18.After the startup logo displays, reset the lamp timer via the OSD menu.
Do not reset if the lamp is not new or replaced as this could cause damage.
A "Reset Successfully" message displays to notify that the lamp time has been reset to "0".
