JVC MF-47L - How to Engage Dial String

MF-47L/ML

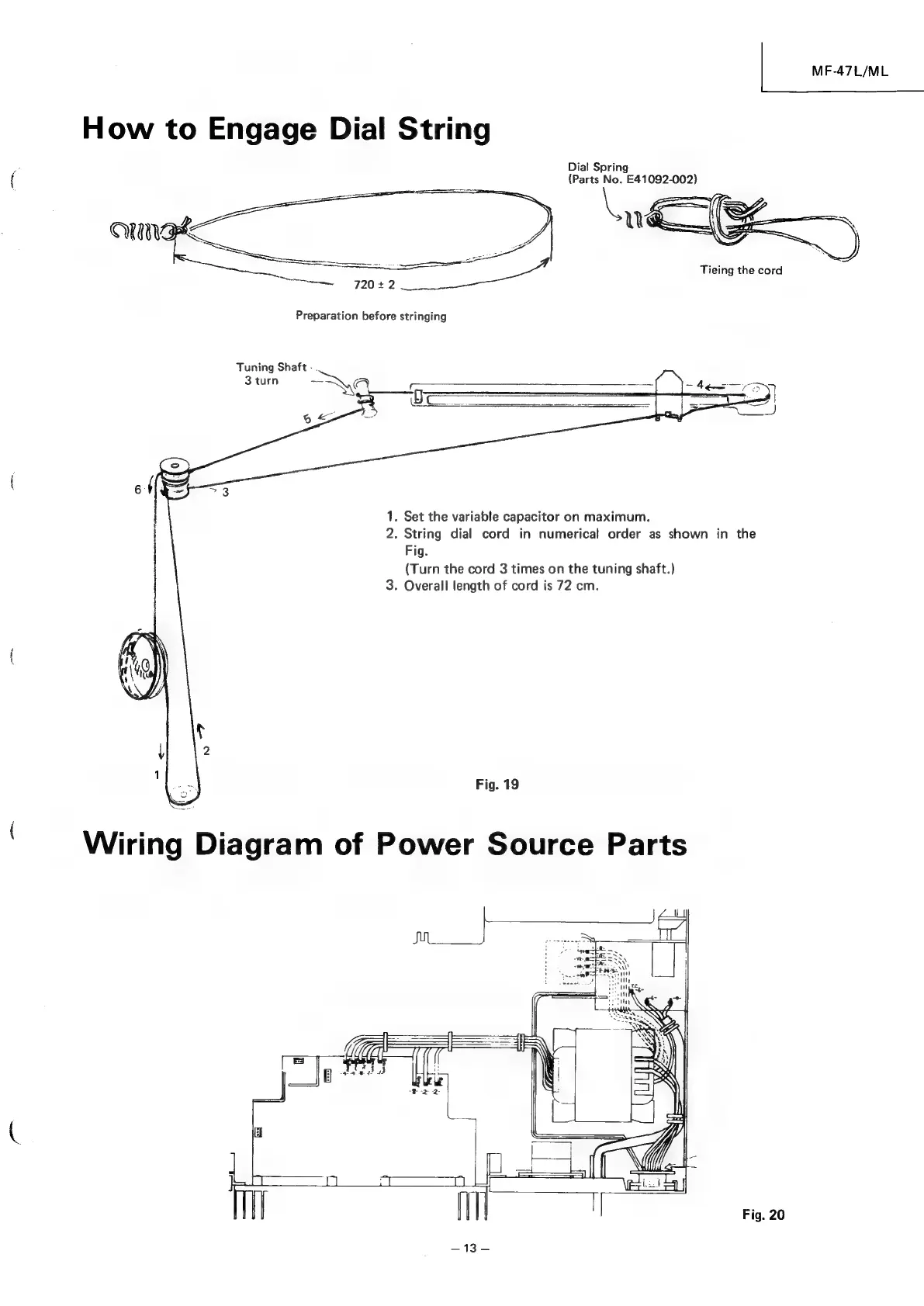

How to Engage Dial String
Dial Spring
(Parts No. E41092-002)
g=
Preparation before stringing
Tuning Shaft -.
1. Set the variable capacitor on maximum.
2. String dial cord in numerical order as shown in the
Fig.
(Turn the cord 3 times on the tuning shaft.)
3. Overall length of cord is 72 cm.
Fig. 20
