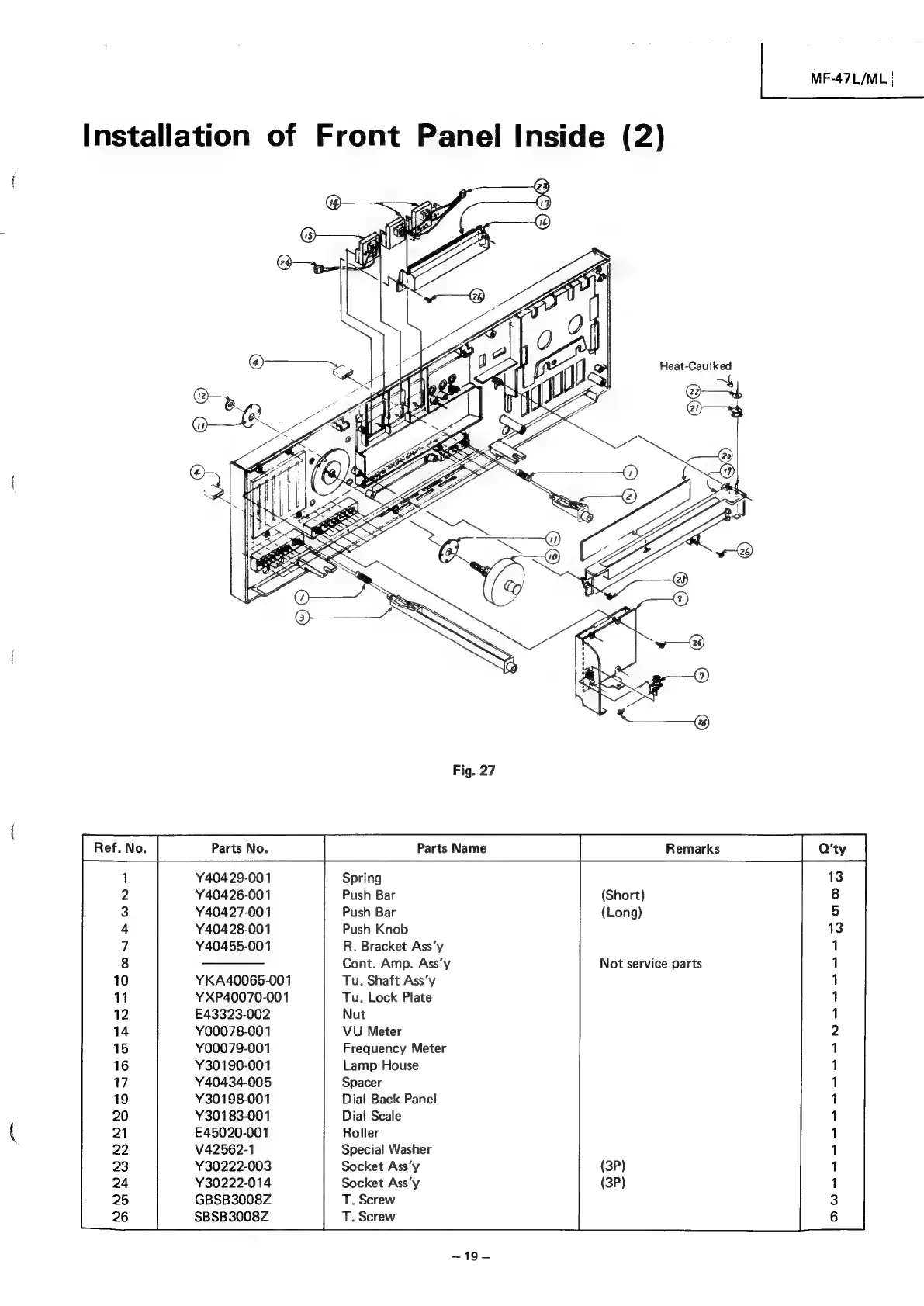

Installation of Front Panel Inside (2)
Fig. 27
Y40429-001 Spring
Y40426-001 Push Bar (Short)
Y40427-001 Push Bar (Long)
Y40428-001 Push Knob
Y40455-001 R. Bracket Ass’y
SS} Cont. Amp. Ass’y Not service parts
YKA40065-001 Tu. Shaft Ass’y
Y XP40070-001 Tu. Lock Plate
E43323-002 Nut
Y00078-001 VU Meter
Y00079-001 Frequency Meter
Y30190-001 Lamp House
Y40434-005 Spacer
Y30198-001 Dial Back Panel
Y30183-001 Dial Scale
E45020-001 Roller
V42562-1 Special Washer
Y30222-003 Socket Ass’y
Y30222-014 Socket Ass’y
GBSB3008Z T. Screw
SBSB3008Z T. Screw
