MF-47L/ML |

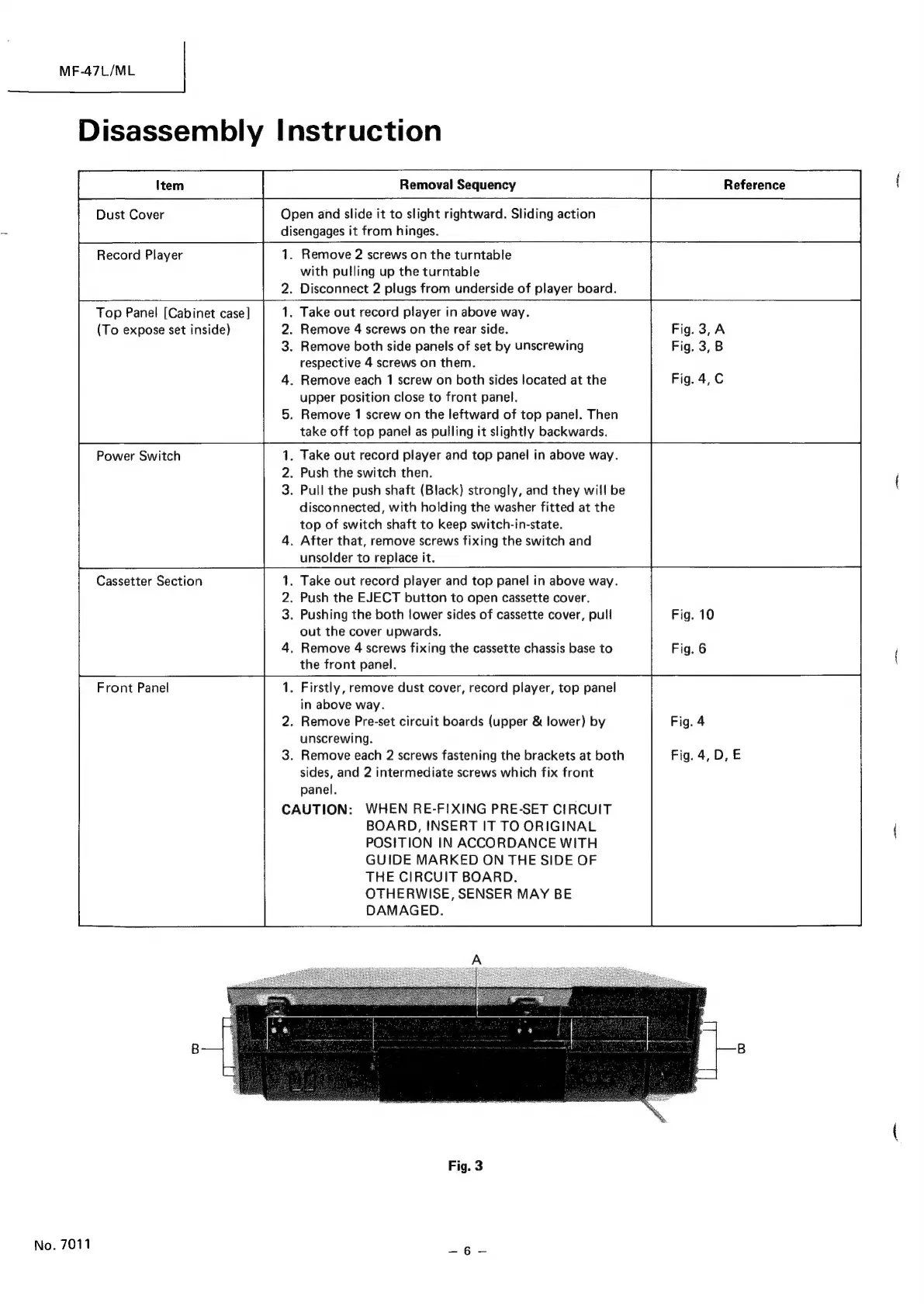

Disassembly Instruction
Record Player
2
Top Panel [Cabinet case] 1. Take out record player in above way.
(To expose set inside) 2. Remove 4 screws on the rear side.
3. Remove both side panels of set by unscrewing
respective 4 screws on them.
4. Remove each 1 screw on both sides located at the
upper position close to front panel.
5. Remove 1 screw on the leftward of top panel. Then
take off top panel as pulling it slightly backwards.
Reference
Removal Sequency
Open and slide it to slight rightward. Sliding action
disengages it from hinges.
1. Remove 2 screws on the turntable
with pulling up the turntable
. Disconnect 2 plugs from underside of player board.
_
. Take out record player and top panel in above way.
. Push the switch then.
3. Pull the push shaft (Black) strongly, and they will be
disconnected, with holding the washer fitted at the
top of switch shaft to keep switch-in-state.
4. After that, remove screws fixing the switch and
unsolder to replace it.
Power Switch
N
Cassetter Section 1. Take out record player and top panel in above way.
2. Push the EJECT button to open cassette cover.
3. Pushing the both lower sides of cassette cover, pull
out the cover upwards.
4. Remove 4 screws fixing the cassette chassis base to
the front panel.
Front Panel 1. Firstly, remove dust cover, record player, top panel
in above way.
2. Remove Pre-set circuit boards (upper & lower) by
unscrewing.
3. Remove each 2 screws fastening the brackets at both
sides, and 2 intermediate screws which fix front
panel.
CAUTION: WHEN RE-FIXING PRE-SET CIRCUIT
BOARD, INSERT IT TO ORIGINAL
POSITION IN ACCORDANCE WITH
GUIDE MARKED ON THE SIDE OF
THE CIRCUIT BOARD.
OTHERWISE, SENSER MAY BE
DAMAGED.
Fig. 3
No. 7011
