MX-G50/MX-G56
1-19
Prior to performing the following procedure, remove
the side panel.
Remove the five screws A attaching the side panel,
then remove the side panel.
1.
Removing the side panel (See Fig. 1)
Remove the fore screws C attaching the side
speaker.
Pull out the side speaker and remove the speaker
cord from the speaker terminal.
1.
2.
Removing the side speaker
(See Fig. 2 and 3)
< Speaker section >
Side panel
Side speaker
Front panel
Side speaker
Speaker terminal

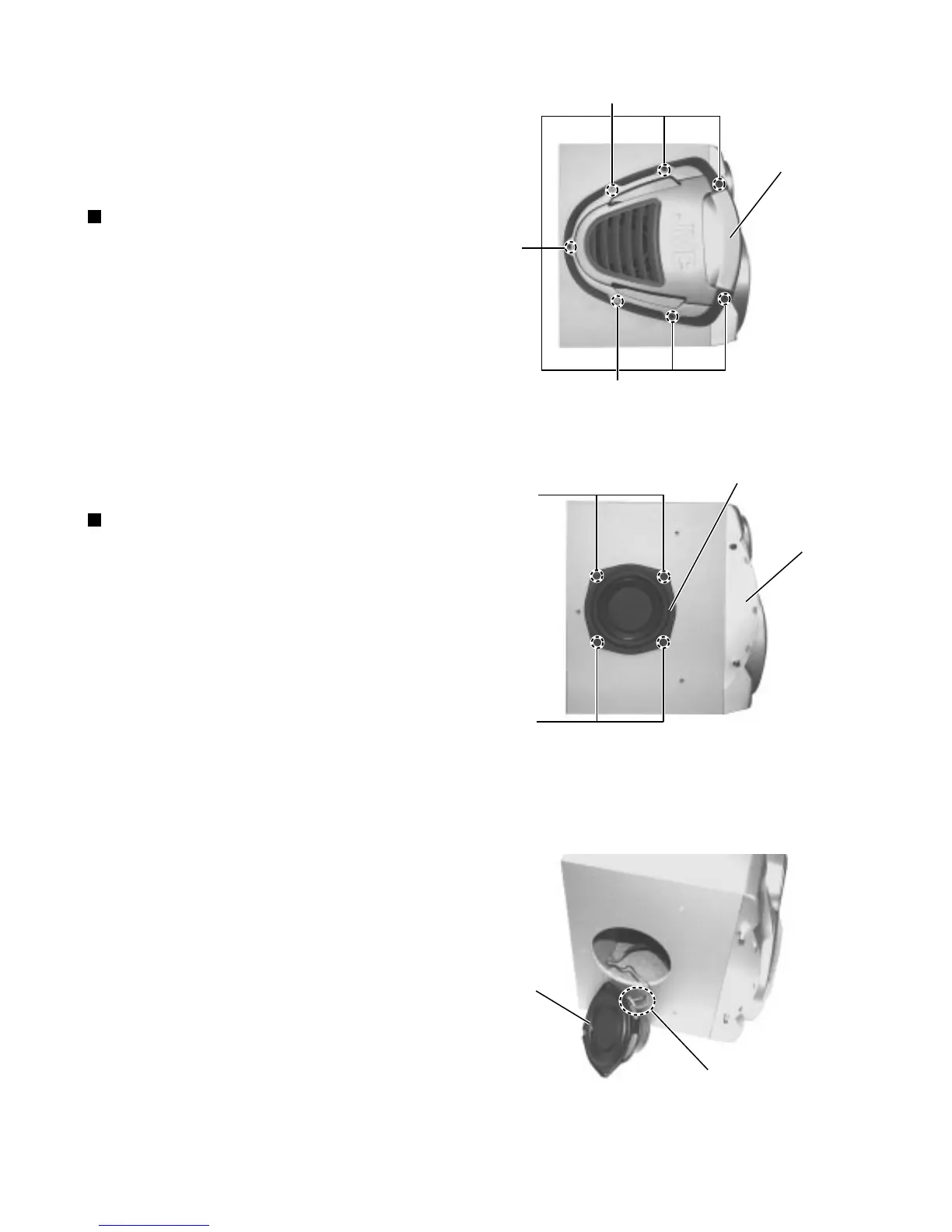

Fig.1
A
B
B
C
C
Fig.2
Fig.3
To Next Page
