JVC MX-G50 Service Manual

MX-G50/MX-G56
1-9

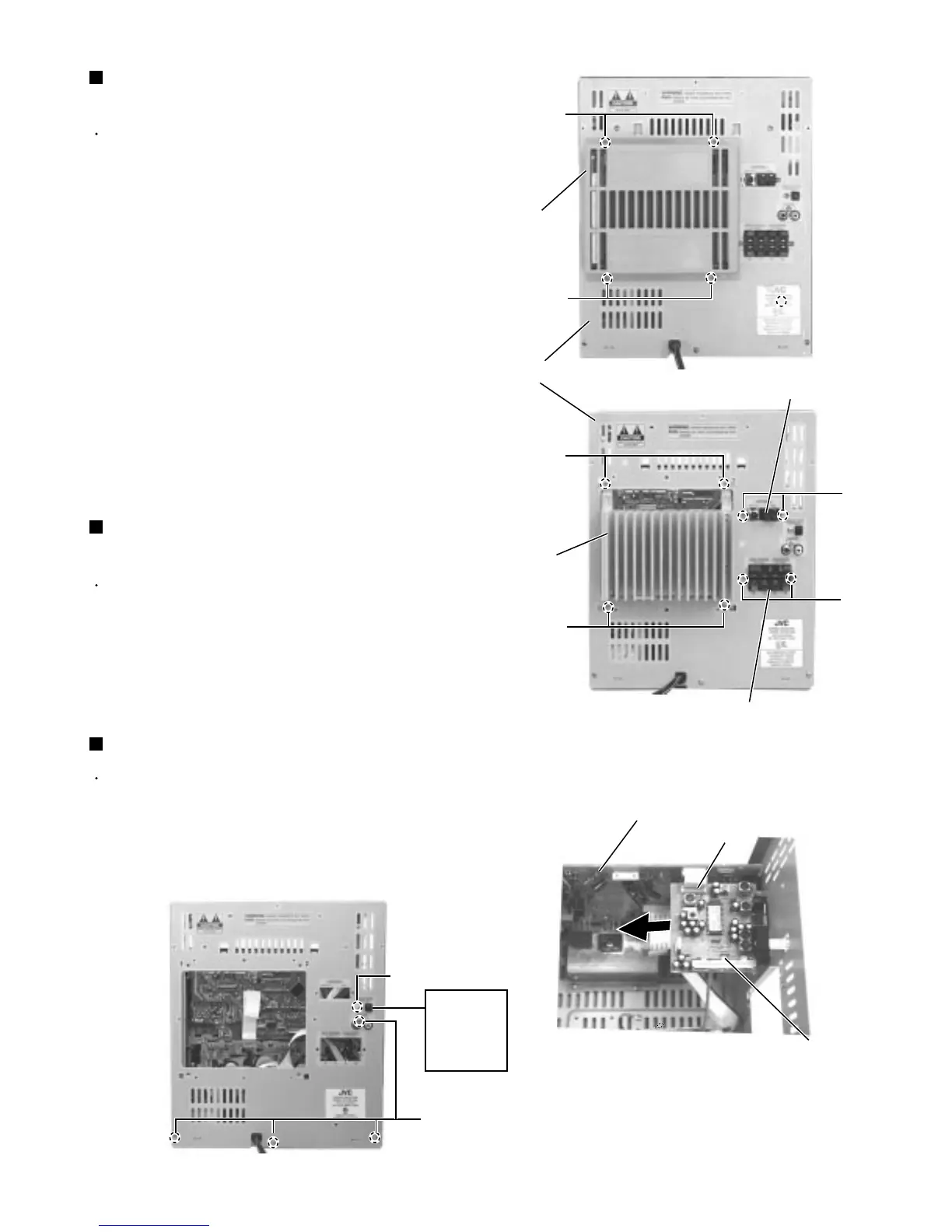

Prior to performing the following procedure, remove
the metal cover and the CD changer unit.
Remove the four screws I attaching the heat sink
cover on the back of the body. Remove the heat sink
cover.
Remove the four screws J attaching the heat sink &
AMP board to the rear panel on the back of the body.
Remove the two screws K attaching the speaker
terminal to the rear panel on the back of the body.
Disconnect the card wire from connector ACW1 and
the harness from connector ACW2 on the AMP
board. (See Fig.11)
After moving the heat sink upward, remove the
claws. Then pull out the heat sink & AMP board
inward.
1.
2.
3.
4.
5.
Removing the heat sink & AMP board
(See Fig.14 and 15)
Prior to performing the following procedure, remove
the metal cover and CD changer unit.
Disconnect the card wire from connector CON01 on
the tuner board.
Remove the two screws L attaching the tuner pack.
1.
2.
Removing the tuner pack
(See Fig.15 and 16)
Prior to performing the following procedure, remove
the metal cover, CD changer unit, heat sink & AMP
board and tuner pack.
Remove the fore screws M and one screw M' (Only
MX-G50 J / MX-G56 C) attaching the rear panel.
1.
Removing the rear cover (See Fig.17)
Fig.14
Fig.15
Fig.16
Fig.17
Rear panel
Heat sink
cover
Heat sink
Speaker terminal
Tuner terminal
K
L
I
I
Main board
Tuner board
CON01
J
J
M
M'
Optical out
only
MX-G50 J
MX-G56 C
