MX-G50/MX-G56
1-8
Prior to performing the following procedure, remove
the metal cover and the CD changer unit.
Disconnect the card wire from connector FCW3 and
the harness from connector JCW1, JCW2 and
HCW3 on the inner side of the main board in the
body.
Remove the two screws E attaching the front panel
assembly on both sides of the body.
Remove the screw F attaching the earth terminal
extending from the cassette mechanism assembly.
Remove the screw G attaching the front panel
assembly and main board.
Remove the screw H attaching the front panel
assembly on the bottom of the body.
Release the two joints c on both sides and two joints
d on the bottom of the body using a screwdriver.
1.
2.
3.
4.
5.
6.

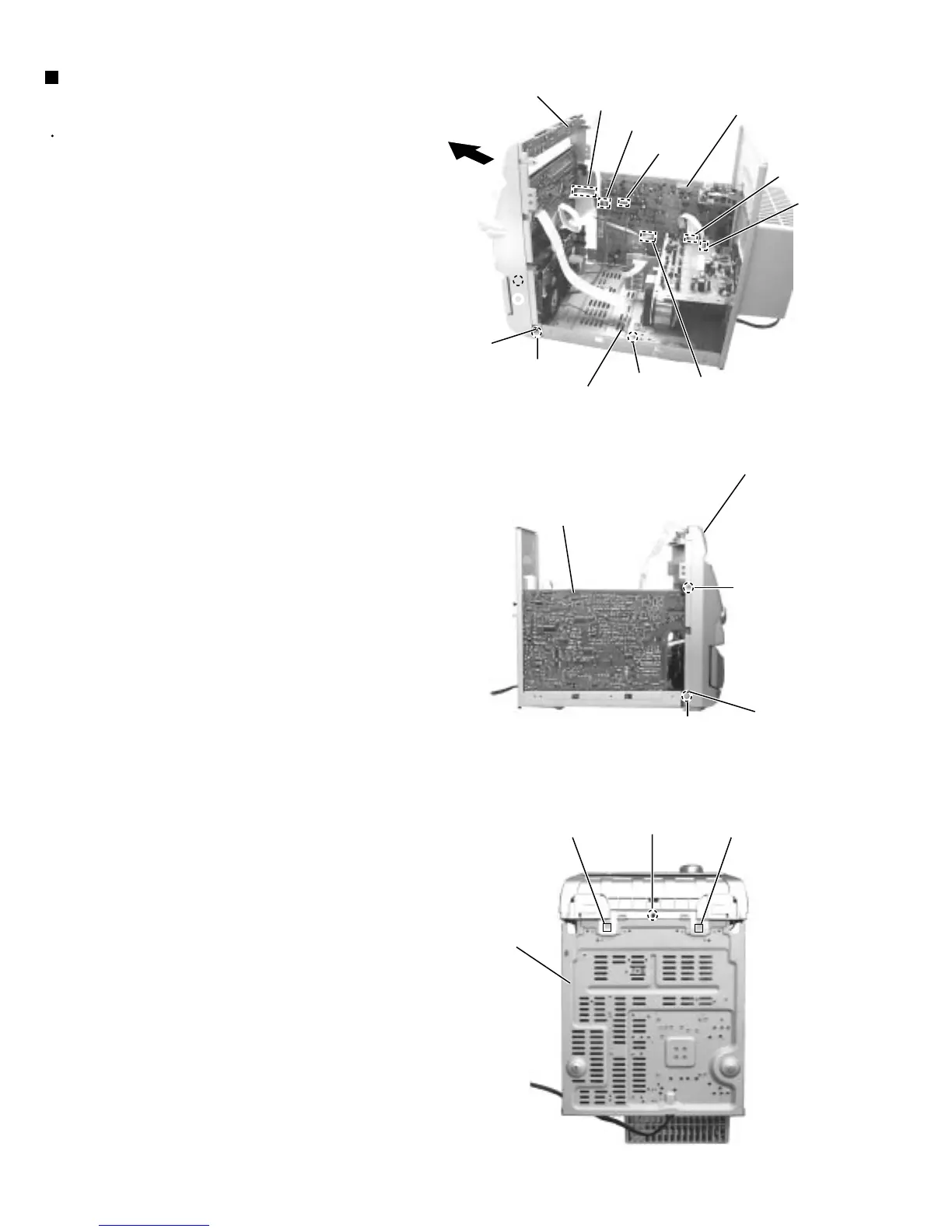

Removing the front panel assembly
(See Fig.11 to 13)
Fig.11
Fig.12
Fig.13
Main board
FCW3
JCW2
JCW1
HCW3
ACW1
ACW2
Front panel assembly
Joint c
earth wire
E
F
Front panel assembly
G
E
Main board
H
Joint d
Joint d
Joint c
Bottom side
To Next Page
