JVC MX-G950V User Manual

1-10
MX-G950V/MX-G880V
MX-G850V/MX-G750V
Prior to performing the following procedure, remove
the metal cover, the CD changermechanism
assembly and the rear panel.
Remove a band on the power board.
Disconnect the wire from connector CN218, CN219
and CN250 on the power board.
Disconnect connector CN213 on the power board
from the regulator board.
1.
2.
3.

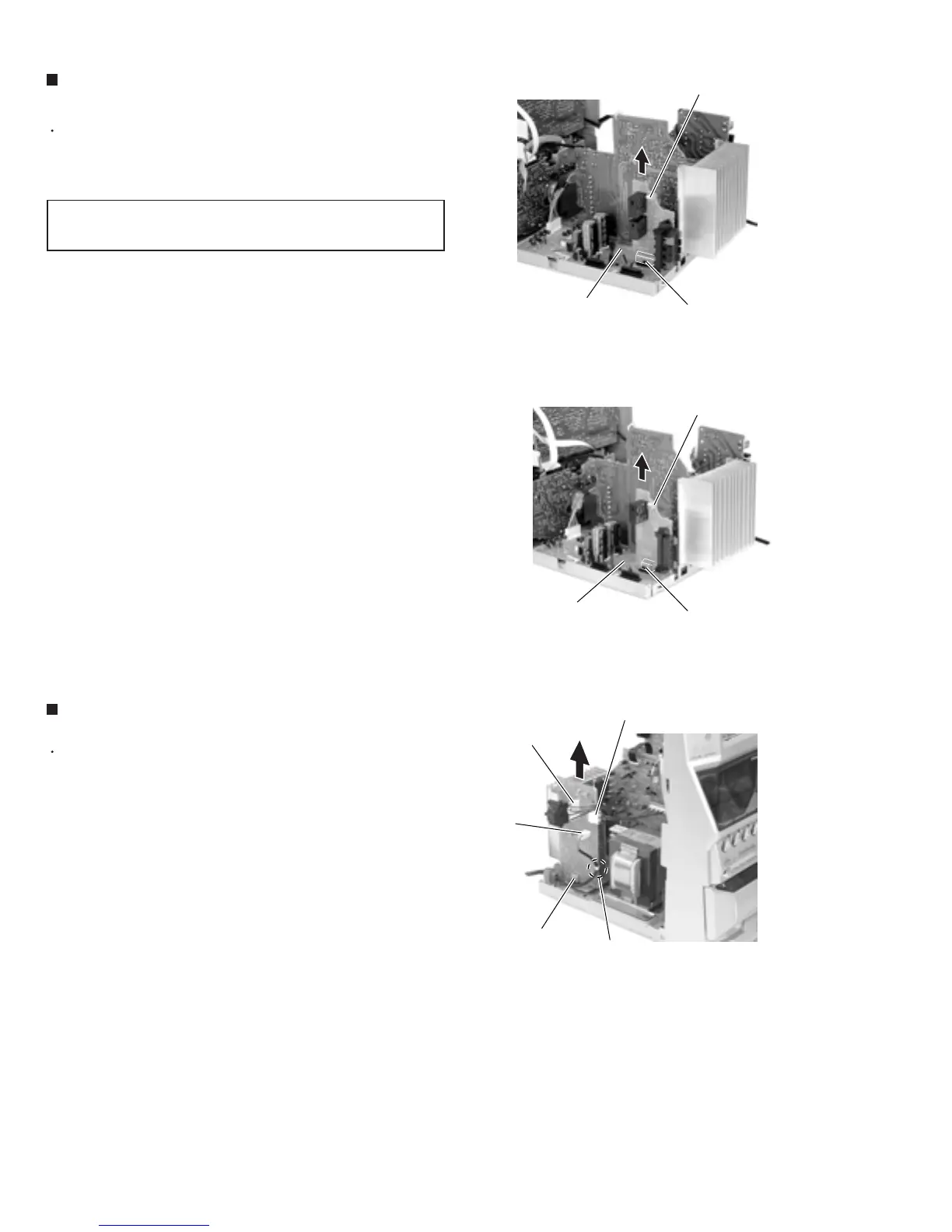

Removing the power board (See Fig.21)
Prior to performing the following procedure, remove
the metal cover, the CD changer mechanism
assembly and the rear panel.
Disconnect the wire from connector CN710 on the
speaker board.
Disconnect connector CN217 on the speaker board
from the regulator board.
1.
2.
Removing the speaker board
(See Fig.20)
It is not necessary to remove the main
board.
REFERENCE:
Fig.21
CN218
Power board
CN219
Band
CN213
CN250
Fig.20
(CA-MXG850VU, CA-MXG950VUX)
Regulator board
CN217
Speaker board
CN701
Fig.20
(CA-MXG750VUS)
Regulator board
CN217
Speaker board
CN710
