1-15
MX-G950V/MX-G880V
MX-G850V/MX-G750V
Disassembly method
Remove the four screws A on the front of the body
respectively.
Remove the front cover toward the front and
disconnect the yellow and black wires from the two
tweeter speaker terminals.
1.
2.

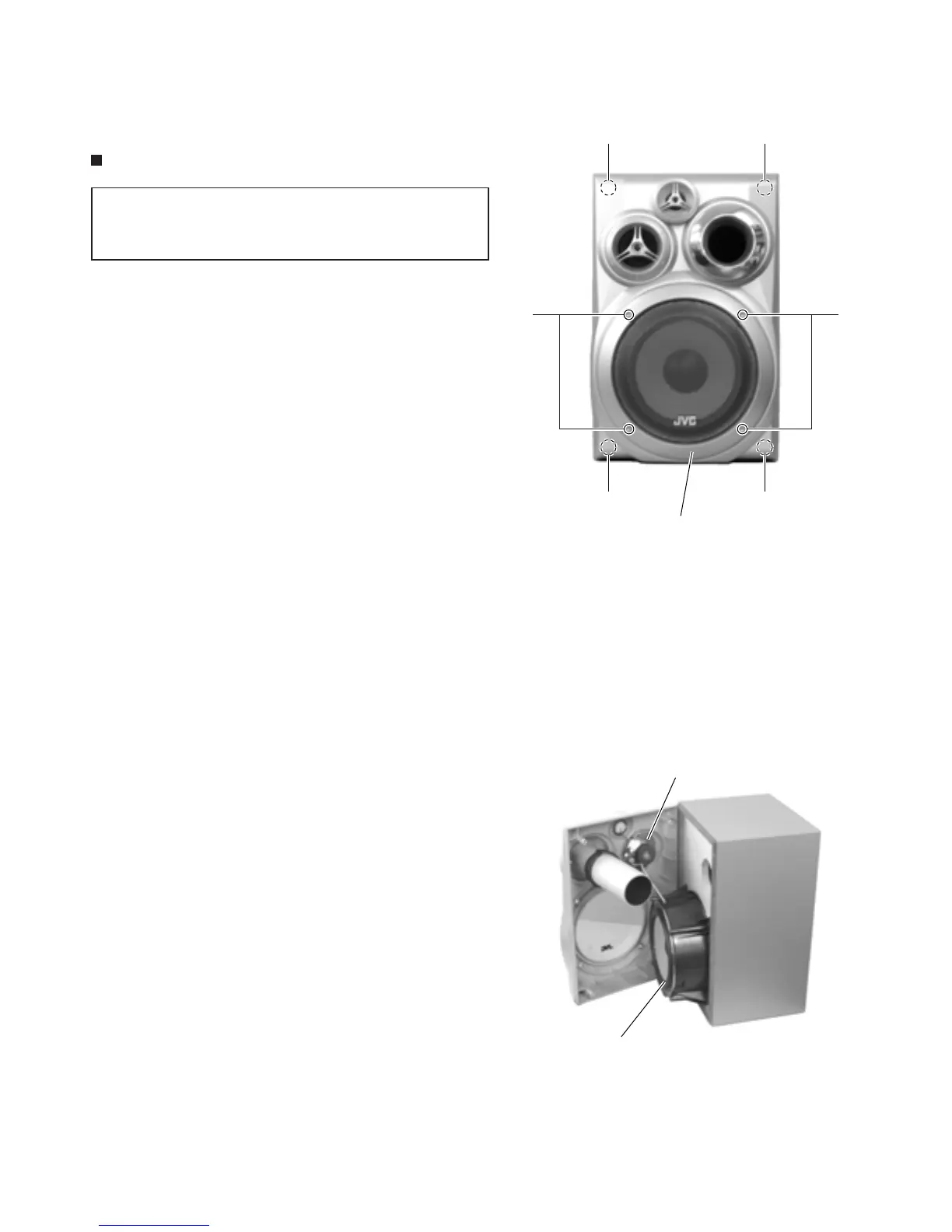

Removing the front cover (See Fig.1,2)
Do not break or damage the front panel and
body that are glued at the joints a.
(See Fig.1)
CAUTION:
<speaker section>
Fig.1
(SP-MXG750V)
(SP-MXG850V)
(SP-MXG950V)
Fig.2
(SP-MXG750V)
(SP-MXG850V)
(SP-MXG950V)
A
A
Joint a
Tweeter speaker
Front cover
Joint a
Joint a Joint a
Woofer speaker
