1-14
MX-G950V/MX-G880V
MX-G850V/MX-G750V
Prior to performing the following procedure, remove
the display system control board.
Pull out the preset knob on the front panel.
Remove the four screws R attaching the preset /
tuning switch board.
If necessary, unsolder FW901 on the preset / tuning
switch board.
1.
2.
3.

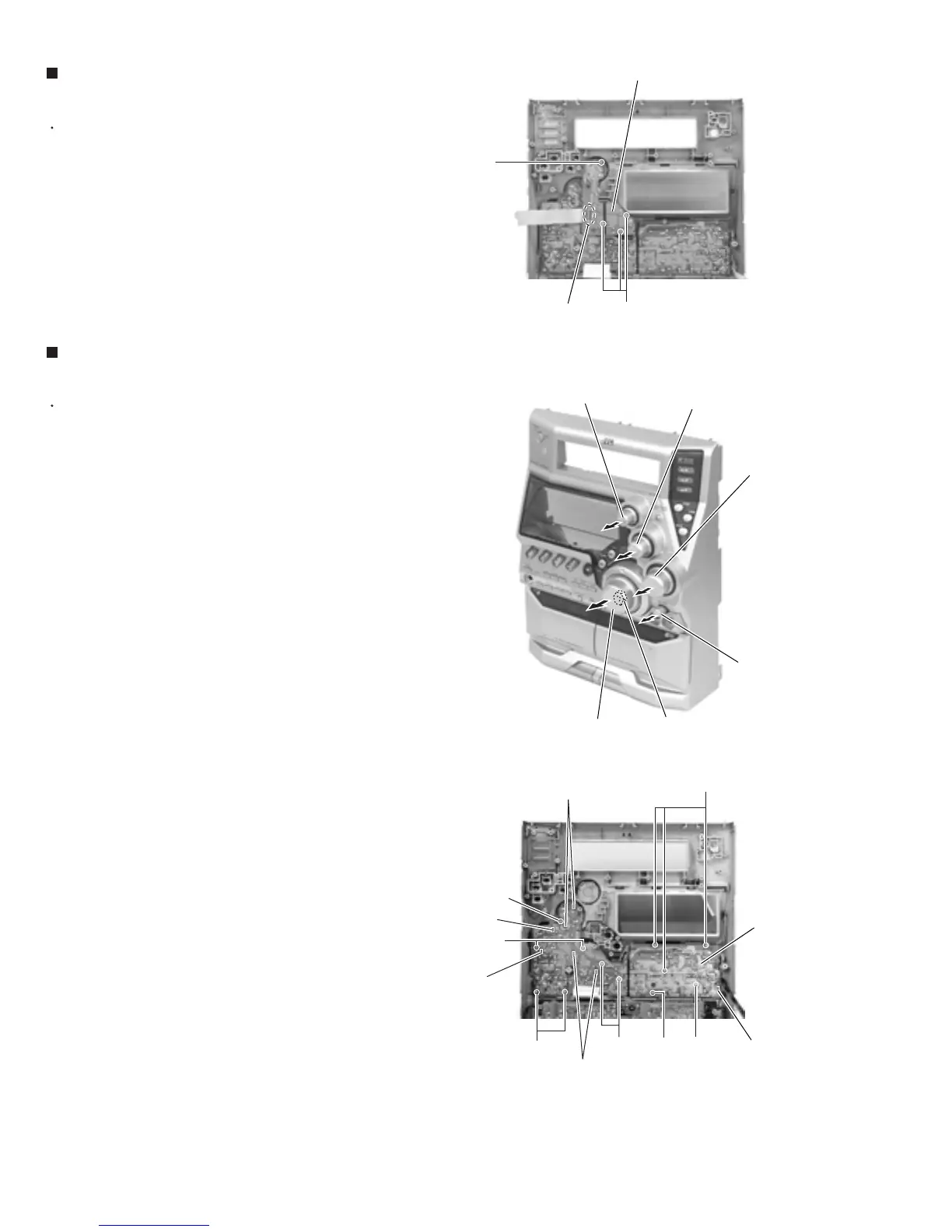

Removing the preset / tuning switch
board (See Fig.33, 34)
Prior to performing the following procedure, remove
the display system control board and the preset /
tuning switch board.
Pull out the volume knob on the front panel and
remove the nut. Pull out the sound mode knob, the
mic level knob and the sub woofer level knob toward
the front.
Remove the twelve screws S attaching the
operation switch board.
Release each tab of the seven joints g retaining the
operation switch board.
1.
2.
3.
Removing the operation switch board
(See Fig.34, 35)
Fig.33
Fig.33
Fig.35
Preset / tuning switch board
R
R
Volume knob
Nut
Sub woofer
level knob
Sound mode knob
Preset knob
S
S
S
S
S
S
S
Joint g
Joint g
Joint g
Joint g
Joint g
Operation
switch board
Mic level knob
FW901
(Solding)
