3.1.10 Removing the LCD board / STANDBY board
(See Fig.28, 29)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws A’ attaching the LCD board and
disconnect the wire from connector CN505
.
(2) Remove the two screws B’ attaching the STANDBY board.

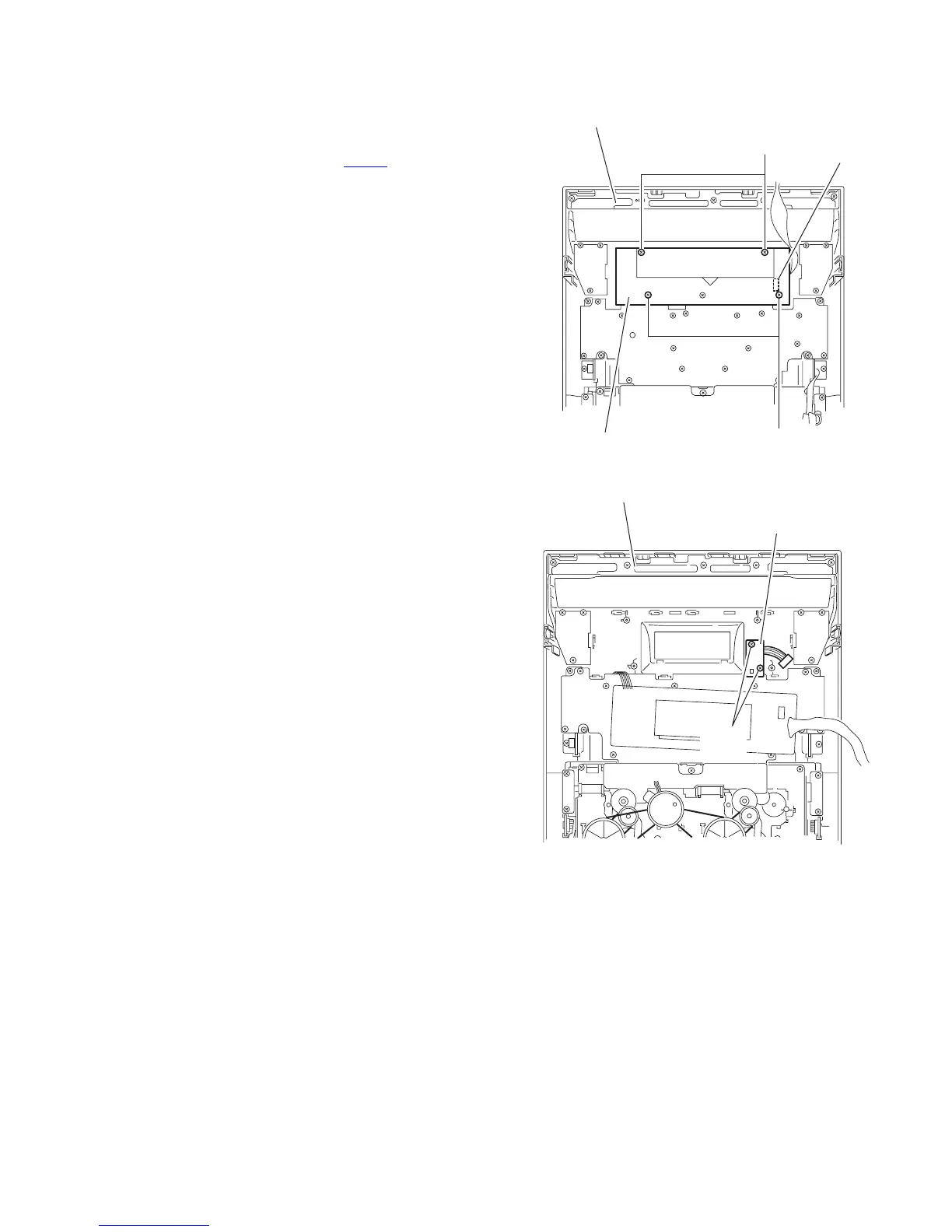

Fig.28
Fig.29
LCD board
CN505
A'
A'
Front panel assembly
B'
STANDBY board
Front panel assembly
