Fig, 14 Abb. 14
Fig. 15 Abb, 15
Power cord
Netzkabel
Cordon d'alimentation
(Rea) R
(Ro) R *
(White) L 3-~ (Rouge) R
(Wei) L
(Blane)_L Grounding wire
Erdungskabel
~~ *Fil'de terre
Fig. 16 Abb. 16
Fig. 17 Abb. 17
The
tonearm
lead-in
position
adjustor
is
on
the
bottom
of
this
hole.
Der
Regler
fur dic
Cinstellung
des
Cintoulpurkies
des
Tonarms befindet sich auf dem Boden in dieser Gfinung.
La vis de régiage du mouvement automatique du bras de
lecture est située sur la base de cette orifice.
ie

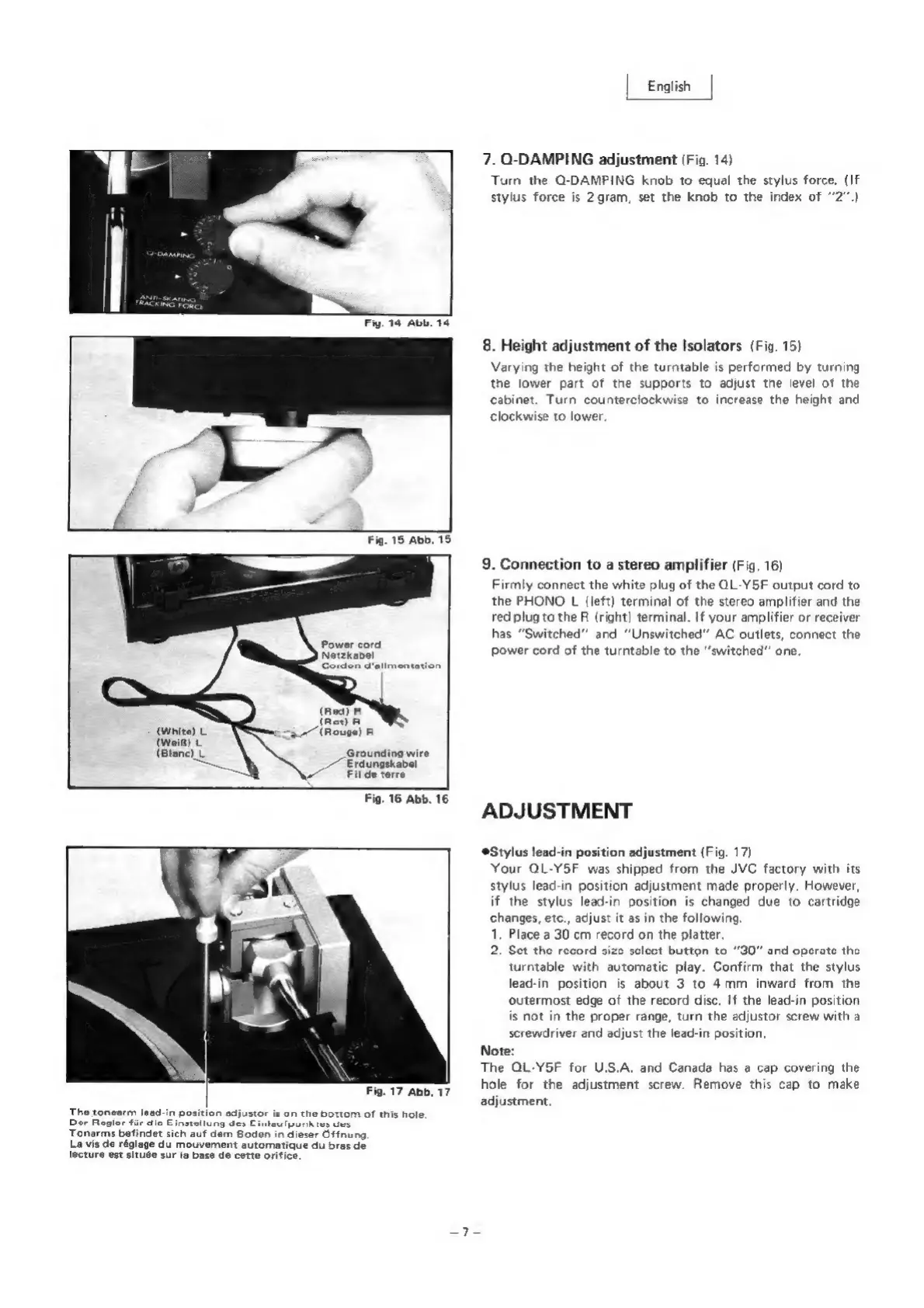

7. Q-DAMPING adjustment (Fig. 14)
Turn the Q-DAMPING knob to equal the stylus force. (If
stylus force is 2gram, set the knob to the index of *'2’”.)
8. Height adjustment of the Isolators (Fig. 15)
Varying the height of the turntable is performed by turning
the lower part of the supports to adjust the level of the
cabinet. Turn counterclockwise to increase the height and
clockwise to lower.
9. Connection to a stereo amplifier (Fig. 16)
Firmly connect the white plug of the QL-Y5F output cord to
the PHONO L (left) terminal of the stereo amplifier and the
red plug to the R (right) terminal. If your amplifier or receiver
has “Switched and “Unswitched”” AC outlets, connect the
power cord of the turntable to the “switched” one.
ADJUSTMENT
Stylus lead-in position adjustment (Fig. 17)
Your QL-Y5F was shipped from the JVC factory with its
stylus lead-in position adjustment made properly. However,
if the stylus lead-in position is changed due to cartridge
changes, etc., adjust it as in the following.
1, Place a 30 cm record on the platter.
2. Set the record size sclect button to “20” and operate the
turntable with automatic play. Confirm that the stylus
lead-in position is about 3 to 4mm inward from the
outermost edge of the record disc. If the lead-in position
is not in the proper range, turn the adjustor screw with a
screwdriver and adjust the lead-in position,
Note:
The QL-Y5F for U.S.A. and Canada has a cap covering the
hole for the adjustment screw. Remove this cap to make
adjustment.
