JVC RC-636L Service Manual

RC-636L/LB

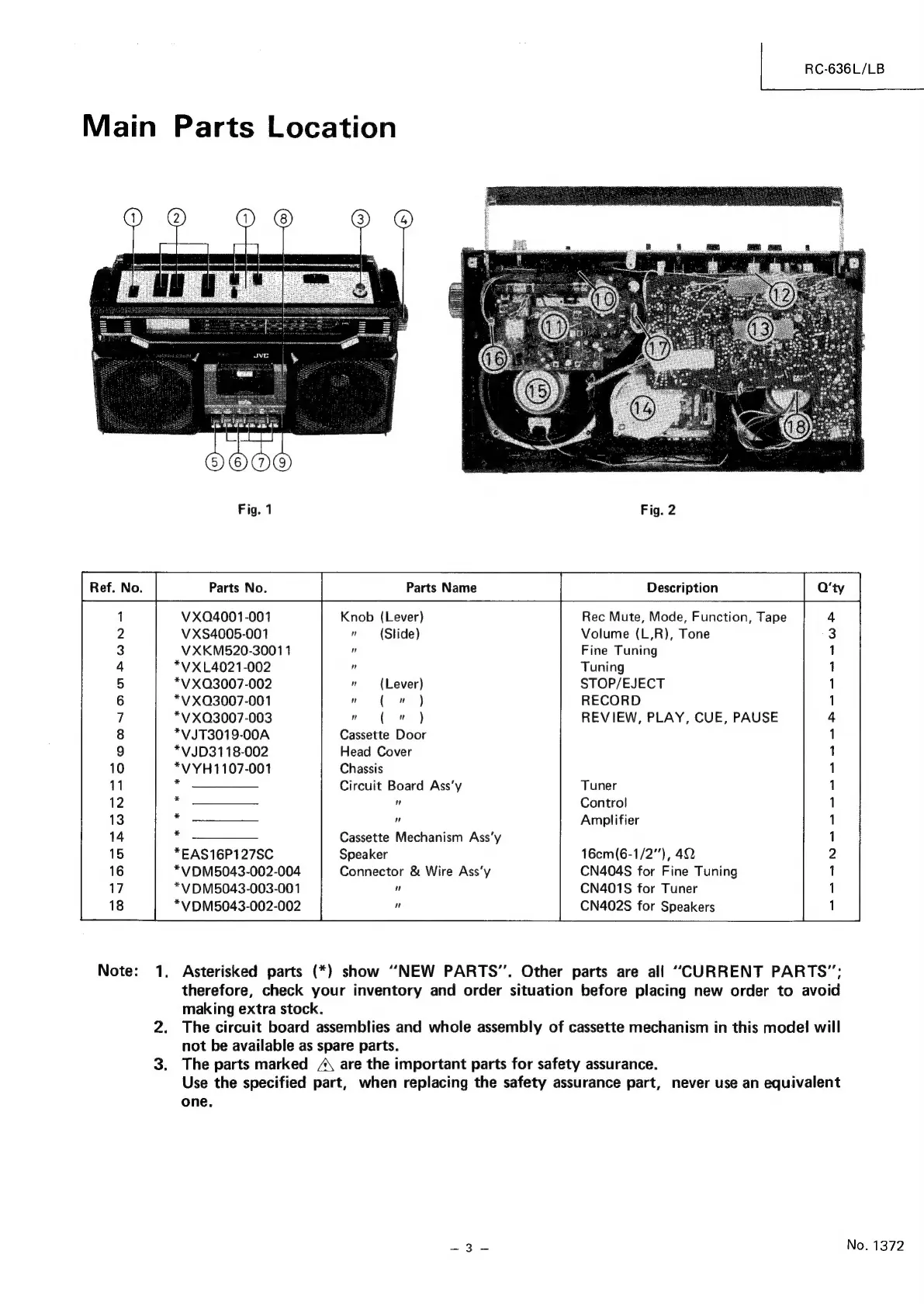

Main Parts Location
5G) VY
Fig. 1 Fig. 2
Parts No. Parts Name Description
VXQ4001-001 Knob (Lever) Rec Mute, Mode, Function, Tape
VXS4005-001 (Slide) Volume (L,R), Tone
VXKM520-30011 Fine Tuning
*VXL4021-002 Tuning
*VXQ3007-002 (Lever) STOP/EJECT
*¥X03007-001 ) RECORD
*V¥XQ3007-003 REVIEW, PLAY, CUE, PAUSE
*VJT3019-00A Cassette Door
*VJD3118-002 Head Cover
*VYH1107-001 Chassis
2 Circuit Board Ass’y Tuner
Control
Amplifier
COON OORWNH =
——_- Cassette Mechanism Ass’y
*EAS16P127SC Speaker 16cm(6-1/2"), 42
*VDM5043-002-004 Connector & Wire Ass‘y CN404S for Fine Tuning
*VDM5043-003-001 CN401S for Tuner
*VDM5043-002-002 CN402S for Speakers
Note: 1, Asterisked parts (*) show “NEW PARTS”. Other parts are all “CURRENT PARTS”;
therefore, check your inventory and order situation before placing new order to avoid
making extra stock.
2. The circuit board assemblies and whole assembly of cassette mechanism in this model will
not be available as spare parts.
3. The parts marked /\ are the important parts for safety assurance.
Use the specified part, when replacing the safety assurance part, never use an equivalent
one.
