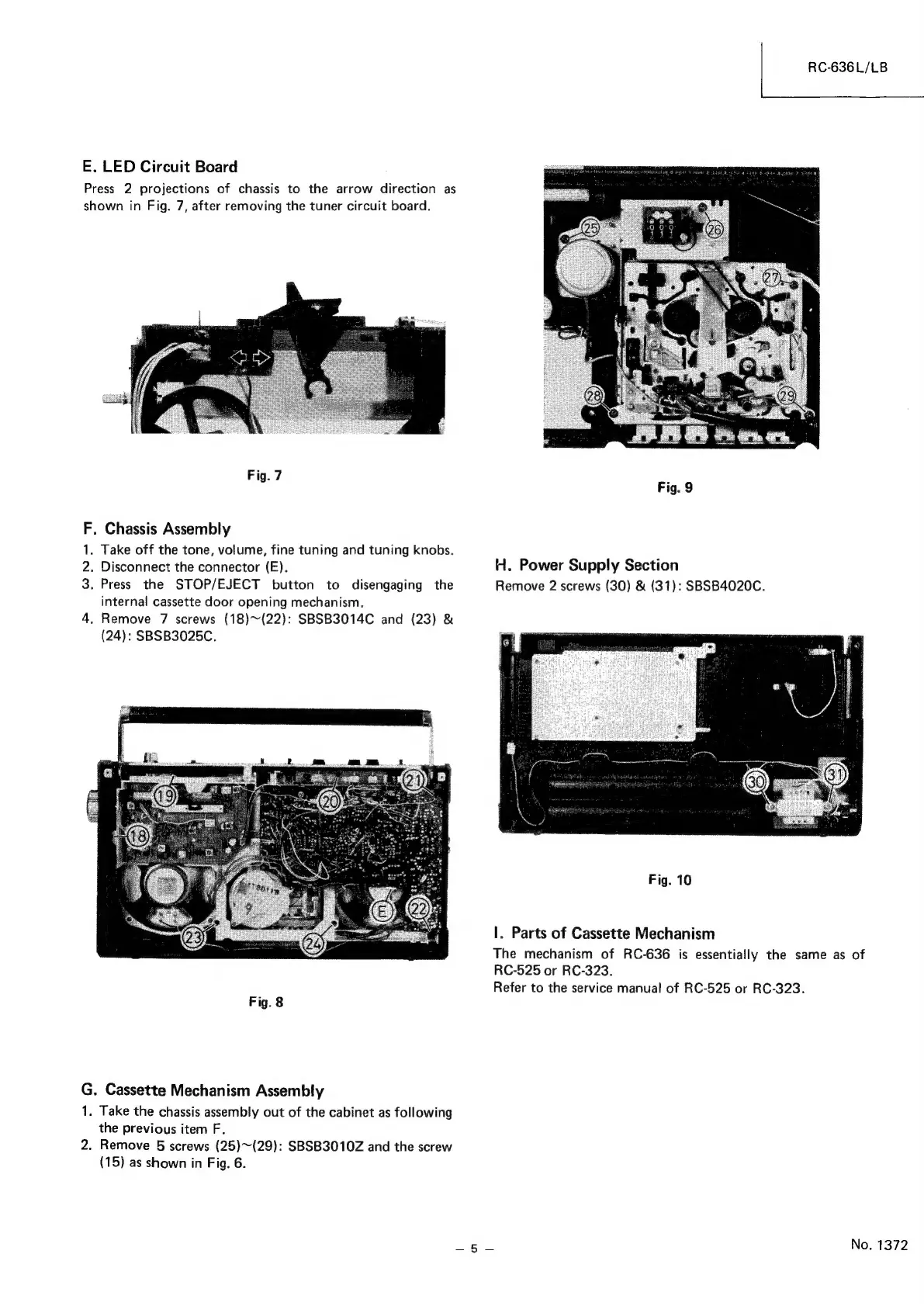

RC-636L/LB
E.
LED
Circuit
Board
Press
2
projections
of
chassis
to
the
arrow
direction
as
shown
in
Fig.
7,
after
removing
the
tuner
circuit
board.
Fig.
7
.
Fig.
9
F.
Chassis
Assembly
1.
Take
off
the
tone,
volume,
fine
tuning
and
tuning
knobs.
:
2.
Disconnect
the
connector
(E).
H.
Power
Supply
Section
3.
Press
the
STOP/EJECT
button
to
disengaging
the
Remove
2
screws
(30)
&
(31):
SBSB4020C.
internal
cassette
door
opening
mechanism.
4.
Remove
7
screws
(18)~(22):
SBSB3014C
and
(23)
&
(24):
SBSB3025C.
Fig.
10
1.
Parts
of
Cassette
Mechanism
The
mechanism
of
RC-636
is
essentially
the
same
as
of
RC-525
or
RC-323.
Refer
to
the
service
manual
of
RC-525
or
RC-323.
Fig.
8
G.
Cassette
Mechanism
Assembly
1.
Take
the
chassis
assembly
out
of
the
cabinet
as
following
the
previous
item
F.
2.
Remove
5
screws
(25)~(29):
SBSB3010Z
and
the
screw
(15)
as
shown
in
Fig.
6.
_5_
No.
1372
