JVC RC-660 LE - Enclosure Assembly Parts List

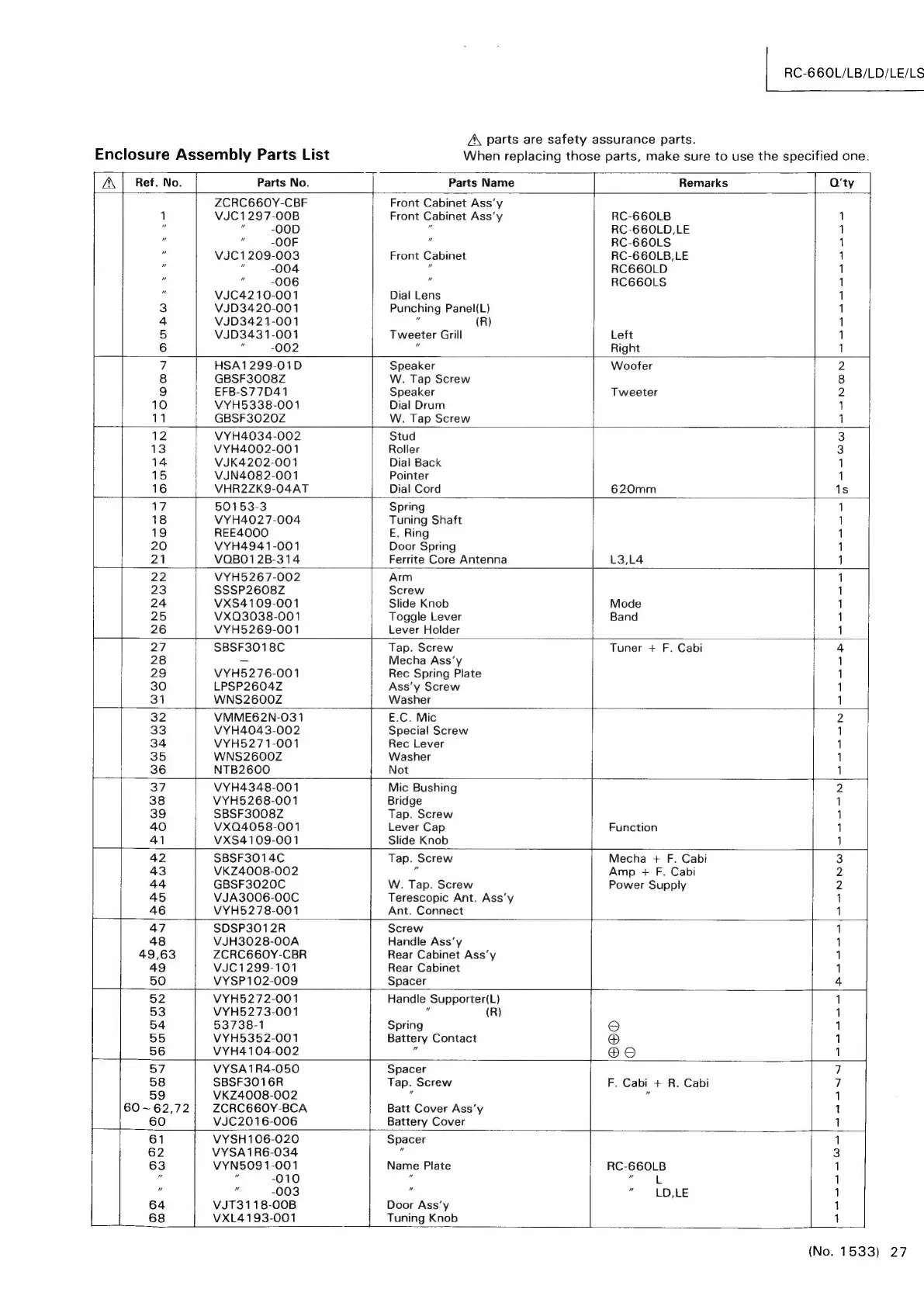

Enclosure Assembly Parts List
A\ parts are safety assurance parts.
When replacing those parts, make sure to use the specified one.
L RC-660L/LB/LD/LE/LS
A\ | Ref. No. Parts No. Parts Name Remarks Q'ty
ZCRC660Y-CBF | Front Cabinet Assy
1 VJC1297-00B Front Cabinet Ass’y RC-660LB 1
i“ ‘ -00D = RC-660LD,LE 1
7 M -OOF < RC-660LS 1
c VJC1209-003 Front Cabinet RC-660LB,LE 1
te ” -004 7 RC660LD 1
. e -006 RC660LS 1
G VJC4210-001 Dial Lens 1
3 VJD3420-001 Punching Panel(L) 1
4 VJD3421-001 * (R) 1
5 VJD3431-001 Tweeter Grill Left 1
6
"002
e
Right
1
7 HSA1299-01D Speaker Woofer 2
8 GBSF3008Z W. Tap Screw 8
9 EFB-S77D41 Speaker Tweeter 2
10 VYH5338-001 Dial Drum 1
11 GBSF3020Z W. Tap Screw 1
12 VYH4034-002 Stud 3
13 VYH4002-001 Roller 3
14 VJK4202-001 Dial Back |
15 VJN4082-001 Pointer 1
16 | VHR2ZK9-04AT | Dial Cord 620mm 1s
7 50153-3 Spring P44
18 VYH4027-004 Tuning Shaft 1
19 REE4000 E. Ring 1
20 VYH4941-001 Door Spring 1
21 VQBO1 2B-314 Ferrite Core Antenna L3,L4 1
22. +| VYH5267-002 Arm 1
23 SSSP2608Z Screw 1
24 VXS4109-001 Slide Knob Mode 1
VXQ3038-001 Toggle Lever Band 1
VYH5269-001 Lever Holder 1
an
SBSF3018C Tap. Screw
Tuner + F. Cabi
4
28 = Mecha Ass‘y 1
29 VYH5276-001 Rec Spring Plate 1
30 LPSP2604Z Ass'y Screw 1
31 WNS2600Z Washer 1
32 VMME62N-031 E.C. Mic 2
33 VYH4043-002 Special Screw 1
34 VYH5271-001 Rec Lever 1
35 WNS2600Z Washer 1
36 NTB2600 Not 1
37 VYH4348-001 Mic Bushing bo
38 VYH5268-001 Bridge 1
39 SBSF3008Z Tap. Screw 1
40 VX04058-001 Lever Cap Function 1
41 VXS4109-001 Slide Knob 1
42 SBSF3014C Tap. Screw Mecha + F. Cabi 3
43 VKZ4008-002 4 Amp + F. Cabi 2
44 GBSF3020C W. Tap. Screw Power Supply 2
45 VJA3006-00C Terescopic Ant. Ass’y 1
46 VYH5278-001 Ant. Connect 1
47 SDSP3012R Screw 1
48 VJH3028-00A Handle Ass’y 1
49,63 ZCRC660Y-CBR Rear Cabinet Ass’y 1
49 VJC1299-101 Rear Cabinet 1
50 VYSP102-009 Spacer 4
52 VYH5272-001 Handle Supporter(L} 1
53 VYH5273-001 a (R) 1
54 53738-1 Spring (S) 1
55 VYH5352-001 Battery Contact @ 1
56 VYH4104-002 * eo 1
57 VYSA1R4-050 Spacer 7
58 SBSF3016R Tap. Screw F. Cabi + R. Cabi 7
59 VKZ4008-002 e * 1
60~ 62,72 ZCRC660Y-BCA Batt Cover Ass’y 1
60 VJC2016-006 Battery Cover 1
61 VYSH106-020 Spacer 1
62 VYSA1R6-034 : 3
63 VYN5091-001 Name Plate RC-660LB 1
is * -010 “ f L 1
i z -003 ’ ‘ LD,LE 1
64 VJT3118-00B Door Ass’y 1
68 VXL4193-001 Tuning Knob 1
(No. 1533) 27
