JVC RX-5000VBK User Manual

6
VIDEO
AUDIO
LEFT
RIGHT
MONITOR
OUT
OUT
(REC)
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
DVD
VCR
VHS

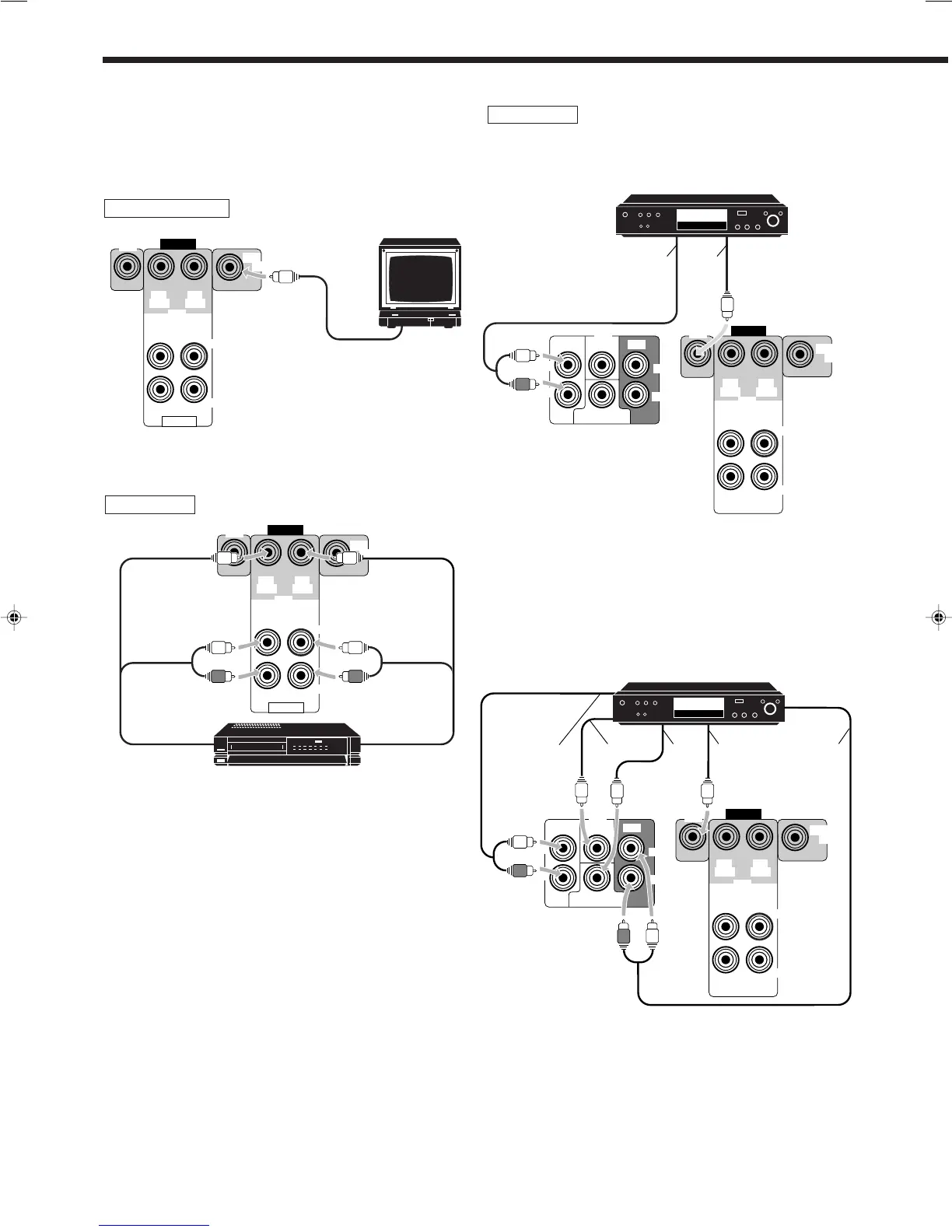

Video component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the
audio right jack and the yellow plug to the video jack.
TV (as the monitor)
VIDEO
AUDIO
LEFT
RIGHT
MONITOR
OUT
OUT
(REC)
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
DVD
VCR
TV (or Monitor)
To video input
To audio/video
input
To audio/video
output
VCR
VCR
DVD player
• When you connect the DVD player with stereo output jacks:
DVD player
VIDEO
LEFT
RIGHT
MONITOR
OUT
OUT
(REC)
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
DVD
VCR
L
R
LEFT
FRONT CENTER REAR
RIGHT
SUBWOOFER
DVD
DVD
Å ı
Å To front left/right channel audio output (or to audio mixed
output if necessary)
ı To video output
• When you connect the DVD player with its analog discrete output
(5.1 CH reproduction) jacks:
VIDEO
LEFT
RIGHT
MONITOR
OUT
OUT
(REC)
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
DVD
VCR
L
R
LEFT
FRONT CENTER REAR
RIGHT
SUBWOOFER
DVD
Å
ı ljÎ
DVD
DVD player
Å To front left/right channel audio output
ı To center channel audio output
Ç To subwoofer audio output
Î To video output
‰ To rear left/right channel audio output
EN01-07.RX-5000V[J]/F 99.10.29, 9:39 AM6
