JVC RX-5040B Service Manual

1-6 (No.MB269)

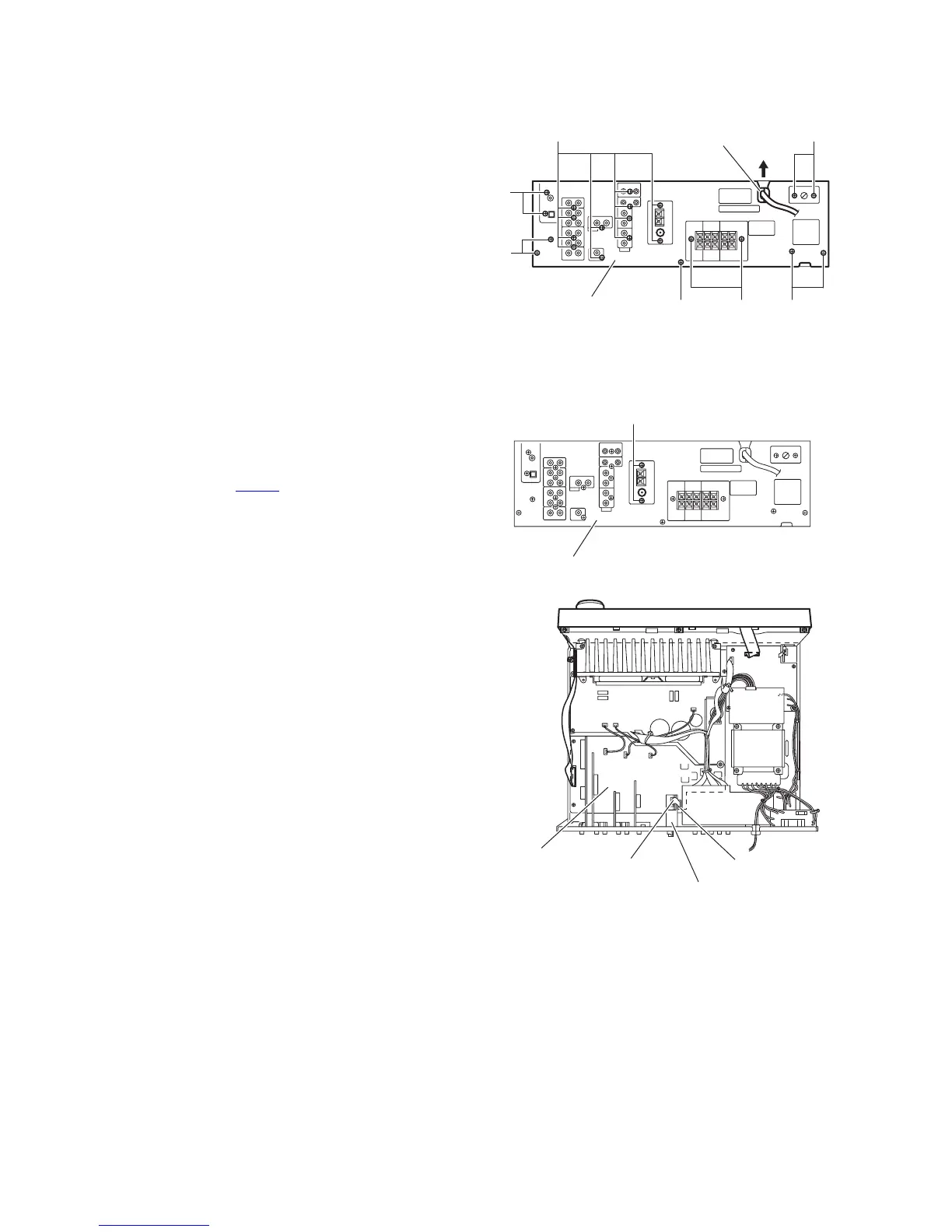

3.3 Removing the rear panel
(See Fig.4)
• Prior to performing the following procedures, remove the top
cover.
(1) From the back side of the main body, remove the strain re-
lief from the rear panel in the direction of the arrow.
(2) Remove the twenty-one screws E attaching the rear panel.
(3) Remove the two screws F attaching the rear panel.
Fig.4
3.4 Removing the tuner
(See Figs.5 and 6)
• Prior to performing the following procedures, remove the top
cover.
(1) From the back side of the main body, remove the two
screws G attaching the tuner to the rear panel. (See Fig.5.)
(2) From the top side of the main body, disconnect the card
wire from the connector CN411
on the front board. (See
Fig.6.)
(3) Take out the tuner.
Fig.5
Fig.6
E
E
E
EEE
Strain relief
Rear panel
F
G
Rear panel
Card wire
CN411
Front board
Tuner
