9
DVD player
DVD player
Only for RX-6040B/RX-6042S

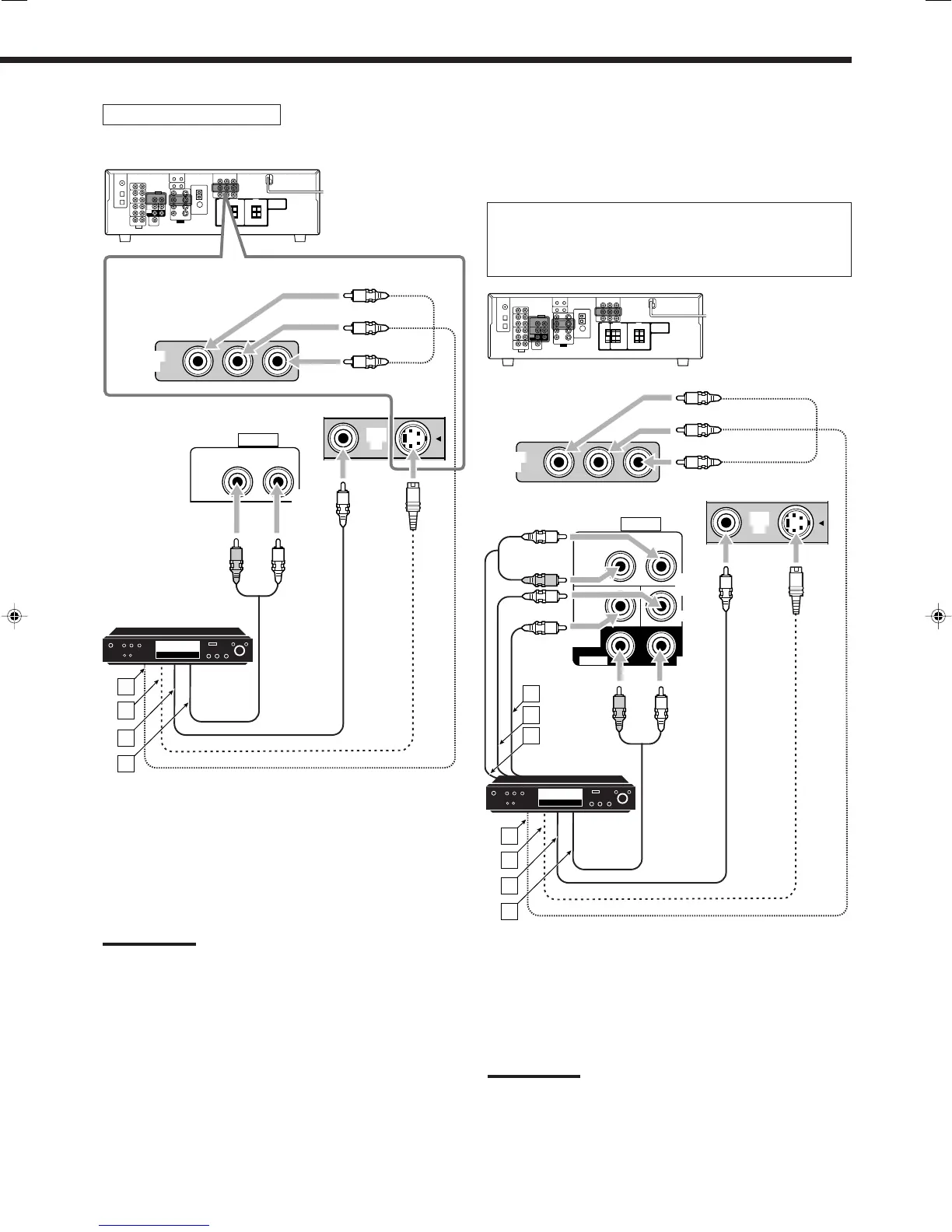

When you connect a DVD player with its analog discrete
output (5.1-channel reproduction) jacks:
This connection is the best connection method for enjoying
DVD Audio sounds.
When a DVD Audio disc is played back, the original high-
quality sounds can be reproduced only using this connection.
Å To subwoofer output
ı To center channel audio output
Ç To left/right front channel audio output
Î To component video output
To S-video output
Ï To composite video output
Ì To left/right surround channel audio output
Note:
When connecting a DVD player to the component video input jacks,
make the component video input setting (VIDEO IN DVD) correctly for
AV COMPU LINK. See page 22 for details.
Only for RX-6040B/RX-6042S
DVD player
When you connect a DVD player with stereo output jacks:
Å To component video output
ı To S-video output
Ç To composite video output
Î To left/right front channel audio output (or to audio-mixed
output if necessary)
Notes:
For RX-6040B/RX-6042S: When connecting a DVD player to the
component video input jacks, make the component video input
setting (VIDEO IN DVD) correctly for AV COMPU LINK. See page
22 for details.
To enjoy Dolby Digital and DTS multi-channel software (including
Dual Mono software), connect the DVD player through the digital
input/output terminals.
DVD
IN
DVD
IN
DVD
A
B
C
D
RIGHT LEFT
FRONT
SUB
WOOFER
AUDIO
RIGHT
SURR
LEFT
CENTER
DVD
IN
R
L
Green
Red
Blue
DVD
IN
DVD
IN
DVD
R
L
L
A
B
C
E
D
F
G
RIGHT LEFT
FRONT
SUB
WOOFER
AUDIO
RIGHT
SURR
LEFT
DVD
IN
CENTER
R
Green
Red
Blue
