4

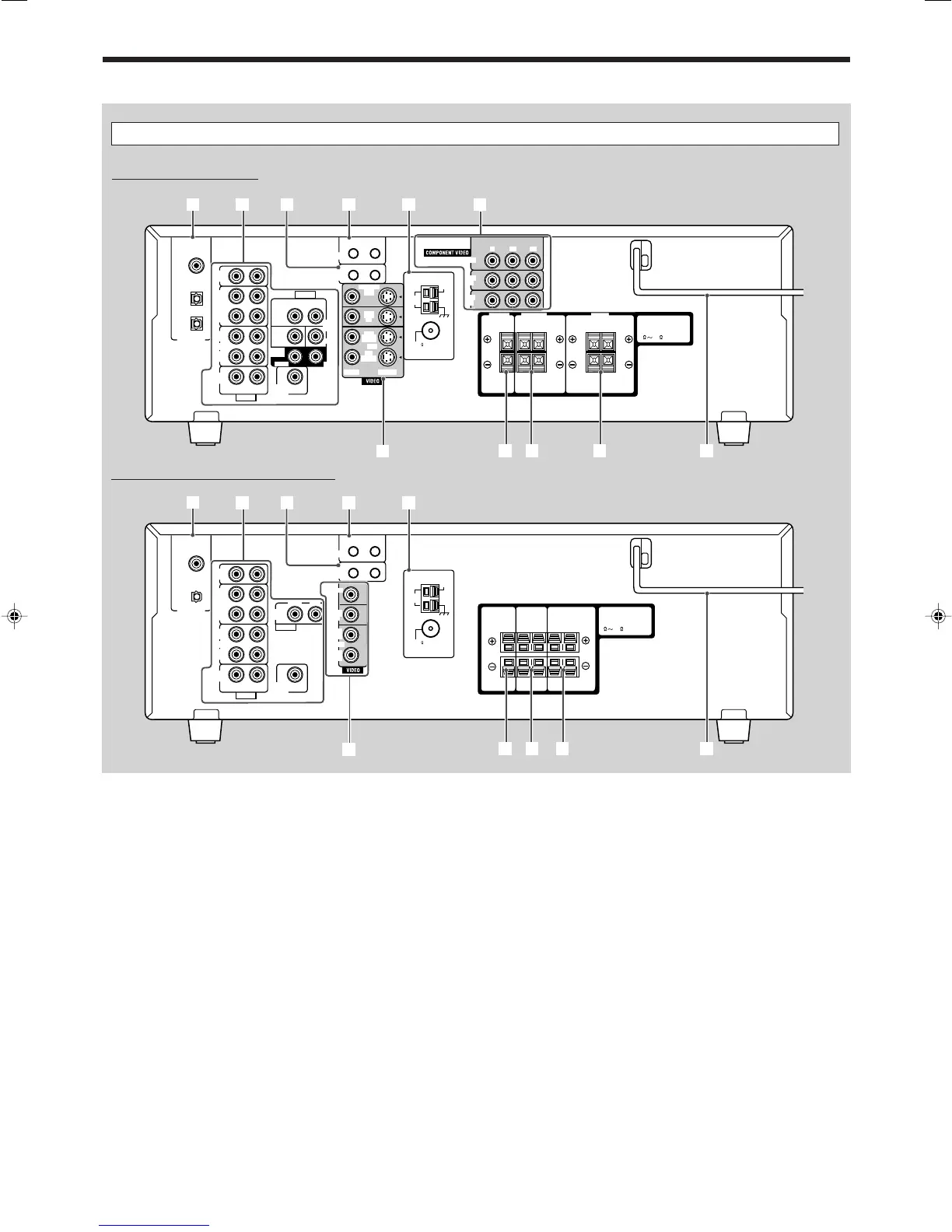

Rear Panel
RX-6040B/RX-6042S
Rear Panel
See pages in parentheses for details.
1 DIGITAL IN terminals (10)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD)
DIGITAL 3 (TV): only for RX-6040B/RX-6042S
2 Audio input/output jacks (7 – 9)
• Input: CD IN, TAPE/CDR IN (PLAY), VCR IN (PLAY),
TV SOUND IN, DVD IN
• Output: TAPE/CDR OUT (REC), VCR OUT (REC),
SUBWOOFER OUT
3 COMPU LINK-4 (SYNCHRO) jacks (30)
4 For RX-6040B/RX-6042S:
AV COMPU LINK-III jacks (31)
For RX-5040B/RX-5042S/RX-5045B:
AV COMPU LINK jacks (31)
RX-5040B/RX-5042S/RX-5045B
5 ANTENNA terminals (5, 6)
6 Only for RX-6040B/RX-6042S:
COMPONENT VIDEO input/output jacks (8, 9)
• Input: DVD IN, VCR IN
• Output: MONITOR OUT
7 For RX-6040B/RX-6042S:
VIDEO/S-VIDEO input/output jacks (8, 9)
For RX-5040B/RX-5042S/RX-5045B:
VIDEO input/output jacks (8, 9)
• Input: DVD IN, VCR IN (PLAY)
• Output: MONITOR OUT, VCR OUT (REC)
8 CENTER SPEAKER terminals (6)
9 SURROUND SPEAKERS terminals (6)
p FRONT SPEAKERS terminals (6)
q AC power cord (10)
Parts Identification
CAUTION :
SPEAKER IMPEDANCE
AM
LOOP
AM
EXT
CD
IN
OUT
(REC)
IN
(PLAY)
OUT
(REC)
VCR
TV SOUND
IN
AV
COMPU LINK-
III
COMPU LINK-4
(SYNCHRO)
ANTENNA
CENTER
SPEAKER
SURROUND
SPEAKERS
RIGHT LEFT
FRONT
SPEAKERS
RIGHT LEFT
AUDIO
RIGHT LEFT
IN
(PLAY)
TAPE
/CDR
DIGITAL 1
DIGITAL 2 ( CD )
DIGITAL IN
(DVD)
DIGITAL 3 ( TV )
SUBWOOFER
OUT
RIGHT LEFT
FRONT
SUB
WOOFER
AUDIO
COAXIAL
FM 75
816
RIGHT
SURR
LEFT
MONITOR
OUT
DVD
IN
OUT
(REC)
VCR
IN
(PLAY)
VIDEO S-VIDEO
DVD
IN
VCR
IN
MONITOR OUT
DVD
IN
CENTER
YP
B
P
R
7
36145
q89 p
2
CAUTION :
SPEAKER IMPEDANCE
AM
LOOP
AM
EXT
CD
IN
OUT
(REC)
IN
(PLAY)
OUT
(REC)
VCR
TV SOUND
IN
AV
COMPU LINK
COMPU LINK-4
(SYNCHRO)
ANTENNA
CENTER
SPEAKER
SURROUND
SPEAKERS
RIGHT LEFT
FRONT
SPEAKERS
RIGHT LEFT
AUDIO
RIGHT LEFT
IN
(PLAY)
TAPE
/CDR
DIGITAL 1
DIGITAL 2 ( CD )
DIGITAL IN
(DVD)
SUBWOOFER
OUT
AUDIO
COAXIAL
FM 75
816
MONITOR
OUT
DVD
IN
OUT
(REC)
VCR
IN
(PLAY)
DVD
IN
RIGHT LEFT
3145
q89 p
2
7
01-10_5040&6040[J]f.p65 03.12.19, 4:124
