5
English
AM
LOOP
AM
EXT
ANTENNA
COAXIAL
FM 75
CENTER
SPEAKER
SURROUND
SPEAKERS
RIGHT
LEFT
FRONT
SPEAKERS
RIGHT
LEFT
CAUTION :
SPEAKER IMPEDANCE
8
16
+
+
To center speaker
To right front speaker
To right surround speaker
To left surround
speaker
To left
front speaker
RIGHT
LEFT
+
1
2
3
4

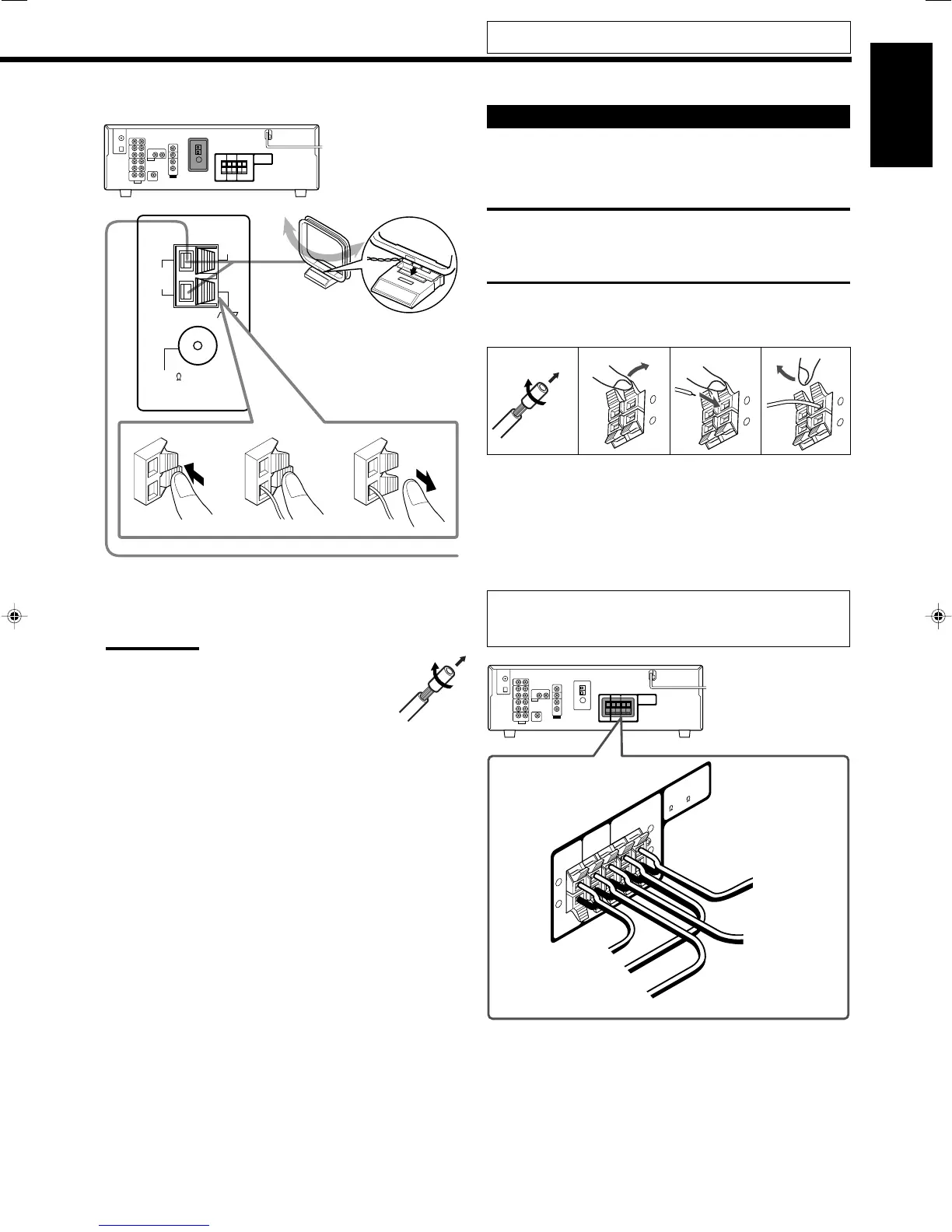

AM antenna connections
Turn the loop until you have the best reception.
Notes:
If the AM loop antenna wire is covered with vinyl,
remove the vinyl by twisting it as illustrated.
Make sure the antenna conductors do not touch any
other terminals, connecting cords and power cord.
This could cause poor reception.
If reception is poor, connect an outdoor single vinyl-covered wire
(not supplied) to the AM EXT terminal. (Keep the AM loop antenna
connected.)
AM Loop Antenna
(supplied)
Outdoor single vinyl-covered wire (not supplied)
Snap the tabs on the loop into
the slots of the base to
assemble the AM loop
antenna.
1
23
Connecting the Speakers and Subwoofer
You can connect five speakers (a pair of front speakers, a center
speaker, and a pair of surround speakers) and a subwoofer.
CAUTIONS:
Use only the speakers of the SPEAKER IMPEDANCE
indicated by the speaker terminals.
Do not connect more than one speaker to each speaker
terminal.
Connecting the speakers
1 Twist and remove the insulation at the end of
each speaker cord.
2 Press and hold the clamp of the speaker terminal.
3 Insert the speaker cord.
4 Release the finger from the clamp.
For each speaker (except for a subwoofer), connect the (+) and
(–) terminals on the rear panel to the (+) and (–) terminals
marked on the speakers.
RIGHT
LEFT
+
RIGHT
LEFT
+
Do not connect the AC power cord until all other connections
have been made.
