3
Remote Control
AUDIO
TV/CATV
VCR
DVD
TEST
EFFECT
MENU
ENTER LEVEL
RETURN
SURROUND
/DSP
CD
-
DISC
SLEEP
REC PAUSE
FM MODE SURROUND DSP
DIMMER TV/VIDEO MUTING
OFF
VCR CH
TV/CATV CH
VOLUME
SURR R SURR L
SUBWFR CENTER
FRONT R FRONT L
100
1
4
7/P
10
2
5
8
0
3
6
9
10
TV VOLUME
STANDBY/ON
TV CATV
A/V CONTROL
RECEIVER
TAPE/CDR CD DVD
FM/AM TV SOUND VCR
ANALOG
/DIGITAL
REW
FF
2
5
=
$
%
#
@
^
4
8
7
0
-
*
&
6
9
~
3
1
!

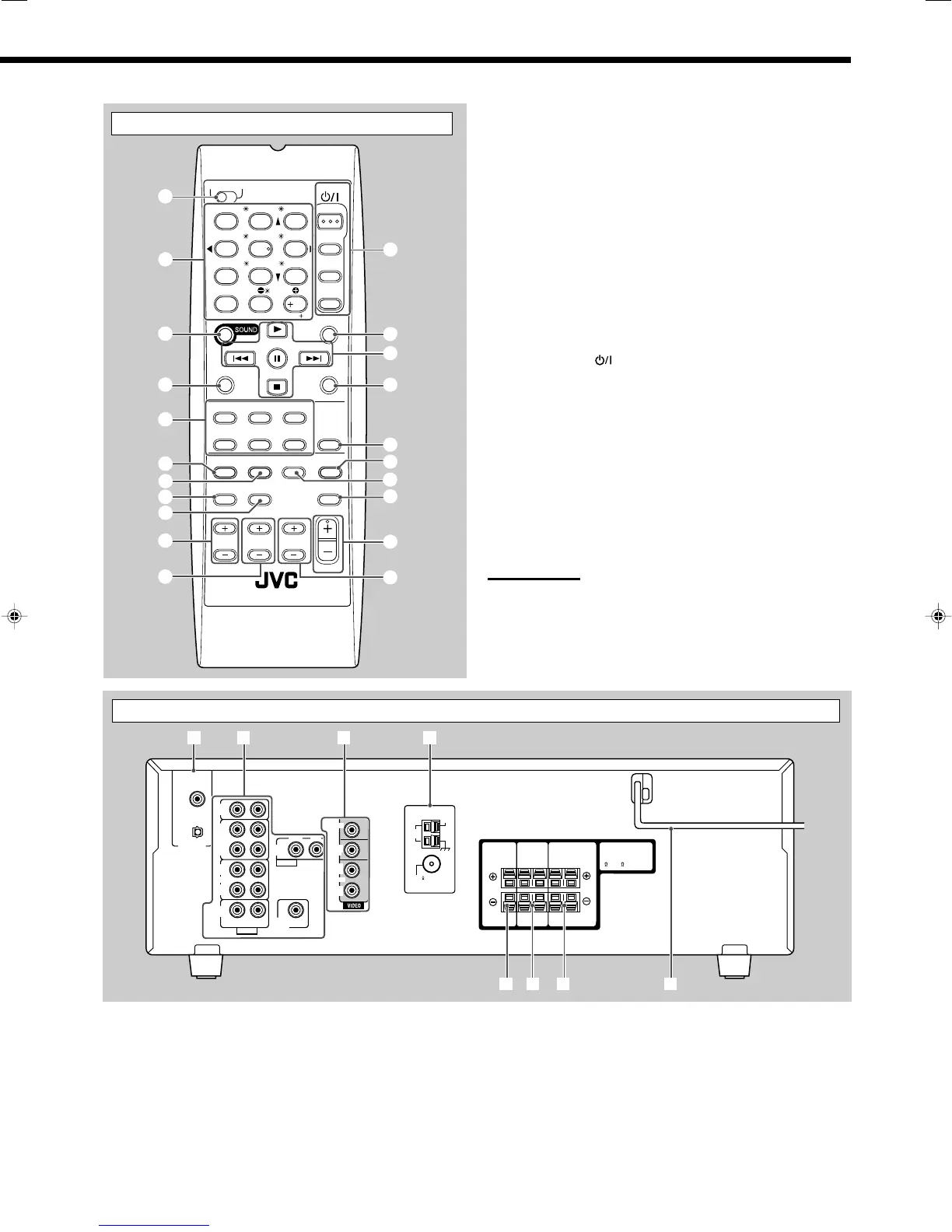

See pages in parentheses for details.
1 TV/CATV selector (30)
2 10 keys for selecting preset channels (15, 28)
10 keys for sound adjustment (22, 28)
10 keys for operating audio/video components (28 – 30)
3 SOUND button (22, 28)
4 REC PAUSE button (29, 31)
5 Source selection buttons (9, 10)
TAPE/CDR, CD, DVD, FM/AM, TV SOUND, VCR
6 FM MODE button (15, 28)
7 SURROUND button (25, 28)
8 DIMMER button (12, 28)
9 TV/VIDEO button (29, 30)
0 VCR CH +/– buttons (29, 31)
- TV/CATV CH +/– buttons (29, 30)
= STANDBY/ON
buttons (9, 28 – 31)
AUDIO, TV/CATV, VCR, DVD
~ SLEEP button (13, 28)
! Operating buttons for audio/video components
3, 8, 7, ¢/4, FF/REW (28, 29, 31)
@ CD-DISC button (29)
# ANALOG/DIGITAL button (11, 12, 28)
$ SURROUND/DSP OFF button (25, 27, 28)
% DSP button (26 – 28)
^ MUTING button (13, 28)
& VOLUME +/– button (10, 28)
* TV VOLUME +/– buttons (29, 30)
Note:
When you press the one of the audio source selection buttons—
TAPE/CDR, CD, and FM/AM—on the remote control, the receiver
automatically turns on.
Rear Panel
CAUTION :
SPEAKER IMPEDANCE
AM
LOOP
AM
EXT
CD
IN
OUT
(REC)
IN
(PLAY)
OUT
(REC)
VCR
TV SOUND
IN
ANTENNA
CENTER
SPEAKER
SURROUND
SPEAKERS
RIGHT LEFT
FRONT
SPEAKERS
RIGHT LEFT
AUDIO
RIGHT LEFT
IN
(PLAY)
TAPE
/CDR
DIGITAL 1
DIGITAL 2 ( CD )
DIGITAL IN
(DVD)
SUBWOOFER
OUT
AUDIO
COAXIAL
FM 75
816—
MONITOR
OUT
DVD
IN
OUT
(REC)
VCR
IN
(PLAY)
DVD
IN
RIGHT LEFT
14
85 67
2 3
See pages in parentheses for details.
1 DIGITAL IN terminals (8)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD)
2 AUDIO input/output jacks (6, 7)
• Input: CD IN, TAPE/CDR IN (PLAY), VCR IN (PLAY),
TV SOUND IN, DVD IN
• Output: TAPE/CDR OUT (REC), VCR OUT (REC),
SUBWOOFER OUT
3 VIDEO input/output jacks (7)
• Input: DVD IN, VCR IN (PLAY)
• Output: MONITOR OUT, VCR OUT (REC)
4 ANTENNA terminals (4, 5)
5 CENTER SPEAKER terminals (5)
6 SURROUND SPEAKERS terminals (5)
7 FRONT SPEAKERS terminals (5)
8 AC power cord (8)
