4
English
Turn the loop until you have the best reception.
Notes:
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. This could cause poor
reception.
• If reception is poor, connect an outdoor single vinyl-covered wire to
the AM EXT terminal. (Keep the AM (MW/LW) loop antenna
connected.)
Connecting the Speakers
You can connect the following speakers:
• Two pairs of front speakers to produce normal stereo sound.
• One pair of rear speakers to enjoy the surround effect.
• One center speaker to produce more effective surround effect (to
emphasize human voices).
• One subwoofer to enhance the bass.
IMPORTANT:
After connecting the speakers listed above, set the speaker setting
information properly to obtain the best possible DSP effect. For
details, see page 11.
For each speaker (except for a subwoofer), connect the (–) and (+)
terminals on the rear panel to the (–) and (+) terminals marked on
the speakers. For connecting a subwoofer, see page 5.

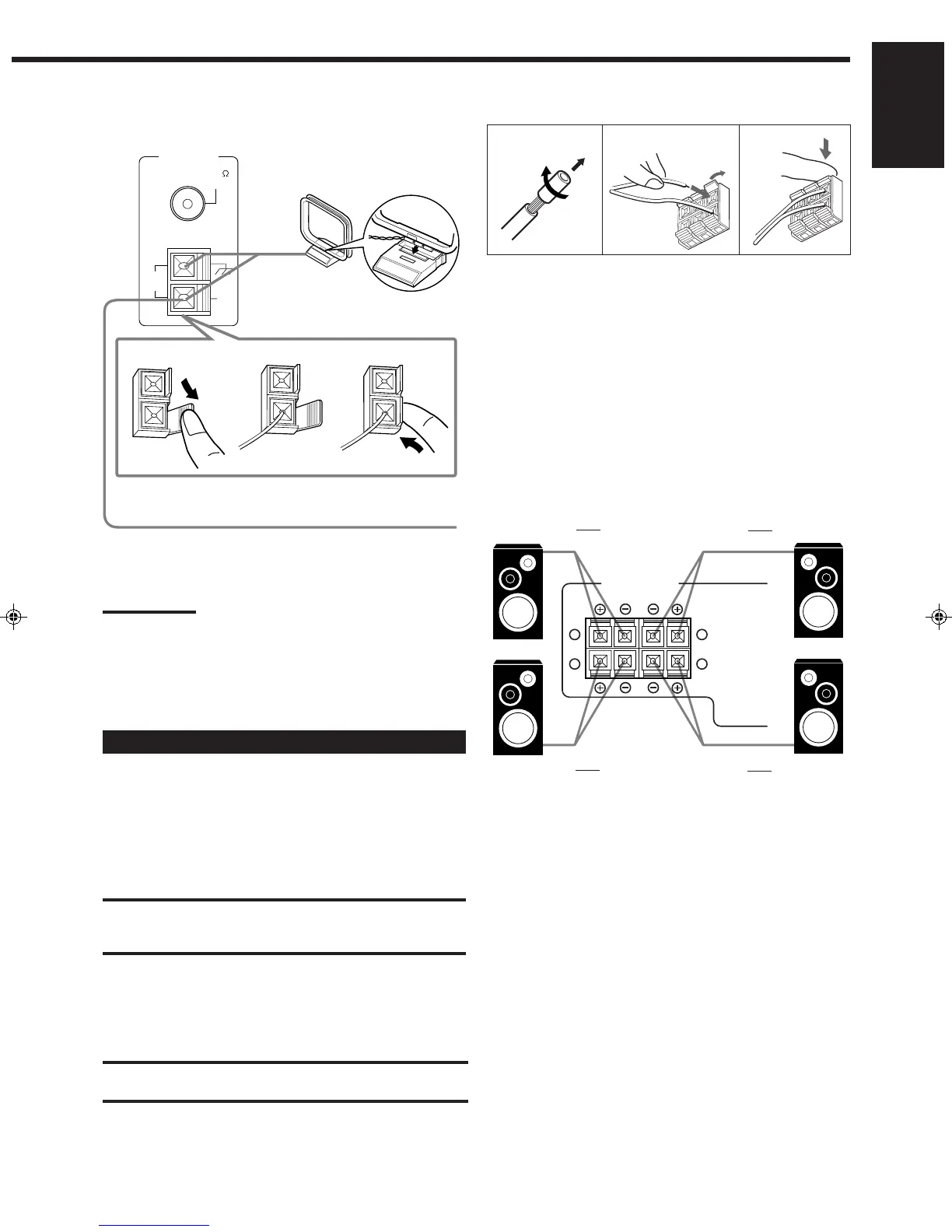

AM (MW/LW) Antenna Connections
AM (MW/LW) Loop Antenna
Snap the tabs on the loop into the
slots of the base to assemble the
AM (MW/LW) loop.
Basic connecting procedure
1 Cut, twist and remove the insulation at the end of
each speaker signal cable.
2 Open the terminal and then insert the speaker
signal cable.
3 Close the terminal.
Connecting the front speakers
You can connect two pairs of front speakers (one pair to the FRONT
SPEAKERS 1 terminals, and another pair to the FRONT
SPEAKERS 2 terminals).
2
1
3
FRONT SPEAKERS 1 Left speaker
Right speaker
FRONT SPEAKERS 2
Left speaker
Right speaker
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.
Outdoor single vinyl-covered wire
RIGHT LEFT
FRONT SPEAKERS
1
2
1
2
ANTENNA
AM
EXT
AM
LOOP
FM 75
COAXIAL
2
3
1
EN01-07.RX-558R[E]/1 99.1.28, 8:37 PM4
