5
English
AUDIO
PHONO
TAPE/MDCD
OUT
(REC)
IN
(PLAY)
L
R
ANTENNA
AM
EXT
AM
LOOP
FM 75
COAXIAL
Turntable
If an earth cable is
provided for your
turntable, connect the
cable to the ground
terminal (
H
) of the
ANTENNA terminals
on the rear panel.
Turntable
To audio output
Note:
Any turntables incorporating a small-output cartridge such as an MC
(moving-coil type) must be connected to this receiver through a
commercial head amplifier or step-up transformer. Direct connection
may result in insufficient volume.
To audio output
CD player
AUDIO
PHONO
TAPE/MDCD
OUT
(REC)
IN
(PLAY)
L
R
CD player

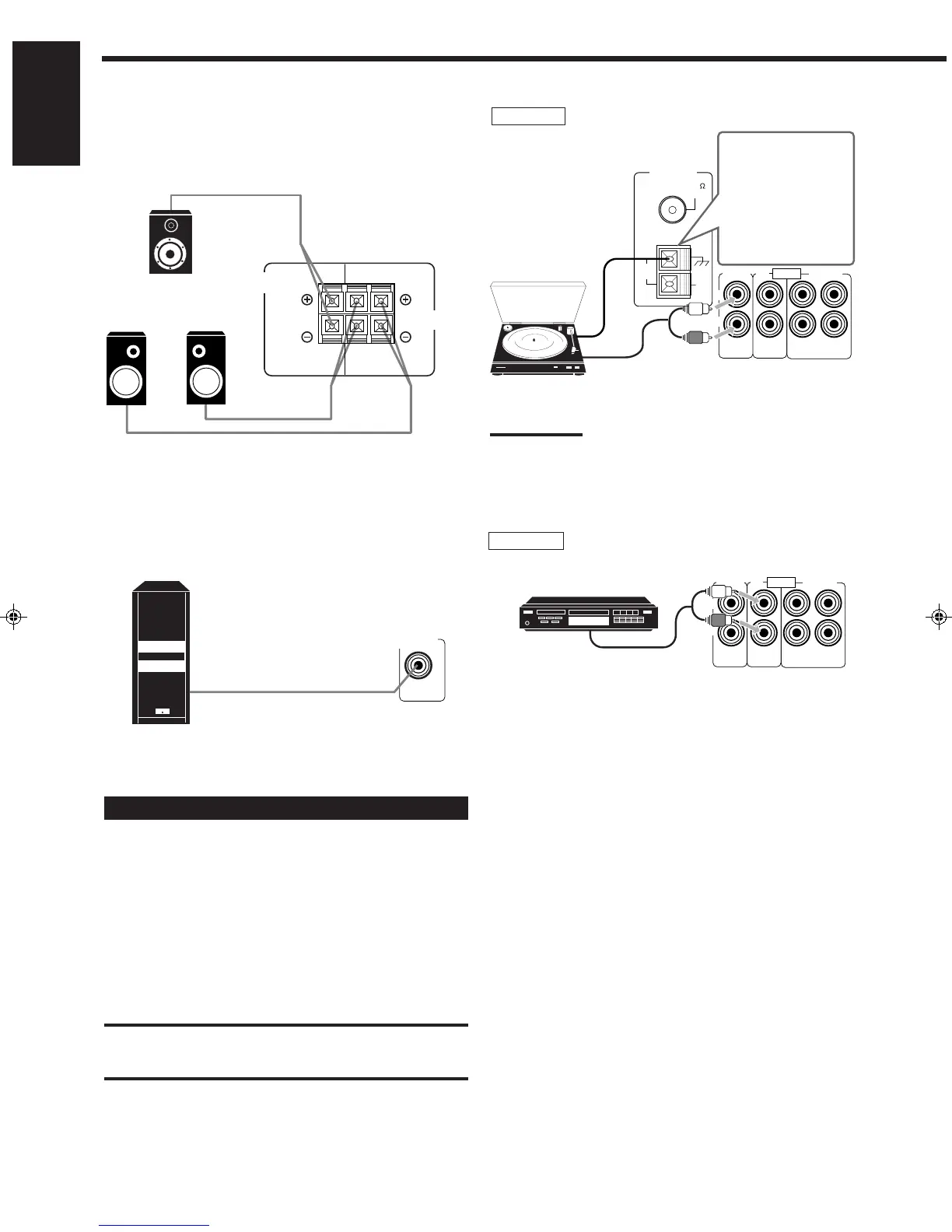

Connecting the rear and center speakers
Connect rear speakers to the REAR SPEAKERS terminals and a
center speaker to the CENTER SPEAKER terminals.
Center speaker
Left rear
speaker
Right rear
speaker
RIGHT LEFT
REAR
SPEAKERS
CENTER
SPEAKER
Powered subwoofer
Connecting Other Components
You can connect the following audio/video components to this
receiver using cables with RCA pin plugs (not supplied). Refer also
to the manuals supplied with your components.
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the
audio right jack.
Audio component connections
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with
RCA pin plugs.
SUBWOOFER
OUT
EN01-07.RX-558R[E]/1 99.1.28, 8:37 PM5
