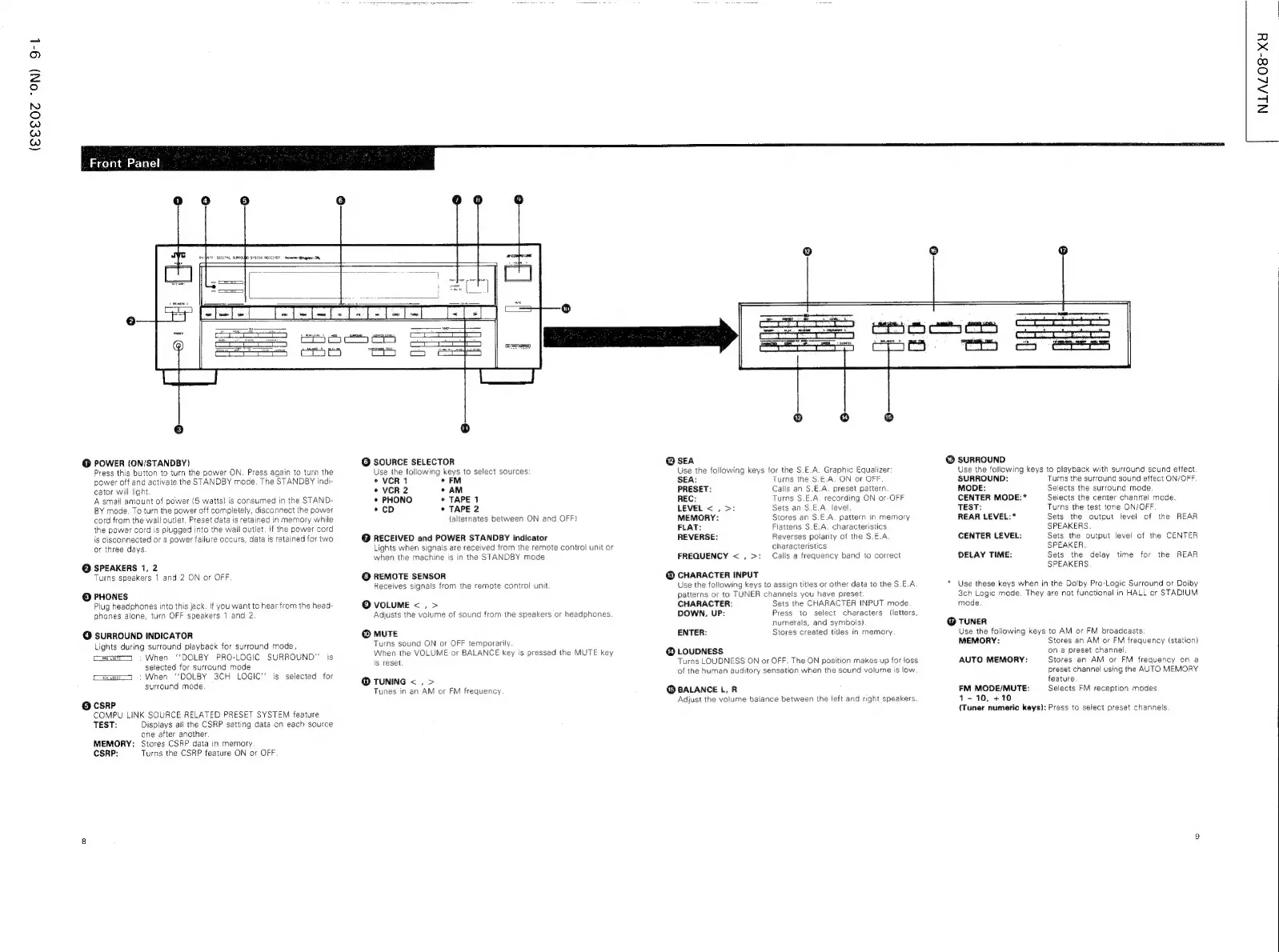

JVC RX-807VTN

(EEEOT “ON) O-L
@ POWER (ON/STANDBY)
Press this button to turn the power ON. Press again to turn the
power off and activate the STANDBY mode. The STANDBY indi-
cator will light.
A smatl amount of power (5 watts) is consumed in the STAND-
BY mode. To turn the power off completely, disconnect the power
cord from the wall outlet, Preset data is retained in memory while
the power cord is plugged into the wall outlet. Hf the power cord
is disconnected or a power failure occurs, data is retained for two
or three days.
@ SPEAKERS 1, 2
Turns speakers 1 and 2 ON or OFF.
© PHONES
Plug headphones into this jack. If you want to hear from the head-
phones alone, turn OFF speakers 1 and 2
@ SURROUND INDICATOR
Lights during surround playback for surround mode,
When ‘‘DOLBY PRO-LOGIC SURROUND’ is
selected for surround mode
: When “DOLBY 3CH LOGIC” is selected for
surround mode
© CSRP
COMPU LINK SOURCE RELATED PRESET SYSTEM feature
TEST: Displays ait the CSRP setting data on each source
one after another
MEMORY: Stores CSRP data in memory
CSRP: Turns the CSRP feature ON or OFF
®
@ SOURCE SELECTOR
Use the following keys to select sources
* VCR 1 ° FM
* VCR 2 ° AM
¢ PHONO © TAPE 1
*cD © TAPE 2
(alternates between ON and OFF)
@ RECEIVED and POWER STANDBY indicator
Lights when signals are received from the remote control unit or
when the machine is in the STANDBY mode
© REMOTE SENSOR
Receives signals from the remote control unit
© VOLUME < , >
Adjusts the volume of sound frorn the speakers or headphones
@ MUTE
Turns sound ON or OFF temporarily
When the VOLUME or BALANCE key is pressed the MUTE key
is reset
@ TUNING < , >
Tunes in an AM or FM frequency
@ SEA
Use the following keys for the S.E.A. Graphic Equalizer
SEA: Turns the S.E.A. ON or OFF
PRESET: Calls an S.E.A. preset pattern.
REC: Turns S.E.A. recording ON or-OFF
LEVEL < , >: Sets an S.E.A. level
MEMORY: Stores an S.£.A. pattern in memory
FLAT: Flattens S.E.A. characteristics
REVERSE: Reverses polarity of the S.£.A
characteristics
FREQUENCY <, >: Calls a frequency band to correct
@ CHARACTER INPUT
Use the following keys to assign titles or other data to the S.E.A
patterns or to TUNER channels you have preset
CHARACTER: Sets the CHARACTER INPUT mode
DOWN, UP: Press to select characters (letters,
numerals, and symbols)
ENTER: Stores created titles in memory
@ LOUDNESS
Turns LOUDNESS ON or OFF. The ON position makes up for loss
of the human auditory sensation when the sound volume is low
@ BALANCE L, R
Adjust the volume balance between the left and right speakers.
@ SURROUND
Use the following keys to playback with surround scund effect
SURROUND: Turns the surround sound effect ON/OFF,
MODE: Selects the surround mode
CENTER MODE:* Selects the center chanriel mode.
TEST: Turns the test tone ON/OFF.
REAR LEVEL:* Sets the output level of the REAR
SPEAKERS.
CENTER LEVEL: Sets the output level of the CENTER
SPEAKER.
DELAY TIME: Sets the delay time for the REAR
SPEAKERS
* Use these keys when in the Dolby Pro-Logic Surround or Dolby
3ch Logic mode. They are not functional in HALL or STADIUM
mode.
@ TUNER
Use the following keys to AM or FM broadcasts:
MEMORY: Stores an AM or FM frequency (station)
on a preset channel.
Stores an AM or FM frequency on a
preset channel using the AUTO MEMORY
feature
FM MODE/MUTE: Selects FM reception modes
1-10, +10
(Tuner numeric keys): Press to select preset channels
AUTO MEMORY:
