JVC RX-D201S Service Manual

(No.MB364)1-11
3.1.9 Removing the power transformer
(See Fig.9)
• Remove the top cover.
(1) From the top side of the main body, remove the tie bands
bundling the wires.
Reference:
After reassembling, bundle the wires with the new tie
bands as before.
(2) Release the wire holder to remove the wire.
(3) Disconnect the wires from the connectors (CN106
, CN111)
on the main amplifier board.
(4) Remove the soldered sections d and remove the wires.
(5) Remove the four screws Q and take out the power trans-
former from the main body.
3.1.10 Removing the trans primary board
(See Fig.9)
• Remove the top cover.
(1) From the right side of the main body, remove the wires from
the soldered sections d and remove the wires.
(2) Remove the solders from the soldered sections e and re-
move the trans primary board.
3.1.11 Removing the trans secondary board
(See Fig.9)
• Remove the top cover.
(1) From the top side of the main body, remove the tie bands
bundling the wires.
Reference:
After reassembling, bundle the wires with the new tie
bands as before.
(2) Release the wire holder to remove the wire.
(3) Disconnect the wires from the connectors (CN106
, CN111)
on the main amplifier board.
(4) From the right side of the main body, remove the solders
from the soldered sections f and remove the trans second-
ary board.
Reference:
Take out the power transformer from the main body as re-
quired.

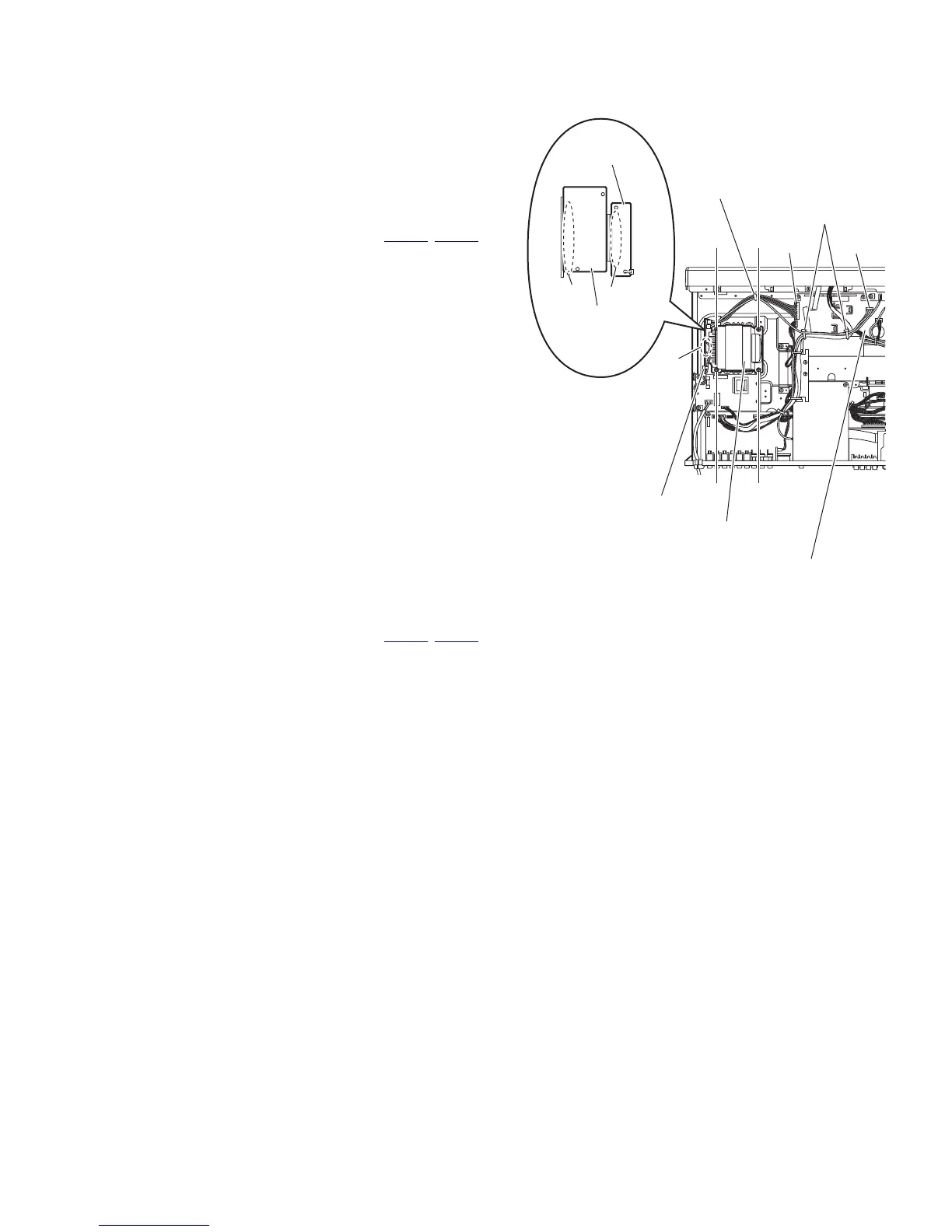

Fig.9
Tie bands
Tie band
d
Wire holder
Power transformer
Q
CN106
Main amplifier board
Q
CN11
Q
e
f
Trans primary
board
Trans secondary
board
Q
