(No.MB364)1-7
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the top cover
(See Figs.1 and 2)
(1) From the both sides of the main body, remove the four
screws A attaching the top cover. (See Fig.1)
(2) From the back side of the main body, remove the six
screws B attaching the top cover. (See Fig.2)
(3) Remove the top cover in the direction of the arrow. (See
Fig.1.)

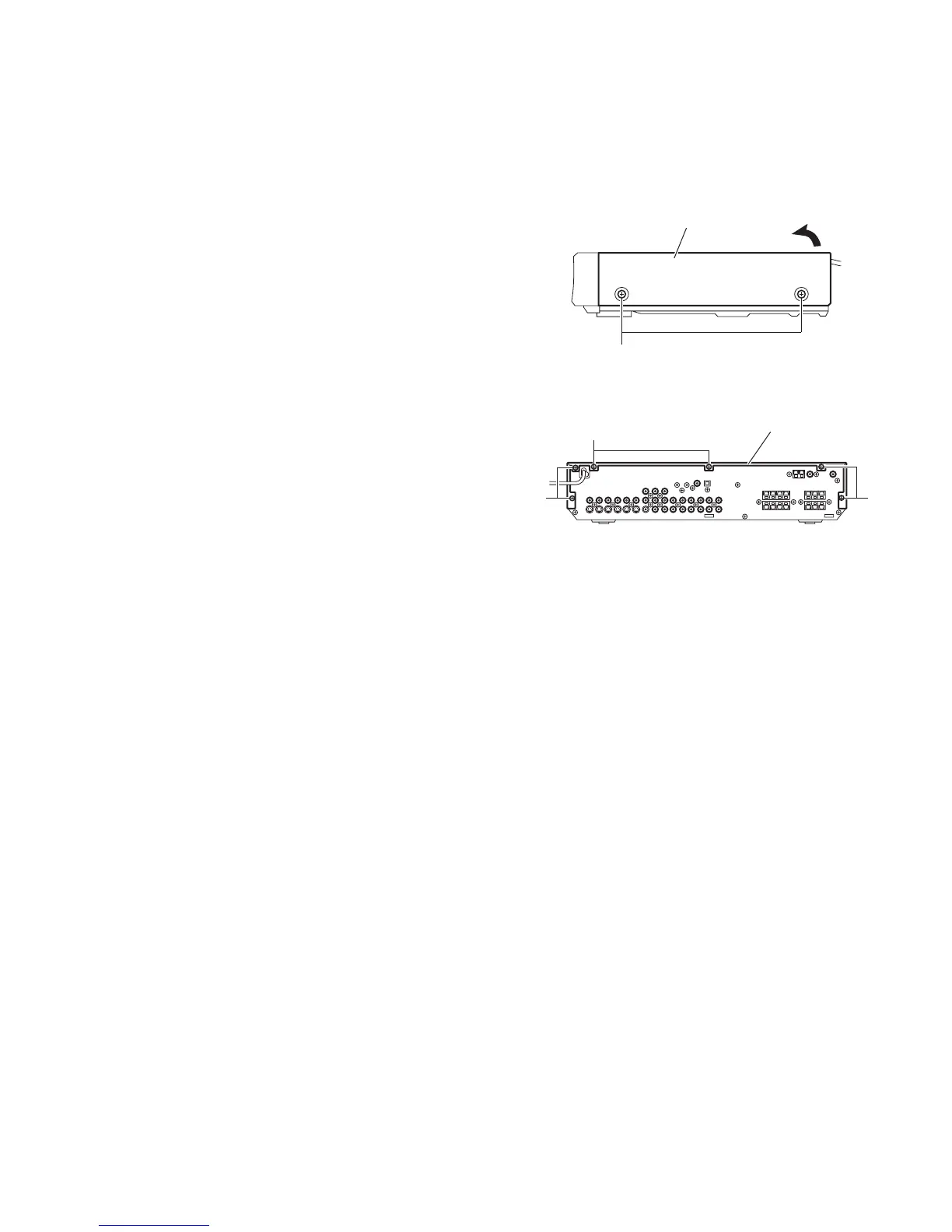

Fig.1
Fig.2
A
Top cover
B
Top cover
B B
