3.1.2 Removing the front panel assembly
(See Figs.3 and 4)
• Remove the top cover.
(1) From the top side of the main body, remove the tie bands
bundling the wires. (See Fig.3.)
Reference:
After reassembling, bundle the wires with the new tie
bands as before. (See Fig.3.)
(2) Disconnect the card wire from the connector CN102
on the
main amplifier board. (See Fig.3)
(3) Disconnect the wire from the connector CN351
on the main
amplifier board. (See Fig.3)
(4) Disconnect the wire from the connector CN552
on the input
board. (See Fig.3)
(5) Disconnect the wire from the connector CN661
on the DSP
board. (See Fig.3)
(6) Remove the three screws C attaching the front panel as-
sembly. (See Fig.3)
(7) Remove the screw D attaching the OSD connect 2 board.
(See Fig.3)
(8) From the bottom side of the main body, remove the four
screws E attaching the front panel assembly. (See Fig.4)
(9) Release the joints a and remove the front panel assembly
in the direction of the arrow. (See Fig.4)

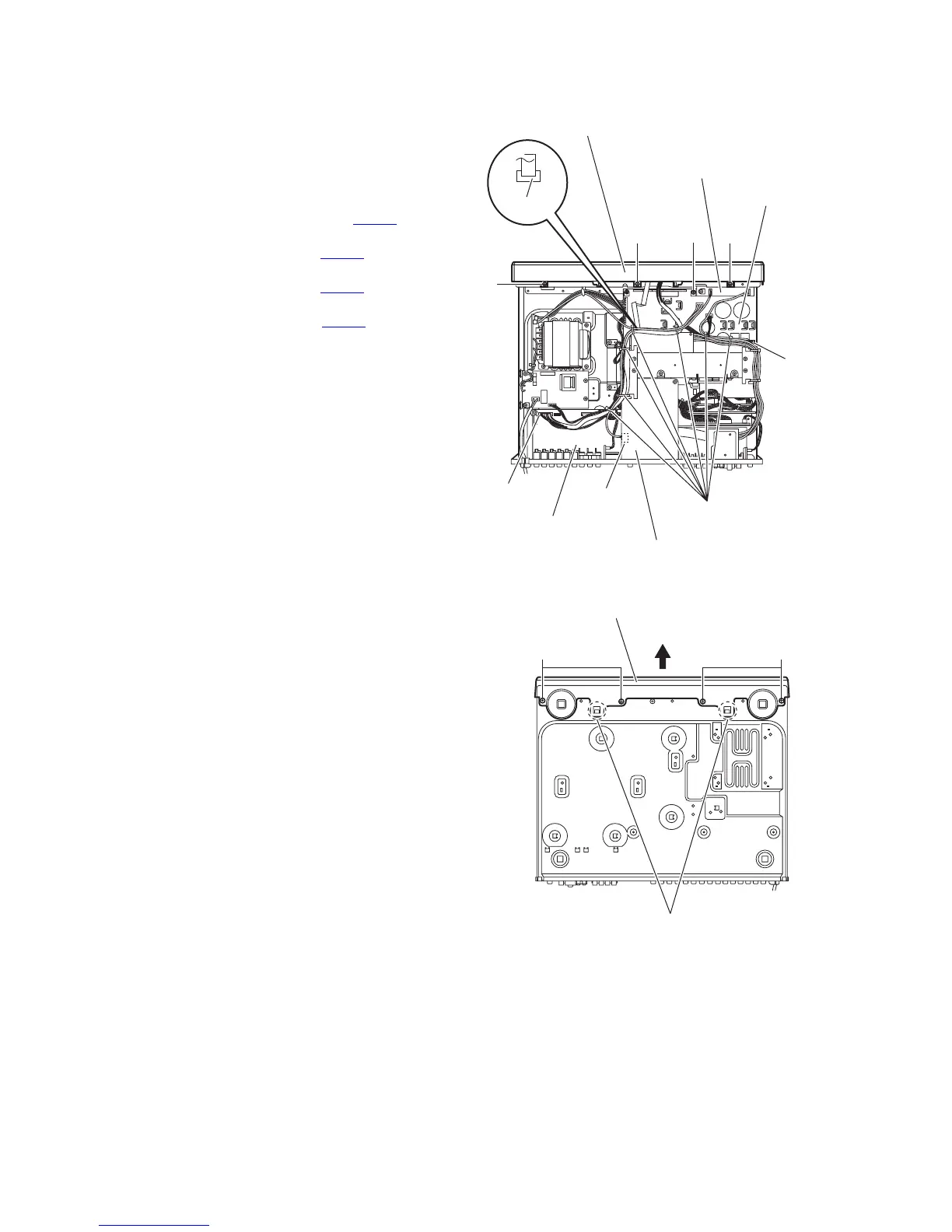

Fig.3
Fig.4
C
Front panel assembly
D
C
C
OSD connect 2 board
Main amplifier board
CN102
CN351
Tie bands
DSP board
CN552
Input board
CN661
E
Front panel assembly
E
a
