15
English

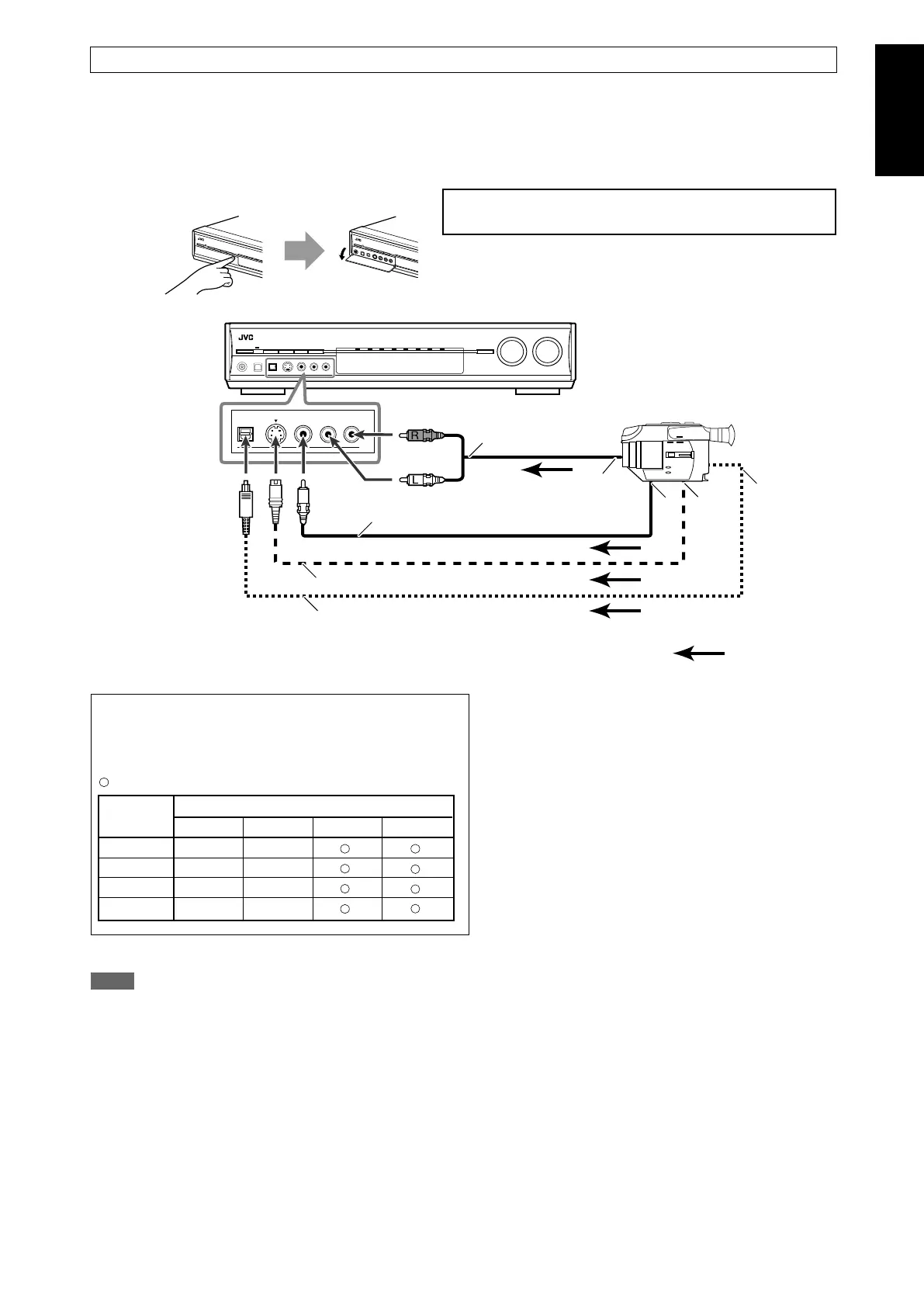

7 Connecting a video component to the AUX input jacks
The AUX input jacks on the front panel (inside the front door) are convenient when connecting and disconnecting the component
frequently.
Before making connections, press PUSH-OPEN to show the jacks.
To enjoy the playback from the component connected to these jacks, select “AUX” as the source (see page 19).
Å To left/right audio channel output
ı To composite video output
Ç To S-video output
Î To digital optical output
NOTE
Select the audio and video input setting according to the connection method. See page 20 for details.
Stereo audio cable
(not supplied)
Composite video cable (not supplied)
S-video cable (not supplied)
Digital optical cable (not supplied)
Video camera, etc.
: signal current
Available video input setting for each video output setting:
: Available –: Not available
HDMI CMPNT S C
HDMI – –
CMPNT – –
S––
C––
VIDEO INPUT
VIDEO
OUTPUT
Select the appropriate VIDEO INPUT (see page 20) according
to the connection you have made. If you do not, you cannot
view the playback picture on the TV.
How to open the front door
Red
White
Turn off all components before making connections.
• When you connect other components, refer also to their manuals.
Do not connect the AC power plug to the wall outlet until all connections are completed.
DIGITAL
S-VIDEO
VIDEO L – AUDIO – R
AUX
ı
Ç
Å
Î
09-15RX-D702B[C]_f.p65 05.9.14, 1:41 PM15
