JVC RX-DV3SL Service Manual

RX-DV3SL
1-15
MASTER VOLUME
DVD/SUPER VCD/VCD/CD
INPUT ATT. REC MODE
INPUT
ANALOG/DIGITA
L
COMPACT
SUPER VIDEO
SETTING ADJUST MEMORY
RX-DV3 HOME THEATER DVD/CD RECEIVER
ON/OFF
SURROUND
MODE
FM/AMTAPE/CDR
SOURCE NAME
TVVCRDBSDVD
CONTROL
STANDBY
STANDBY/ON
+
–
+
–
231
564
897
VFP
10/0 +10
100+ TV RETURN
VCRDBS DVD
TV/VIDEO REW/ TUNING
/FF
REPEAT SLEEP
VCRDBS TV AUDIO
TAPETV CDR FM/AM
FM MODE STROBE
EFFECT
– TV/DBS CH +
ANALOG
/DIGITAL
TEST
AUDIO
INPUT
SUBTITLE
CHOICE
ENTER
ON SCREEN
ANGLE
ZOOM
DIGEST TOP MENU MENU
RETURN
SURR ON/OFF
SURR MODE
DIMMER
MUTING
TV VOL VOLUME
– SUBWOOFER +
HOME THEATER
DVD/CD RECEIVER
SOUND
STANDBY/ON
CENTER
REAR·L
REAR·R
REMOTE CONTROL RM-SRXDV3J
PROGRESSIVE

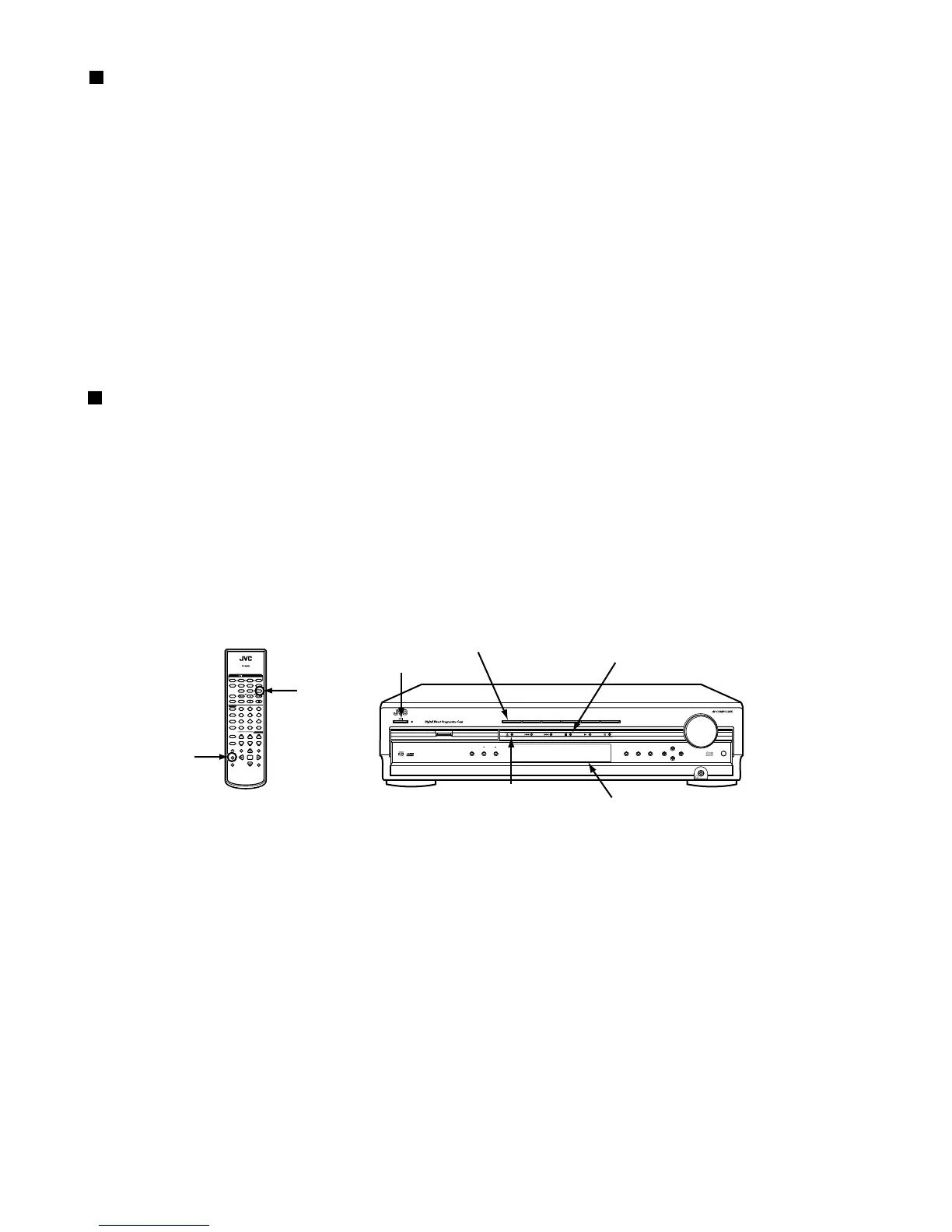

Initialization method of DVD section
When microprocessor ICs or pick-up has been replaces, initialize the
DVD player in the following manner.
POWER Button
DVD Button
(Initialize complete)
FL Display
OPEN/CLOSE
Button(Test mode)
STOP Button
(Test mode )
CHOICE Button
1.
2.
3.
4.
If tray is not completely close up, make power to standby frome on to close up the tray.
After confirming that tray is completely close up, pull off the power plug.
Insert the power plug to the outlet while pressing "STOP" and "DVD" Button at the same time to be
TEST Mode.
FL display indicates "TEST **" and "** (Area code)" is indicated at the upper left of the display.
** : Area code
Press "PAUSE" button to initialize.
When an indication of "ATT" is displayed, initialization finishes.
Push the POWER SW to be standby.
This player has a TEST MODE for product QC, service or repair. Contents are given as follows.
TEST MODE has the 4 different states. These are changed with the CHOICE key on
the remote controller. TEST MODE is canceled by the POWER key.
Insert the power plug to the outlet while pressing "STOP" and "DVD" buttons at the same time.
"** (Area code)" is indicated at the upper left of the display.
FL Display indicates " TEST ** ".
** : Area code .... Refer to (Fig, 1)
About TEST MODE
(Test mode)
1.
2.
3.
4.
The first: FL display shows the player firmware version.
Contents: [System firm] [Front End firm] [Back End firm]
The second: Indicator check mode. All FL segment and all LED light.
The third: Mechanism check mode. In this mode the player displays "CHECK".
The fourth: Front-end check mode. In this mode the FL displays "EXPERT".
Before implementing the TESE Mode please do the change to the mode of remote control the DVD Mode.
The operation of the remote control is because it is not produced
DVD
Button
(Test mode)
