Setting the DISP.SET selector

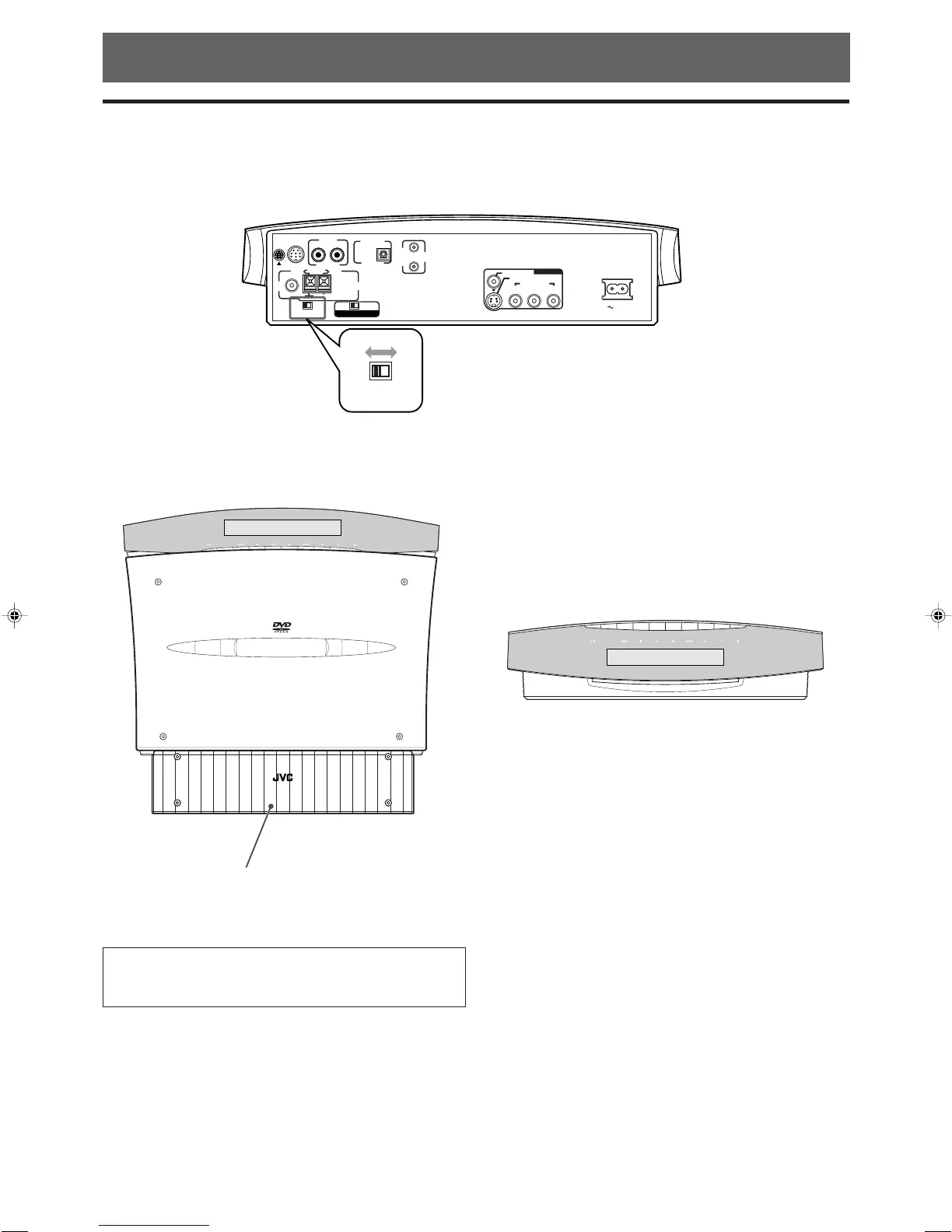

You can place the center unit either vertically (on the supplied stand) or horizontally (without the stand) as illustrated below.
Before installing the center unit, set the DISP.SET selector according to your selection.
• The position of the remote control sensor also changes according to this setting. See page 19.
VIDEO
S-VIDEO
Y
P
B P R
VIDEO OUT
COMPONENT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
R
L
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
VIDEO OUT SELECT
PAL NTSC
DISP.SET
HV
Getting started
7 When placing the center unit vertically:
Slide the DISP.SET selector to “V” (vertically).
7 When placing the center unit
horizontally:
Slide the DISP.SET selector to “H” (horizontally).
SOURCE
VOL
DVD DIGITAL CINEMA SYSTEM
TH-V70
ATT
RDS TA NEWS INFO
ATT RESUME
TUNED
STEREO AUTO MUTING
RDS TA NEWS INFO
SOURCE VOL
Stand (supplied)*
*To attach the stand, see page 9.
This manual explains operations using the illustrations of
the display window that are shown when the center unit is
placed vertically (the DISP.SET selector is set to “V”).
