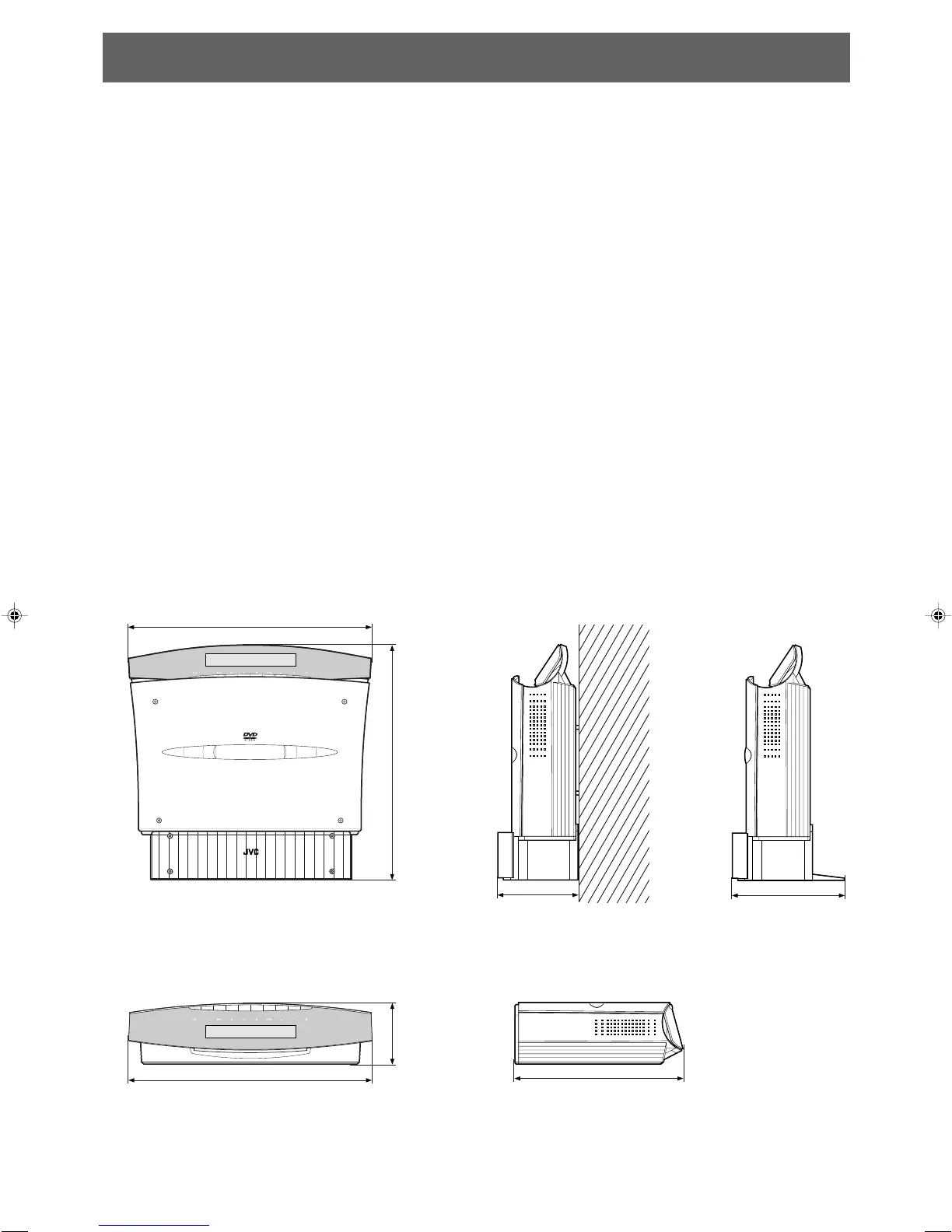

Dimensions for installation
Placed vertically
Placed horizontally
Specifications
7Center unit (XV-THV70)
Audio section
Total Harmonic Distortion 0.02 %
NOTE: This value is measured at System cord CONNECTOR for
reference.
Audio input sensitivity/Impedance (at 1 kHz)
Analog input:
AUX IN : 290 mV/47 kΩ
Digital input*:
DIGITAL IN (OPTICAL): –21 dBm to –15 dBm (660
nm ±30 nm)
* Corresponding to Linear PCM, Dolby Digital, and DTS
Digital Surround (with sampling frequency — 32 kHz,
44.1 kHz, 48 kHz)
Video section
Color System: NTSC/PAL selectable
Horizontal Resolution: 500 lines
Signal-to-Noise Ratio: 64 dB
Output Level
Composite: 1.0 V(p-p)/75 Ω
S-video-Y: 1.0 V(p-p)/75 Ω
S-video-C: 0.286 V(p-p)/75 Ω
Component-Y: 1.0 V(p-p)/75 Ω
Component-P
B/PR: 0.7 V(p-p)/75 Ω
SOURCE
VOL
DVD DIGITAL CINEMA SYSTEM
TH-V
70
(On a wall) (With the legs)
325 mm
301.5 mm
86 mm
105.5 mm 140 mm
325 mm
237 mm
Tuner section
Tuning Range
FM: 87.50 MHz – 108.00 MHz
AM: 531 kHz – 1 602 kHz
(at 9 kHz intervals)
530 kHz – 1 600 kHz
(at 10 kHz intervals)
General
Power Requirements: AC 230 V Ó, 50 Hz
Power Consumption: 23 W (at operation)
1.7 W (in standby mode)
Dimensions** (W × H × D): 325 mm × 86 mm × 237
mm
Mass**: 2.93 kg
** Without Stand and Legs
