~ Speakers
• When connecting the speaker cords, match the polarity of
the speaker terminals: transparent to (+) and transparent
with black stripe to (–).
Ÿ DAB antenna
For better DAB reception
• See also “To improve DAB reception” on page 19.
• DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom
of the speakers.

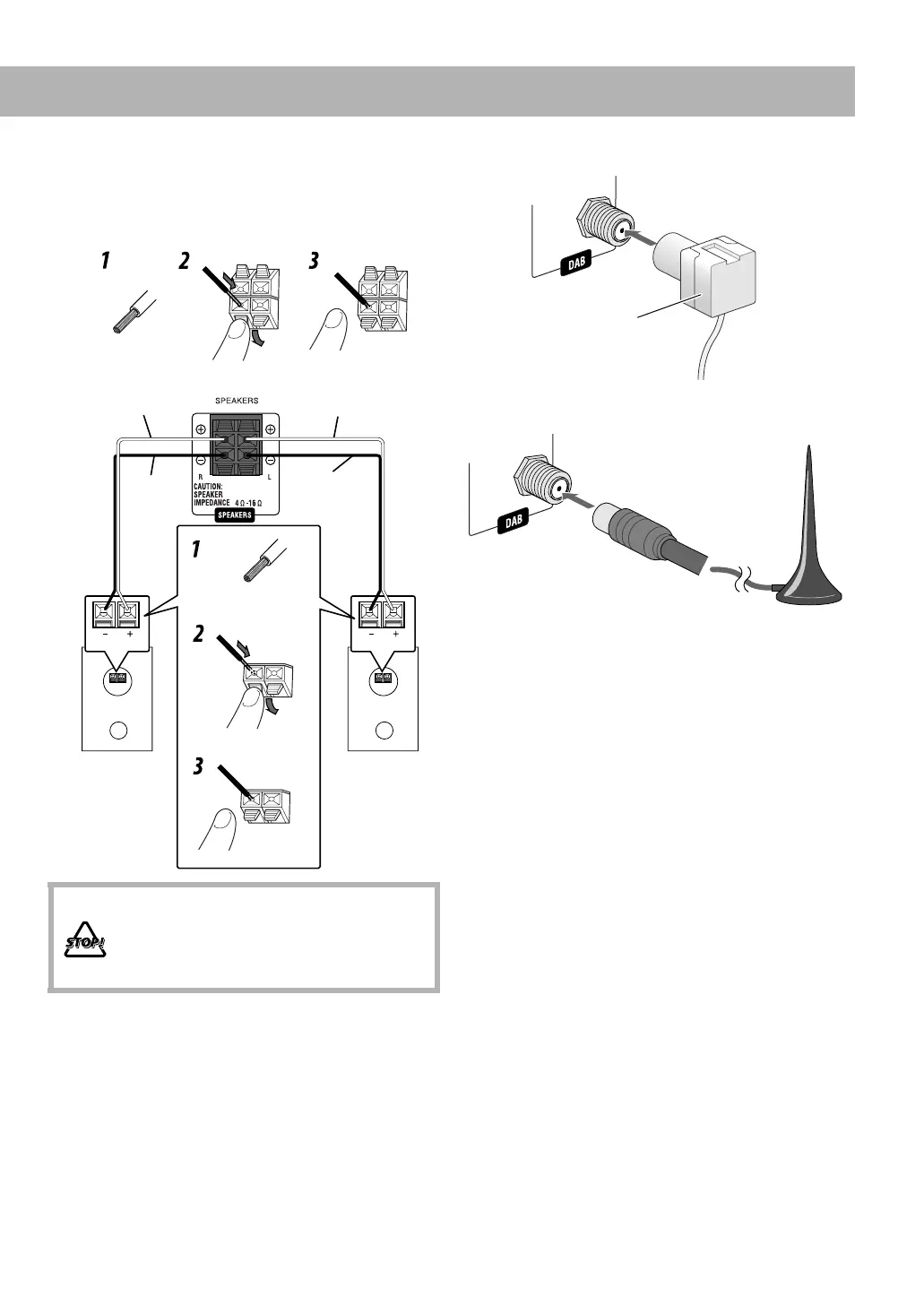

Left speaker
Transparent
Press and hold
Release
Insert
Transparent
with black
stripe
Transparent
Right speaker
Insert
Press and hold
Release
Transparent
with black
stripe
DAB antenna (supplied)
Extend the wire so that you can
receive your desired ensembles.
Active antenna
(not supplied)
