JVC SR-VS30U Service Manual

5-1
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the ! symbol are critical for safety. Replace only with specified part numbers.

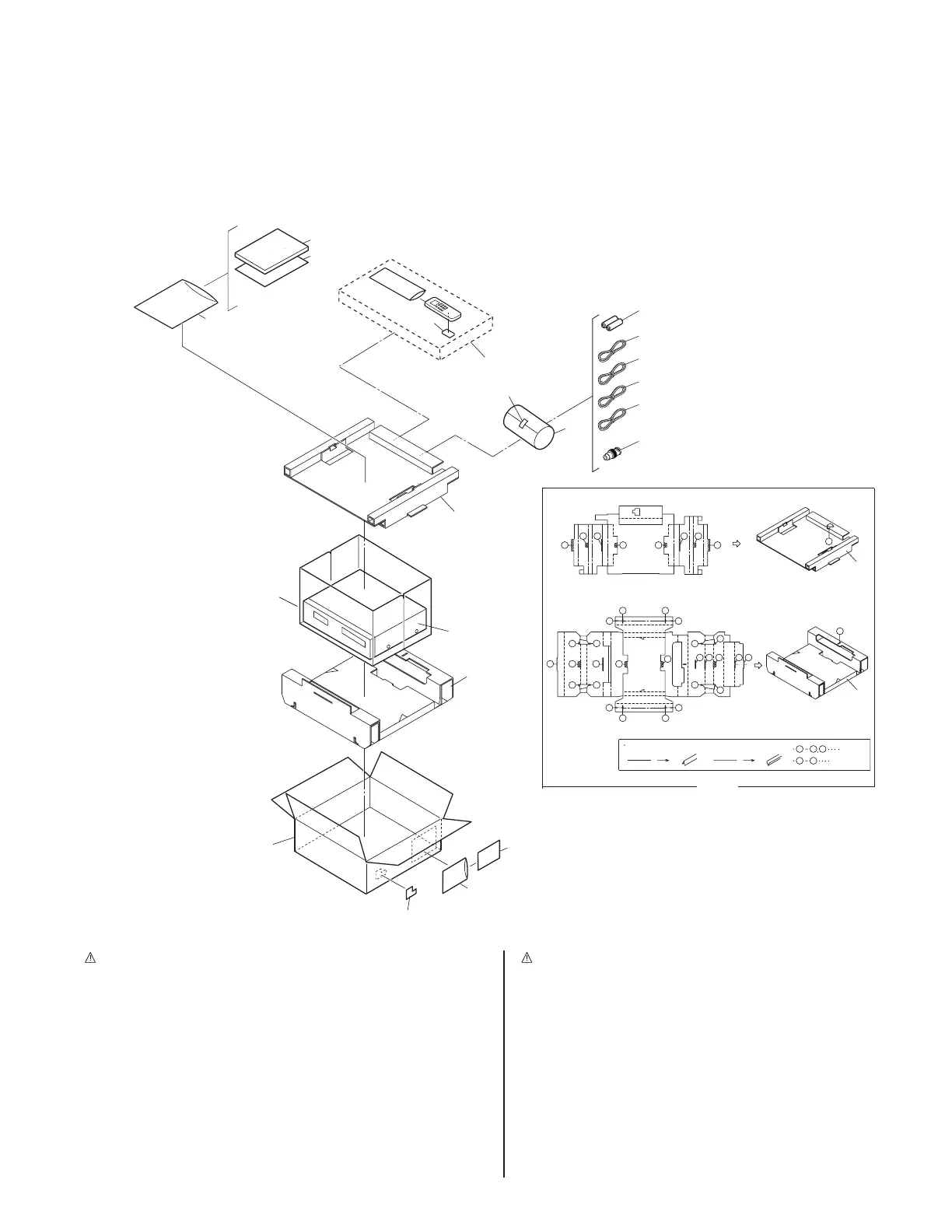

5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
301 LP31052-013A PACKING CASE
302 LP31053-001B CUSHION 1
303 PQM30021-105 POLY BAG
304 LP31054-001B CUSHION 2
306 LP20465-014A REMOTE CONTROLLER
306A LP40254-001B COVER(BATTERY)
307 – BATTERY,X2(“AA”TYPE)
308 QPC02202230P POLY BAG
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
! 310 LPT0680-001A INST.BOOK(EN)
! LPT0680-002A INST.BOOK(FR)
311 QPC02503530P POLY BAG
312 PEAC0294-04 RF CABLE
313 QAL0095-005 LED CABLE ASSY
314 QAM0310-001 CABLE ASSY(AUDIO/VIDEO)
315 QAM0004-002 S CABLE
316 BT-51010-2 WARRANTY CARD
317 PQ33909 POLY BAG
318 BT-51024-1 SER.NET CARD
320 QAM0259-001 ADAPTOR PLUG,X2
SPEC OF BARCODE
301
304
BEND AS SHOWN IN THE DRAWING.
FINAL ASSY <M2>
303
ADHESIVE TAPE
308
306
302
302
304
306A
318
310
311
INSERT
TUCK IN
(Fig.1)
(Fig.1)
Fig.1
B' F' E' A'
B
JD' J'D
Q'
QS
RP
K
LN
N'
S'
M'
ADZ
ES
R'
C' H GG'H'
C
M
L'K'
P'
FE
Z'
Z
A
307
312
313
314
315
320 x2
316
317
