JVC SR-VS30U

2-22

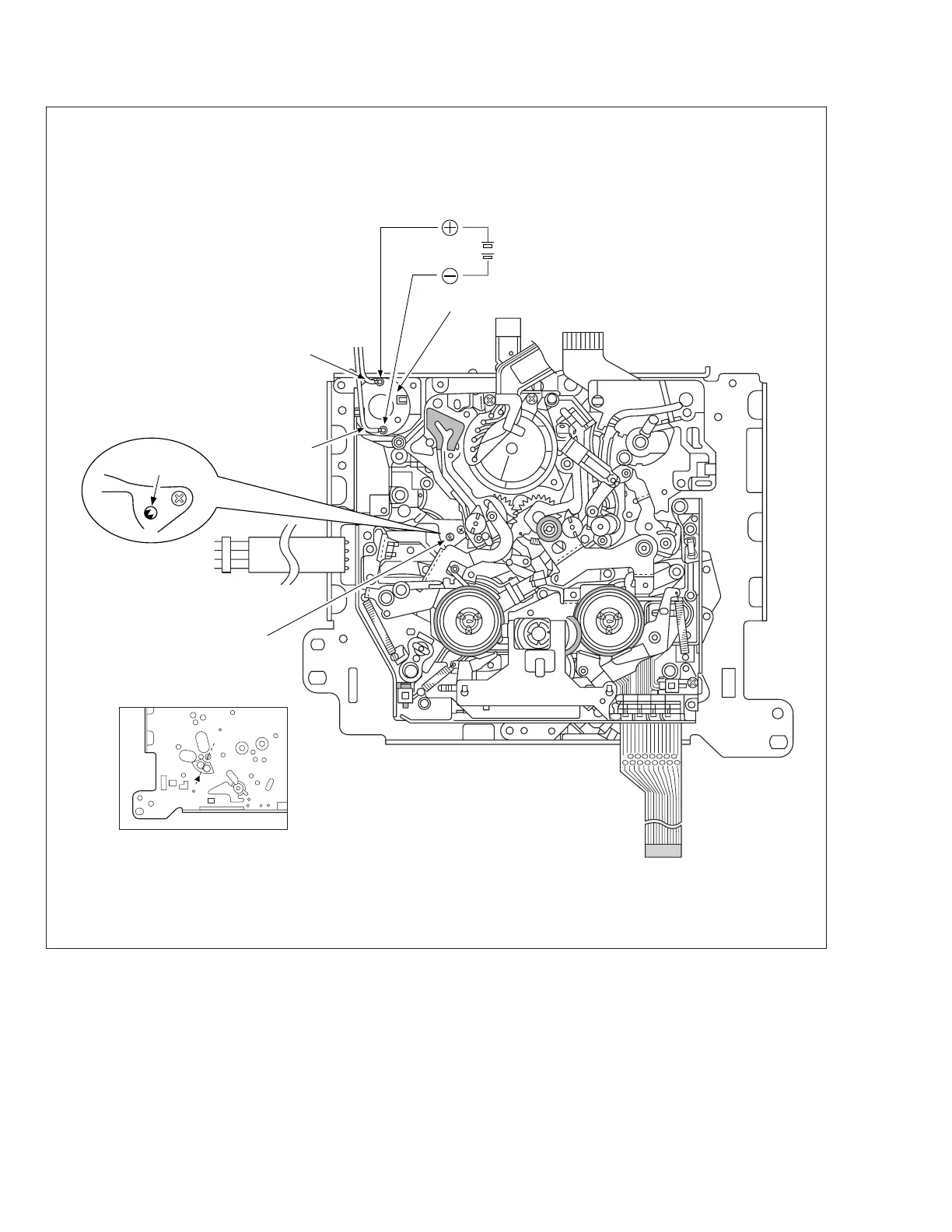

2. Setting/checking the ASSEMBLY mode
Motor Bracket Assembly (Loading Motor)
Wire (Brown)
Wire (Red)
DC 3 V
Rotary Encoder
Marking
(Colored red)
H
C
< ASSEMBLY >
Note:
• In this ASSEMBLY mode, only the 2
gear teeth of the rotary encoder are
marked (red coloring).
Fig. 2-5-7
