JVC TH-A25 Service Manual

1-8 (No.MB141)

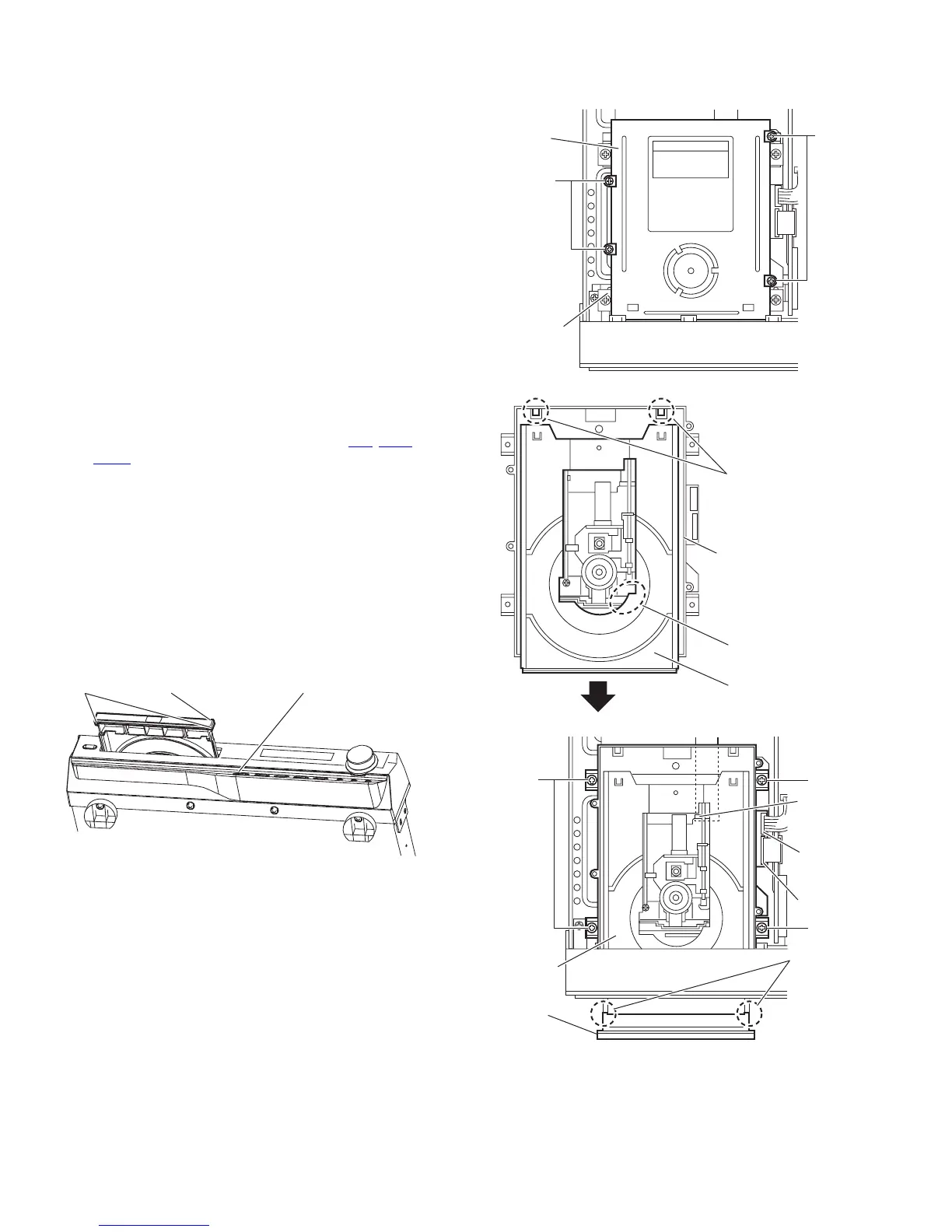

3.1.2 Removing the tray door
(See Figs.3 to 6)
• Prior to performing the following procedures, remove the top
cover.
• The following procedures are performed in the case of power
on.
(1) From the front side of the main body, push the disk open
bottom and eject the disc tray. (See Fig.3)
(2) Release the joints a in the upward direction and take out
the tray door. (See Fig.3)
NOTE:
The following procedures are performed in the case of power
off.
(1) From the top side of the main body, remove the four
screws C attaching the DVD top cover. (See Fig.4)
(2) Take out the disc tray in the direction of the arrow while
lifting the section b. (See Fig.5)
(3) Release the joints a in an upward direction and take out
the tray door. (See Fig.6)
(4) Remove the four screws D attaching the DVD mecha-
nism assembly. (See Fig.6)
(5) Disconnect the wires from the connectors AJ1
, AJS1 and
PCN1
on the DVD mechanism assembly, and take out
the DVD mechanism assembly. (See Fig.6)
(6) Push in the disc tray while lifting the section b. (See
Fig.5)
Reference:
• When pushing in the disc tray, push it until the posi-
tion of the claw c. (See Fig.5)
(7) Attach the DVD top cover with the four screws C to the
DVD mechanism assembly.
Reference:
• Attaching method of the DVD mechanism assembly
refers to the section 3.1.3.
Fig.3
Fig.4
Fig.5
Fig.6
Joints a Disk open buttonTray door
C
C
DVD
mechanism
assembly
DVD
top cover
Section b
Claws c
DVD mechanism
assembly
Disk tray
Tray door
Joints a
PCN1
AJ1
AJS1
D
D
DVD
mechanism
assembly
D
