JVC TH-M42 Service Manual

1-14 (No.MB067)

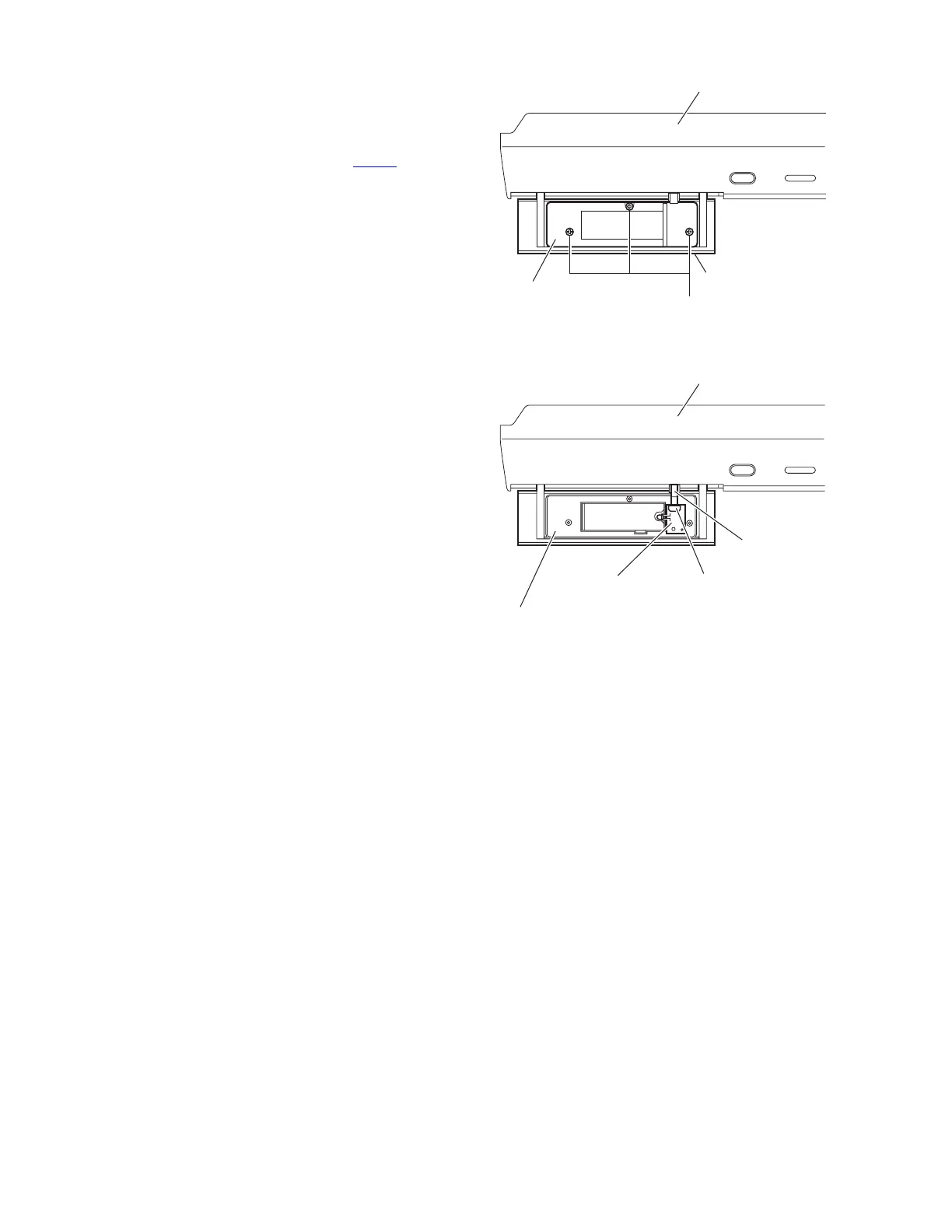

3.1.12 Removing the illumination board
(See Figs.17 and 18)
(1) Open the door assembly of the front panel assembly and
remove the three screws X attaching the door cover to the
door assembly. (See Fig.17.)
(2) Disconnect the card wire from the connector CN551
on the
illumination board. (See Fig.18.)
(3) Take out the illumination board from the door assembly.
Fig.17
Fig.18
X
Door assembly
Front panel assembly
Door cover
Door assembly
Illumination board CN551
Card wire
Front panel assembly
