JVC TH-M42 Service Manual

3-7

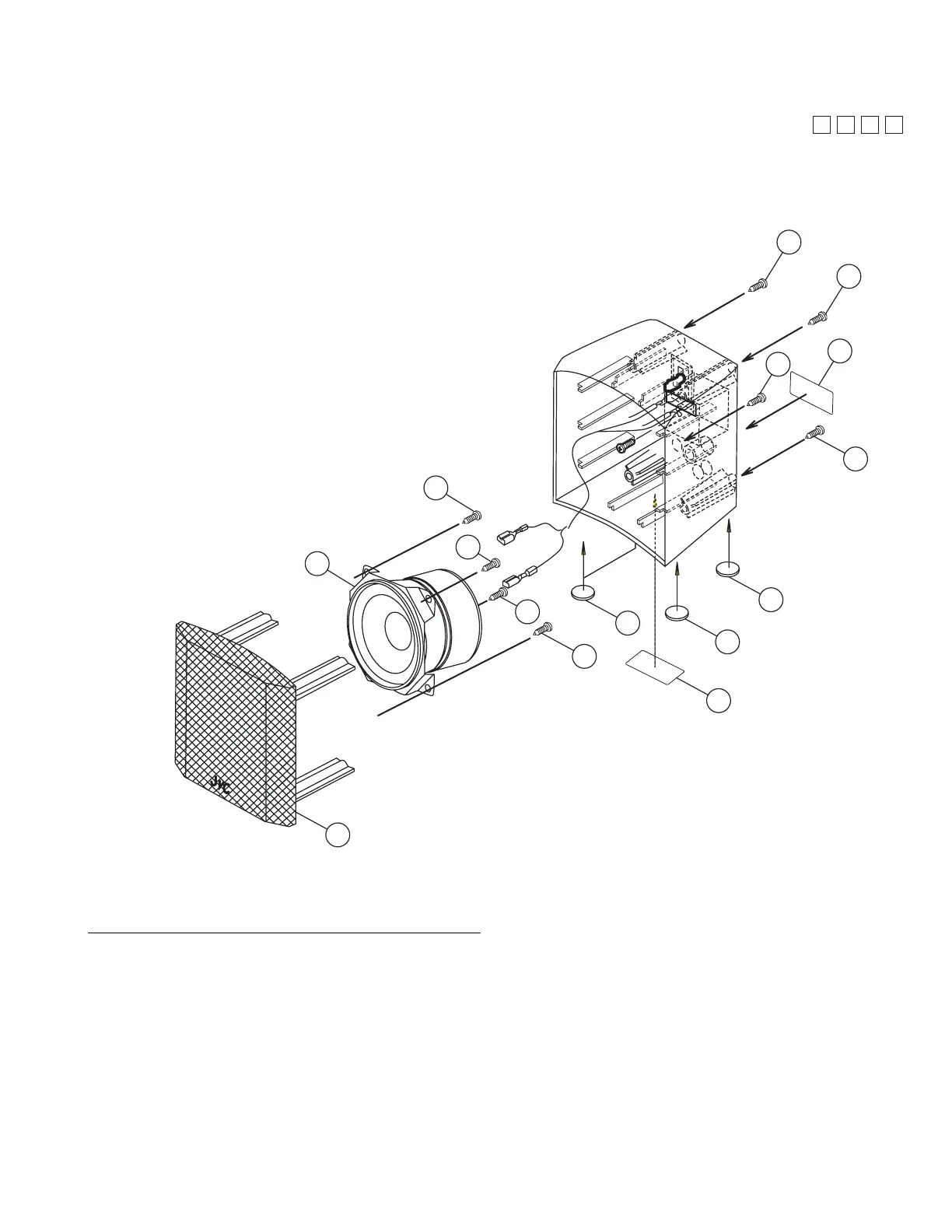

Speaker assembly and parts list
Speaker (Front speaker,Center speaker,Surround speaker)
Block No. [M][6][M][M]
Block No.
M
M
M
6
(Front speaker,Center speker,Surround speaker)
4
2
1
3
3
3
3
5
5
5
4
4
4
6
7
 Symbol No. Part No. Part Name Description Local
1 99-077-010-01 NET ASSY (x5)
2 KK077010-01 SPEAKER FRONT/CENTER(x3)
2 KK077011-01 SPEAKER SURROUND(x2)
3 70-010-408-01 SCREW (x20)
4 70-017-412-01 SCREW (x20)
5 90-000-053-61 FOOT (x20)
6 60-001-977-01 LABEL(BLUE) FRONT(x2)
6 60-001-975-01 LABEL(YELLOW) CENTER
6 60-001-976-01 LABEL(WHITE) SURROUND(x2)
7 60-001-978-01 RATING LABEL CENTER
7 60-001-979-01 RATING LABEL SURROUND(x2)
7 60-001-983-01 RATING LABEL FRONT(x2)
