3.1.2 Removing the front panel assembly
(See Figs.5 and 6)
• Remove the metal cover.
(1) From the top side of the main body, disconnect the parallel
wires from the connectors (CN408
, CN409) on the main
board. (See Fig.5.)
(2) Disconnect the card wire from the connector CN407
on the
main board. (See Fig.5.)
(3) From the bottom side of the main body, remove the three
screws C attaching the front panel assembly. (See Fig.6.)
(4) Release the two hooks b and hook c from the both and bot-
tom sides of the main body, and remove the front panel as-
sembly in the direction of the arrow. (See Figs.5 and 6.)

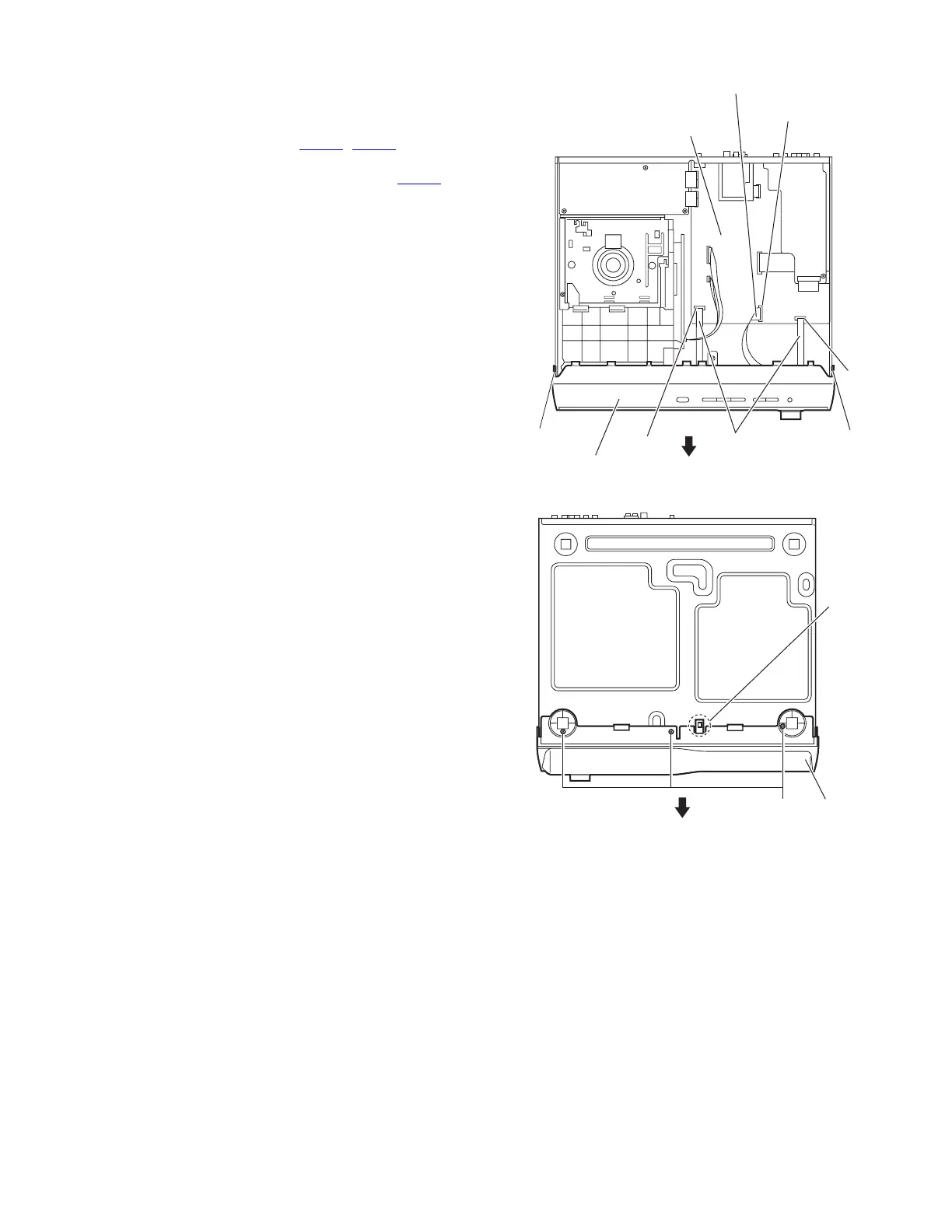

Fig.5
Fig.6
CN407
CN409
CN408
Hook b
Hook b
Main board
Parallel wires
Front panel assembly
Card wire
Hook c
Front panel
assembly
C
