(No.MB187)1-11
3.1.6 Removing the tuner assembly
(See Figs.10 and 11)
• Remove the metal cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN1
on the tuner assembly. (See
Fig.10.)
(2) From the back side of the main body, remove the screw G
attaching the tuner assembly to the rear panel. (See
Fig.11.)
(3) Take out the tuner assembly from the main body.
3.1.7 Removing the scart terminal board [B/E/EN/EV/EE
version]
(See Figs.10 and 11)
• Remove the metal cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN340
on the scart terminal board.
(See Fig.10.)
(2) From the back side of the main body, remove the two
screws H attaching the scart terminal board to the rear pan-
el. (See Fig.11.)
(3) Take out the scart terminal board from the main body.

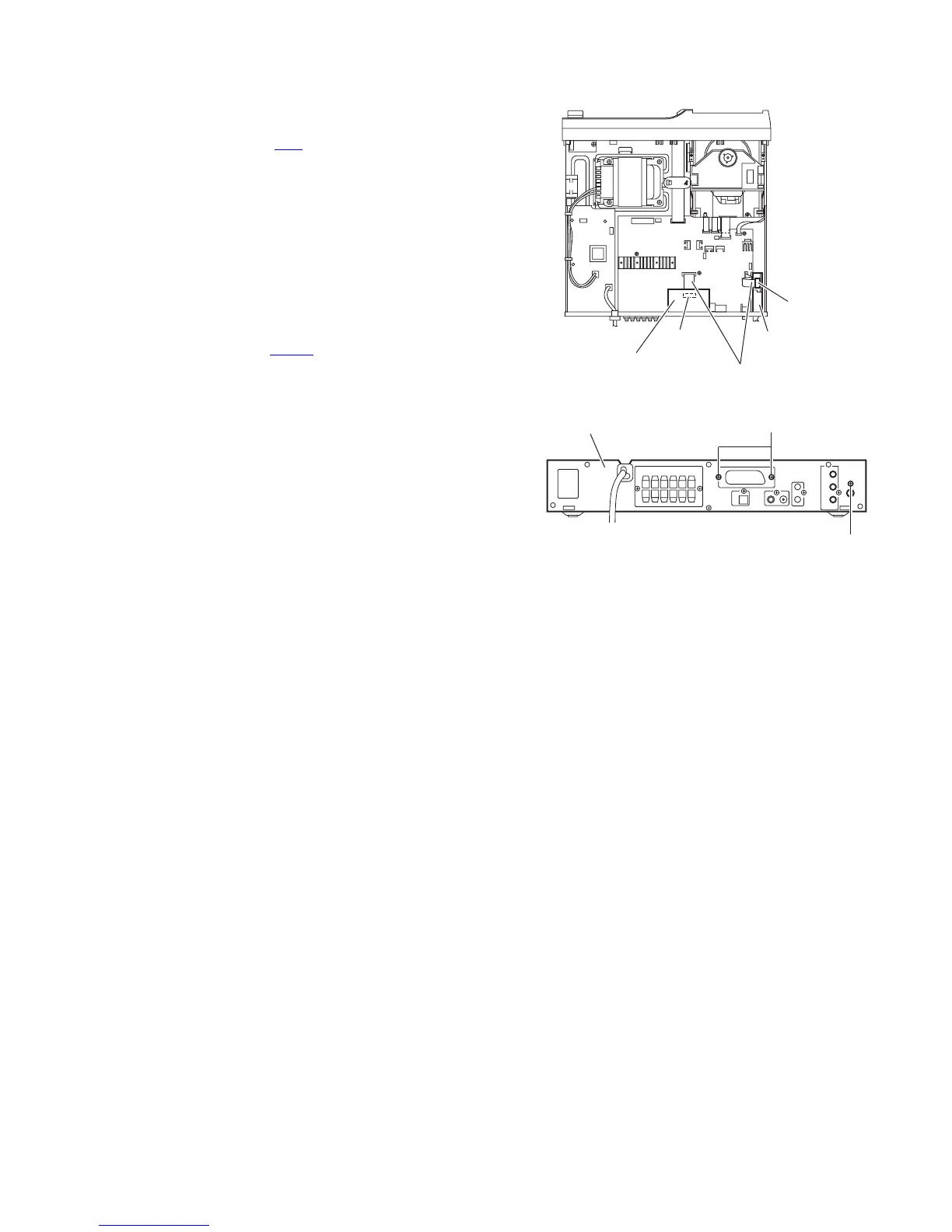

Fig.10
Fig.11
CN340
Scart terminal board
Card wires
CN1
Tuner assembly
H
Rear panel
G
To Next Page
