JVC TH-S3 Service Manual

(No.MB187)1-13

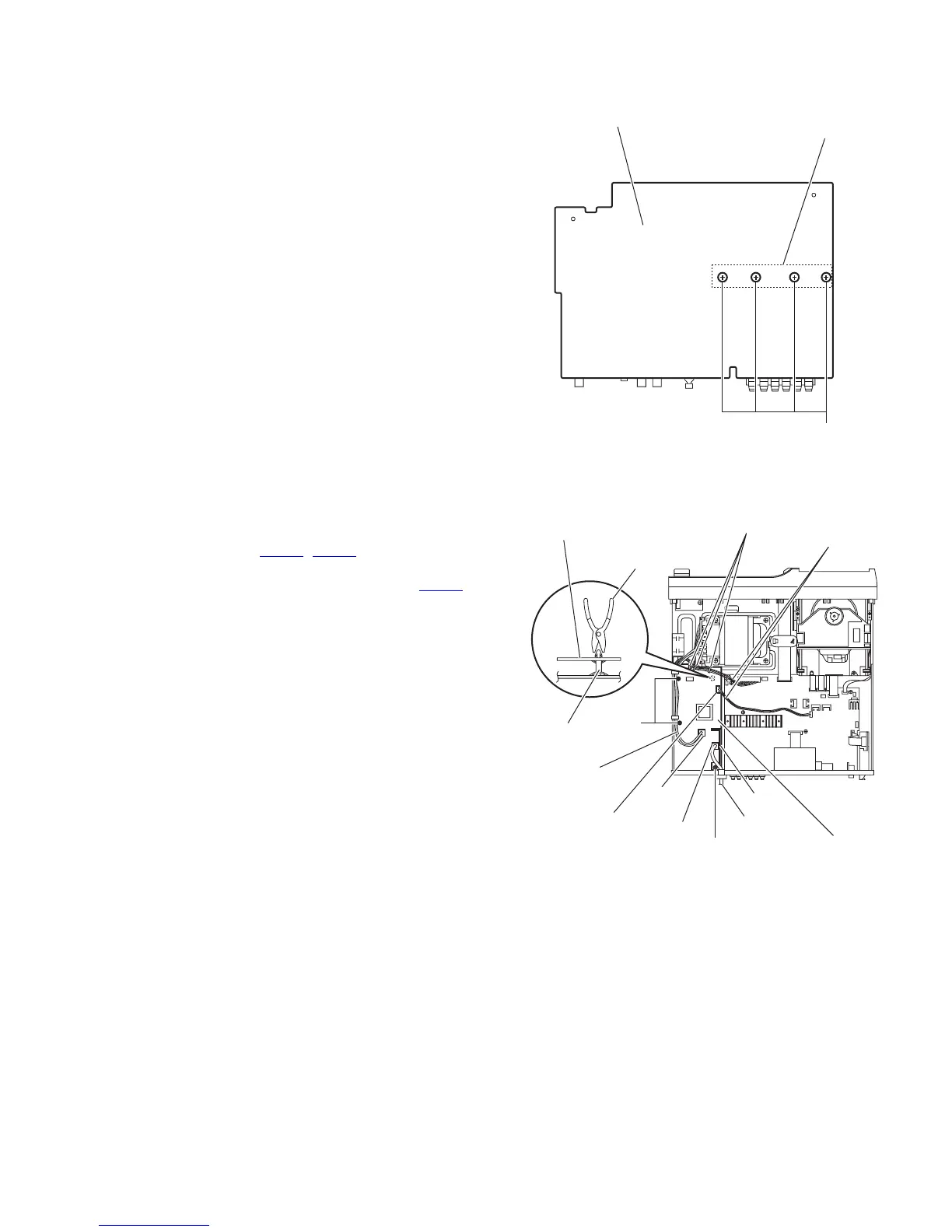

3.1.9 Removing the heat sink
(See Fig.14)
• Remove the metal cover and main board.
From the reverse side of the main board, remove the four
screws L attaching the heat sink.
Fig.14
3.1.10 Removing the transformer board
(See Fig.15)
• Remove the metal cover.
(1) From the top side of the main body, disconnect the wires
from the connectors (CN952
, CN953) on the transformer
board.
(2) Disconnect the power cord from the connector CN950 on
the transformer board.
(3) Remove the wire holders bundling the wires.
Reference:
After attaching the transformer board, bundle the wires
with the wire holders as before.
(4) Remove the two screws M and screw M’ attaching the
transformer board.
Reference:
When attaching the screw M’, attach the shield with it as
before.
(5) Release the holder using a pliers and take out the trans-
former board from the main body.
Fig.15
L
Heat sink
Main board
CN952
M
Power cord
M'
CN950
Wire
Transformer board
Wires
CN953
Wire holders
Holder
Pliers, etc.
Transformer board
Shield
