JVC TH-S3 Service Manual

1-14 (No.MB187)
3.1.11 Removing the power transformer
(See Fig.16)
• Remove the metal cover.
(1) From the top side of the main body, remove the tie bands
and wire holders bundling the wires.
(2) Disconnect the wire from the connector CN952
on the
transformer board.
(3) Disconnect the wire from the connector CN901
on the main
board.
Reference:
After connecting the wires to the connector, bundle the
wires with the wire holders and new tie bands as before.
(4) Remove the four screws N and take out the power trans-
former from the main body.
3.1.12 Removing the fan motor
(See Figs.16 and 17)
• Remove the metal cover.
(1) From the top side of the main body, remove the wire hold-
ers bundling the wires. (See Fig.16.)
(2) Disconnect the wire from the connector CN190
on the main
board. (See Fig.16.)
(3) From the right side of the main body, remove the two
screws P and take out the fan motor from the chassis
base. (See Fig.17.)
Reference:
After connecting the wire to the connector CN190
, bundle the
wires with the wire holders as before. (See Fig.16.)

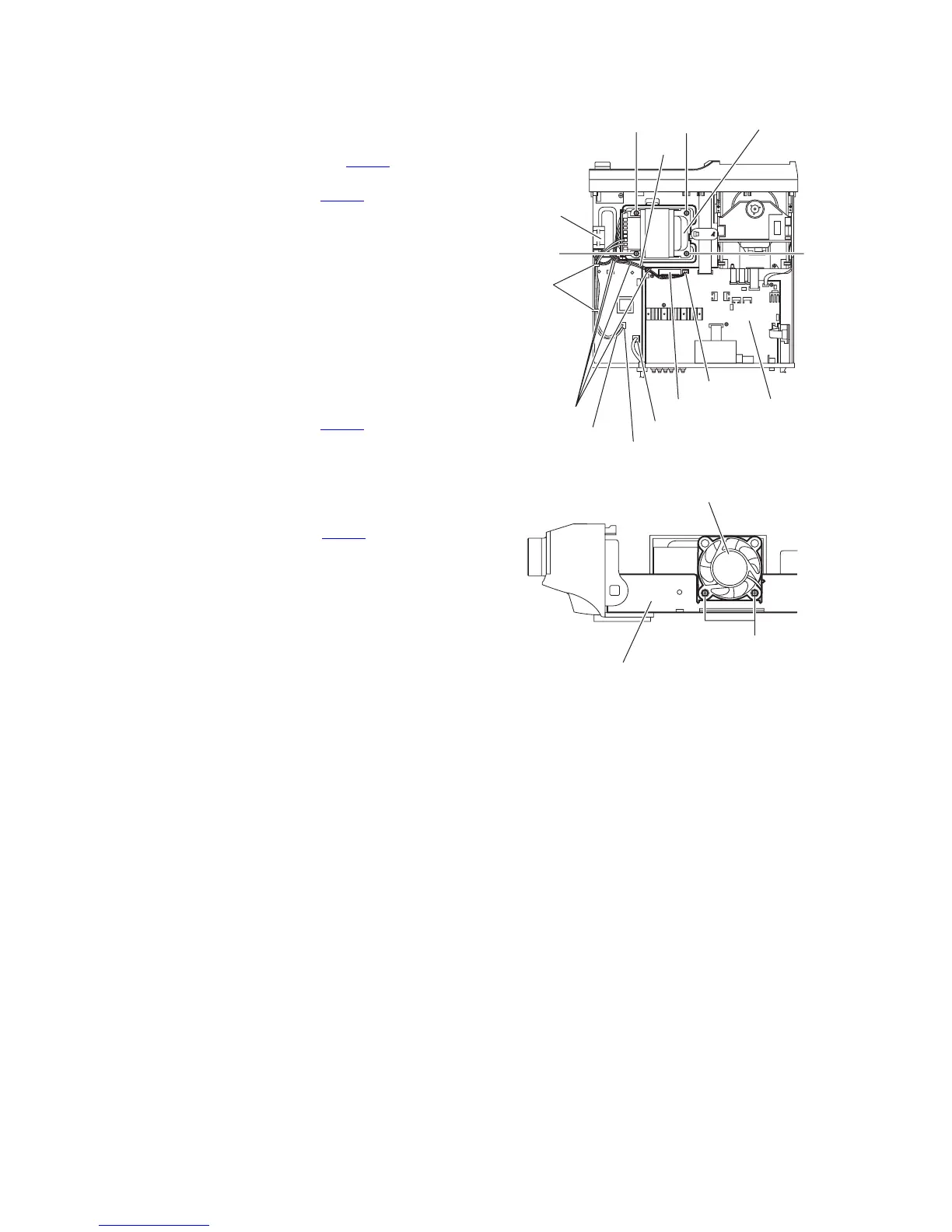

Fig.16
Fig.17
CN952
Wire holders
Wire
Transformer board
CN901
CN190
Tie bands
Main board
Fan
N
N
N
Power transforme
r
N
Wires
Chassis base
Fan motor
P
