(No.MB187)1-15

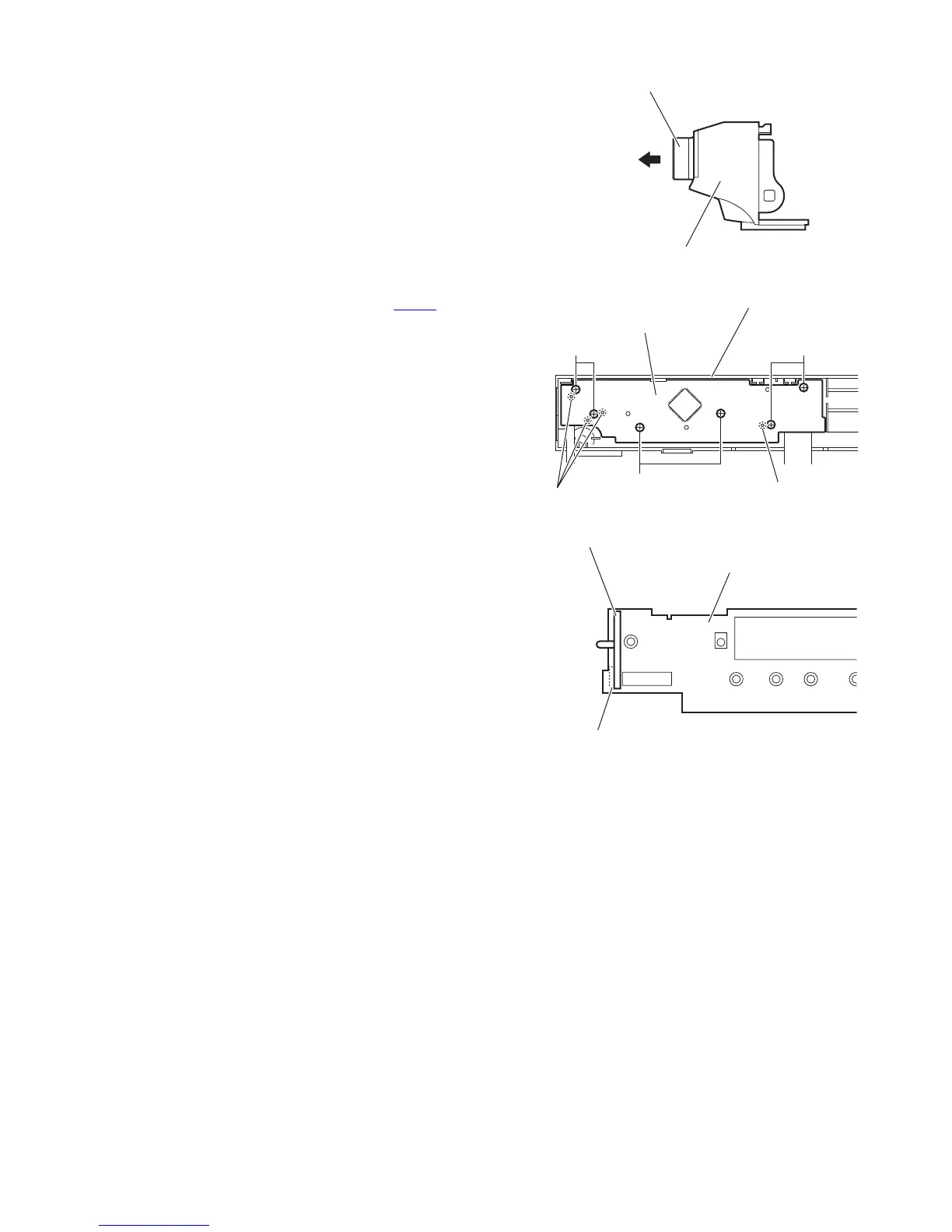

3.1.13 Removing the front board and LED illuminate board
(See Figs.18 to 20)
Remove the metal cover and front panel assembly.
(1) From the front side of the front panel assembly, pull out the
volume knob in the direction of the arrow. (See Fig.18.)
(2) From the inside of the front panel assembly, remove the six
screws Q attaching the front board. (See Fig.19.)
(3) Take out the front board from the front panel assembly.
Reference:
When attaching the front board, align the projections i of
the front panel assembly to the holes of the front board.
(See Fig.19.)
(4) From the forward side of the front board, disconnect the
LED illuminate board from the connector CN451
on the
front board. (See Fig.20.)
Fig.18
Fig.19
Fig.20
Front panel assembly
Volume knob
Q
Front board
Front panel assembly
Q
Q
i
i
Front board
LED illuminate board
CN451
