(No.MB260)1-25
3.4.11 Removing the net assembly
(See Figs.16 and 17)
(1) From side of the speaker main body, insert the tip of the
flat-bladed screwdriver or similar tool into the space be-
tween the speaker main body and net assembly, and lift the
net assembly little by little to remove. (See Fig.16)
Note:
To prevent damaging the net assembly and speaker
main body, insert cushioning plates etc. and below the
tip of the flat-bladed screwdriver or similar tool.
(2) From right side of the speaker main body, release the eight
joint c, and take out the net assembly from the speaker
main body. (See Fig.17)

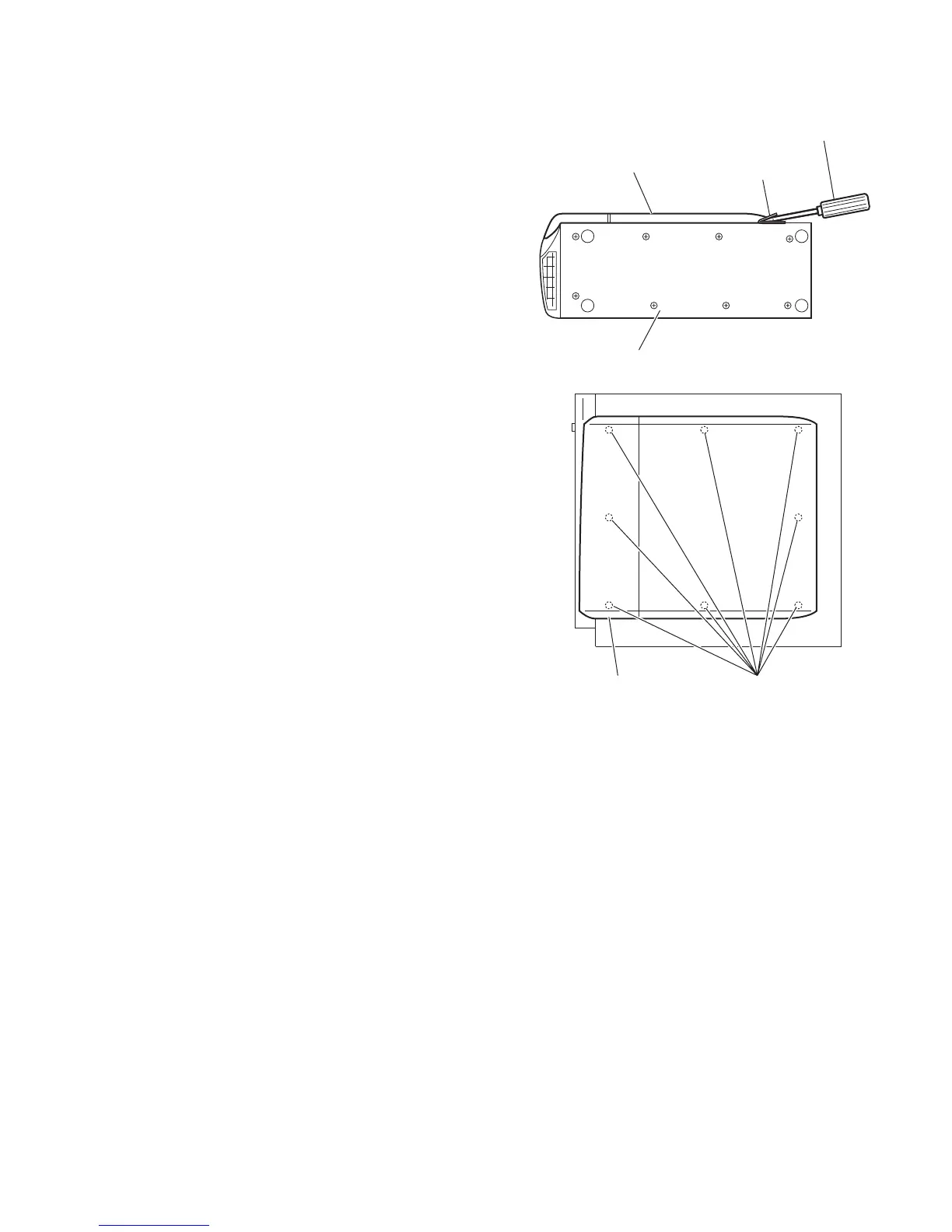

Fig.16
Fig.17
Net assembly
Flat-bladed
screwdriver,etc.
Cushioning
plate,etc.
Speaker main body
Net assembly
Joint c
