3.4.12 Removing the cone speaker
(See Figs.18 and 19)
• Prior to performing the following procedure, remove the net as-
sembly.
(1) From right side of the speaker main body, remove the four
screws Q attaching the cone speaker. (See Fig.18)
(2) Take out the cone speaker from the speaker main body.
(See Fig.19)
(3) Disconnect the wires from the terminal of the cone speak-
er. (See Fig.19)

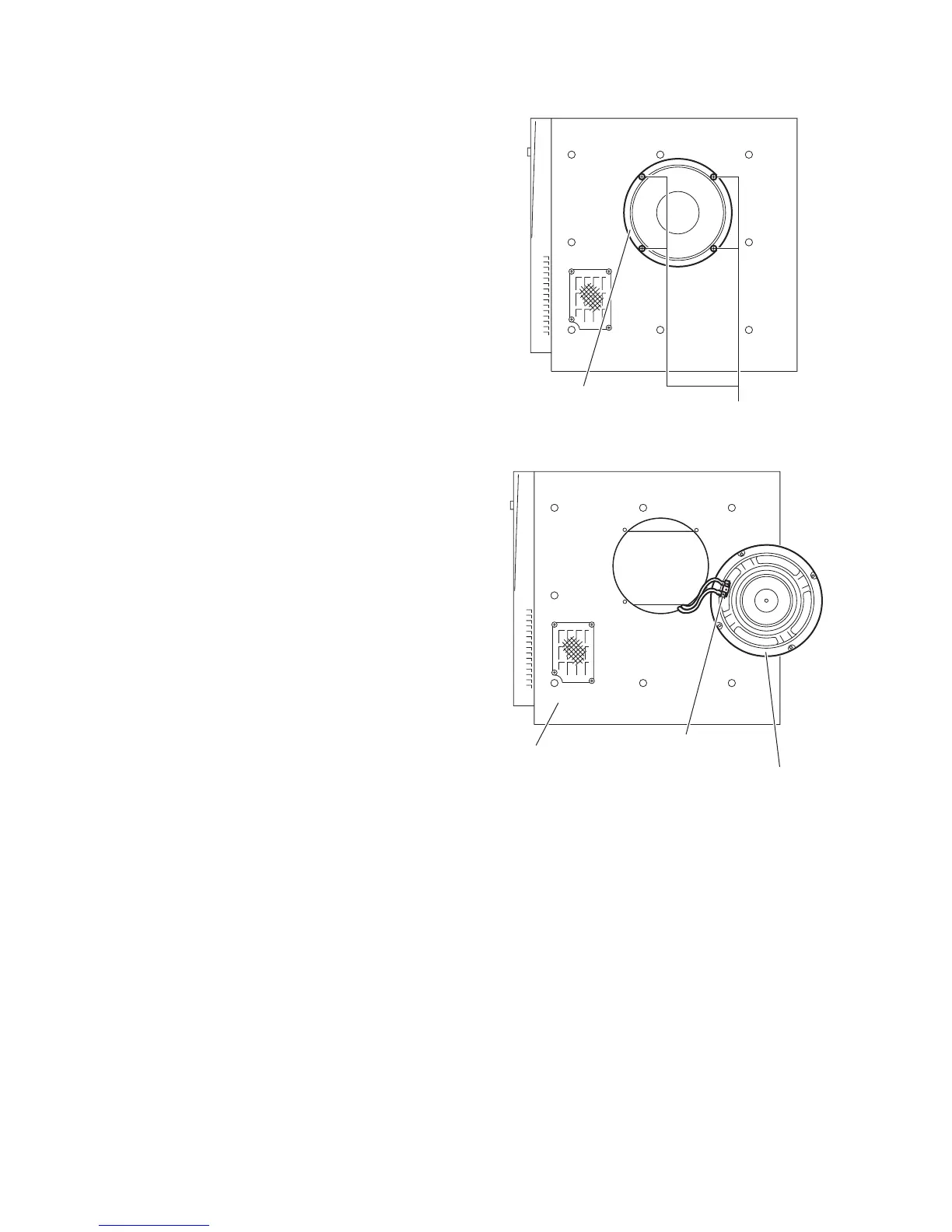

Fig.18
Fig.19
Cone speaker
Q
Cone speaker
Terminal
Speaker main body
