TM-H140PN
■

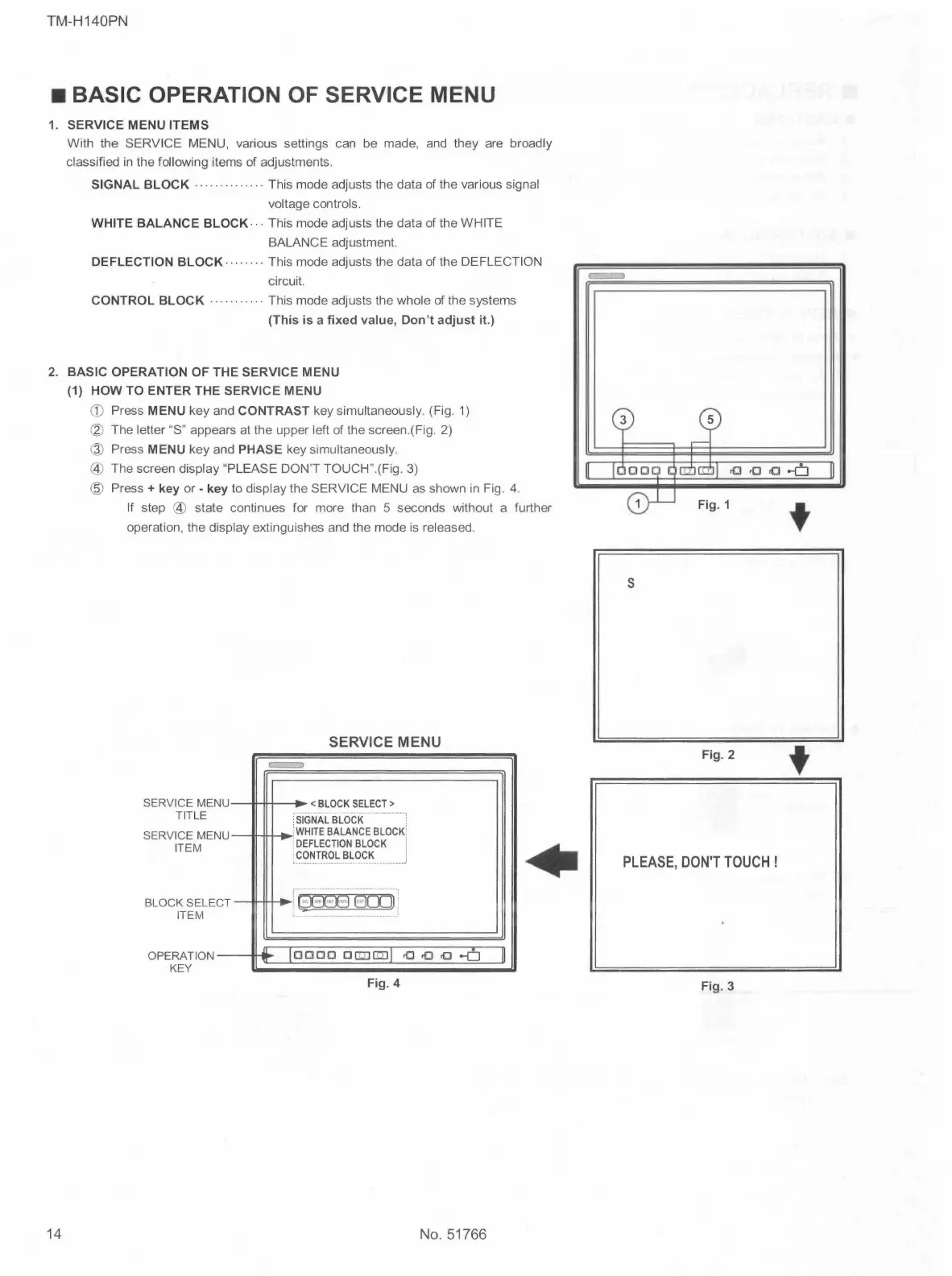

BASIC OPERATION OF SERVICE MENU
1. SERVICE MENU ITEMS
With the SERVICE MENU, various settings can be made, and they are broadly
classified in the following items of adjustments.
SIGNAL BLOCK ........ .. .... This mode adjusts the data of the various signal
voltage controls .
WHITE BALANCE BLOCK-·. This mode adjusts the data of the WHITE
BALANCE adjustment.
DEFLECTION BLOCK .. ··· ... This mode adjusts the data of the DEFLECTION
circuit.
CONTROL BLOCK .... . ... ... This mode adjusts the whole of the systems
(This is a fixed value, Don't adjust it.)
2. BASIC OPERATION OF THE SERVICE MENU
(1) HOW TO ENTER THE SERVICE MENU
(D Press MENU key and CONTRAST key simultaneously . (Fig. 1)
(2) The letter "S" appears at the upper left of the screen.(Fig. 2)
® Press MENU key and PHASE key simultaneously.
@ The screen display "PLEASE DON'T TOUCH ".(Fig. 3)
® Press+ key or - key to display the SERVICE MENU as shown in Fig. 4.
If step @ state continues for more than 5 seconds without a further
operation, the display extinguishes and the mode is released.
SERVICE MENU
SERVICE MENU--11---H-+----t:;:- < BLOCK SELECT>
TITLE :SIGNAL BLOCK
SERVICE MENU - 'WHITE BALANCE BLOCK
ITEM - : DEFLECTION BLOCK
• CONTROL BLOCK
•
BLOCK SELECT--:::- ! G888 am _,:
ITEM
OPERA T 10 N --H~-I
mm
□
□
m::rn:ri I r0 ,a ,a -o
KEY ._..__-_-;_"'";_-_-_-;_-;_-;_-;_-;_-;_-;_-;_-;:,-;,-;,-;,~;;;;;;;;;;;:;:;;;;~_,
s
Fig. 2
PLEASE, DON'T TOUCH !
Fig. 4 Fig. 3
14 No. 51766
t
t
To Next Page
